1. Specifications

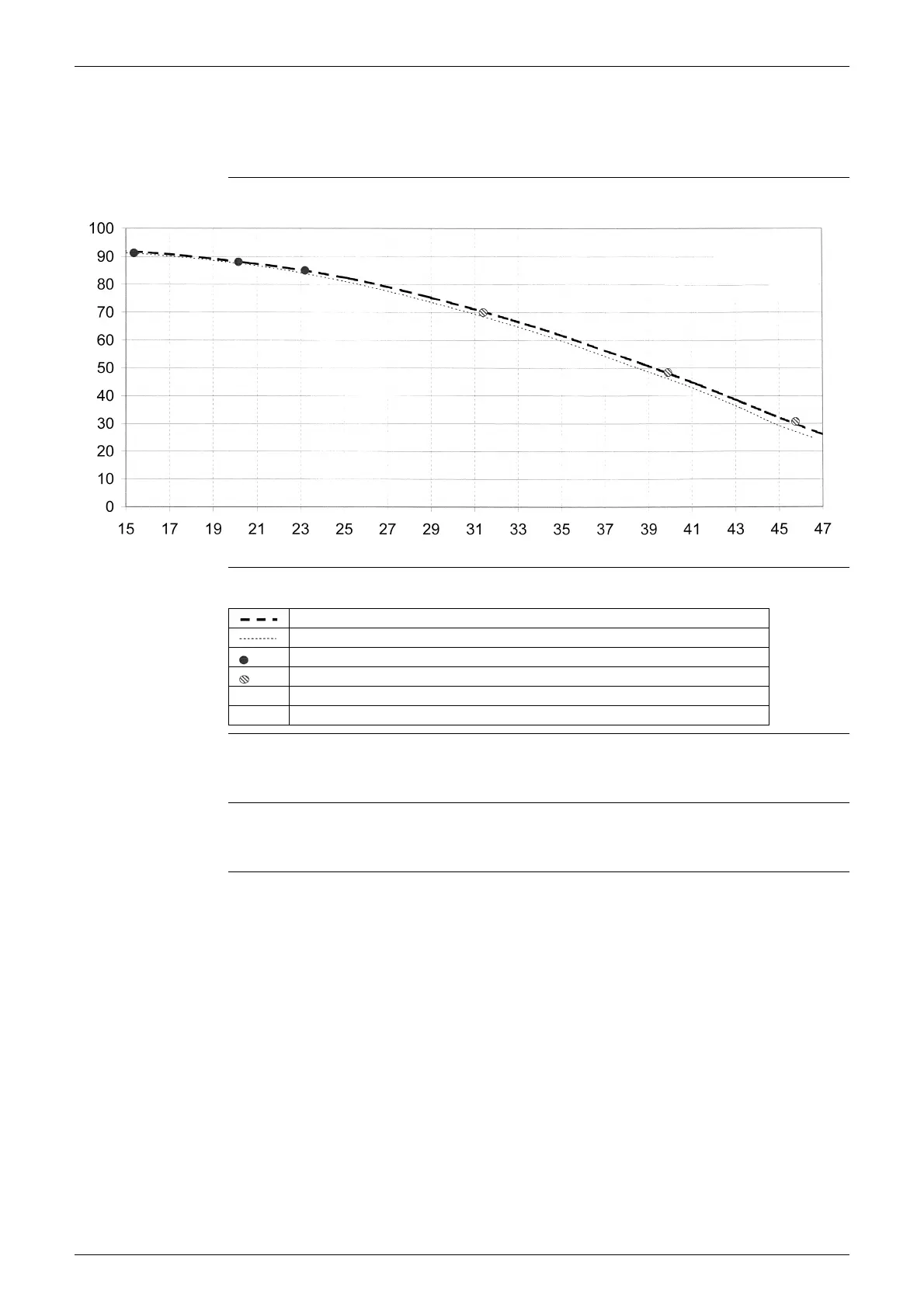

1.1 ESP Curves
EKHBRD 011/014/016 AA/AB1AC (U1/Y1)
Legend
Remark
The ESP curves graph is valid at maximum pump rpm (rotations per minute). The pump of the indoor module is
inverter controlled and will adjust its rpm as to control a fixed T between return leaving water temperature.
Warning
Selecting a flow outside the curve can cause damage to or malfunction of the unit. See also minimum and
maximum allowed water flowrange.
3TW59859-6
11kW
14kW
16kW
11kW
14kW
16kW
.
Unit ESP without 3-way valve
.
Unit ESP including 3-way valve
.
Max. ESP if T = 10°C
.
Max. ESP if T = 5°C
ESP [kPa]
External static pressure (kPa)
Flow [l/min]
Flow (l/min)

Daikin Altherma HT Specifications

General

Type	Air-to-water heat pump
Refrigerant	R-410A
Water Outlet Temperature	Up to 80°C
Operating Temperature Range	-20°C to 35°C
Power Supply	3-phase, 400V
Energy Efficiency Class (Heating)	A++
