Installing the base cover
Steps
1. Align the edges of the base cover with the laptop and press until it clicks into place.
2. Tighten the screws to secure the base cover to the laptop.
3. Follow the procedure in After working inside your computer.
Battery
Removing the battery
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.

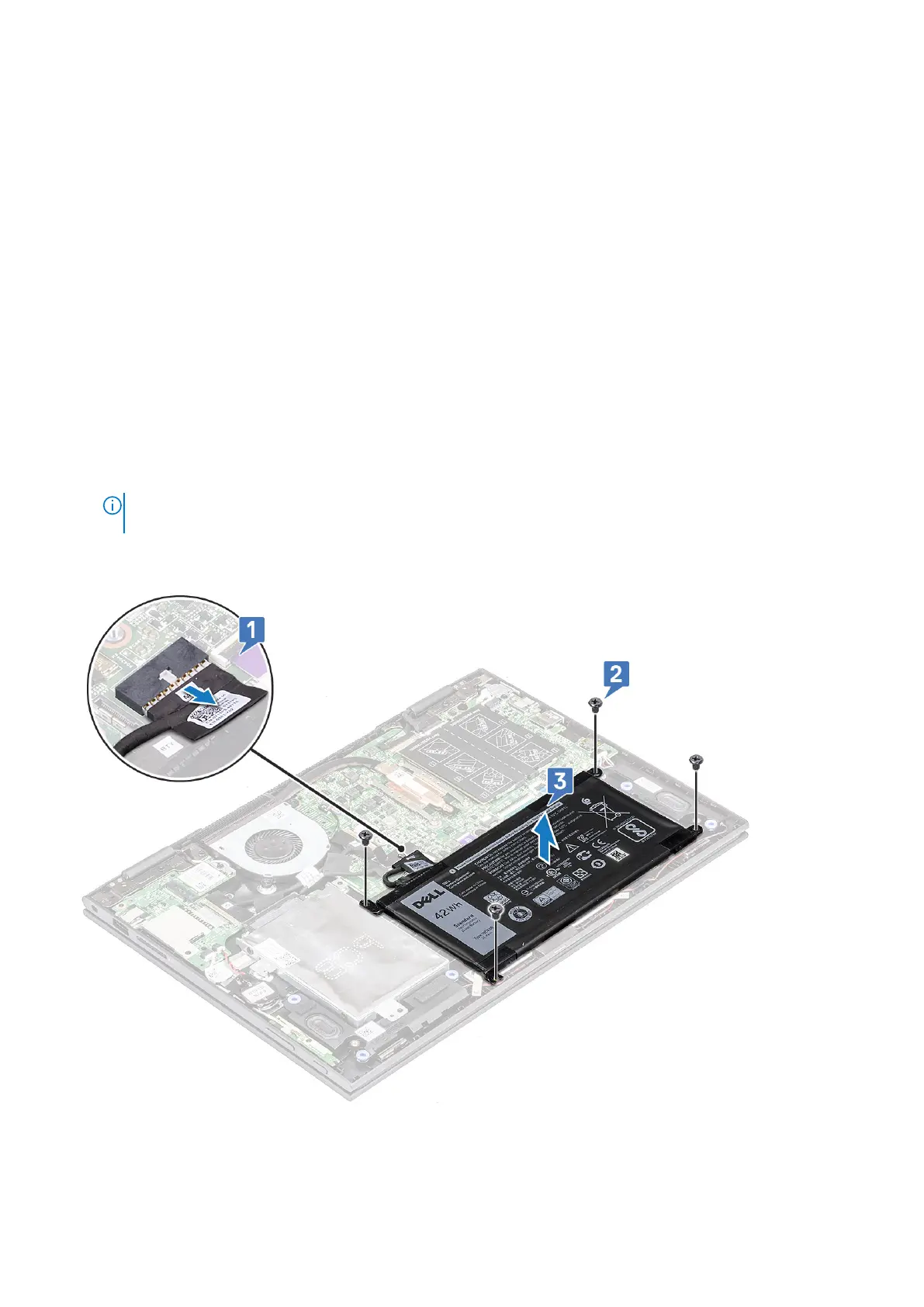

3. To remove the battery:
a. Disconnect the battery cable from the connector on the system board [1].
NOTE: Ensure to pull the battery cable from the connector by the head of the connector label, to avoid damage to
the PIN.
b. Remove the M2x3 screws (4) that secure the battery to the laptop [2].
c. Lift the battery away from the laptop [3].
Removing and installing components
11
