a. battery
b. base cover
4. Follow the procedure in After working inside your computer.
LED board
Removing the LED board
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

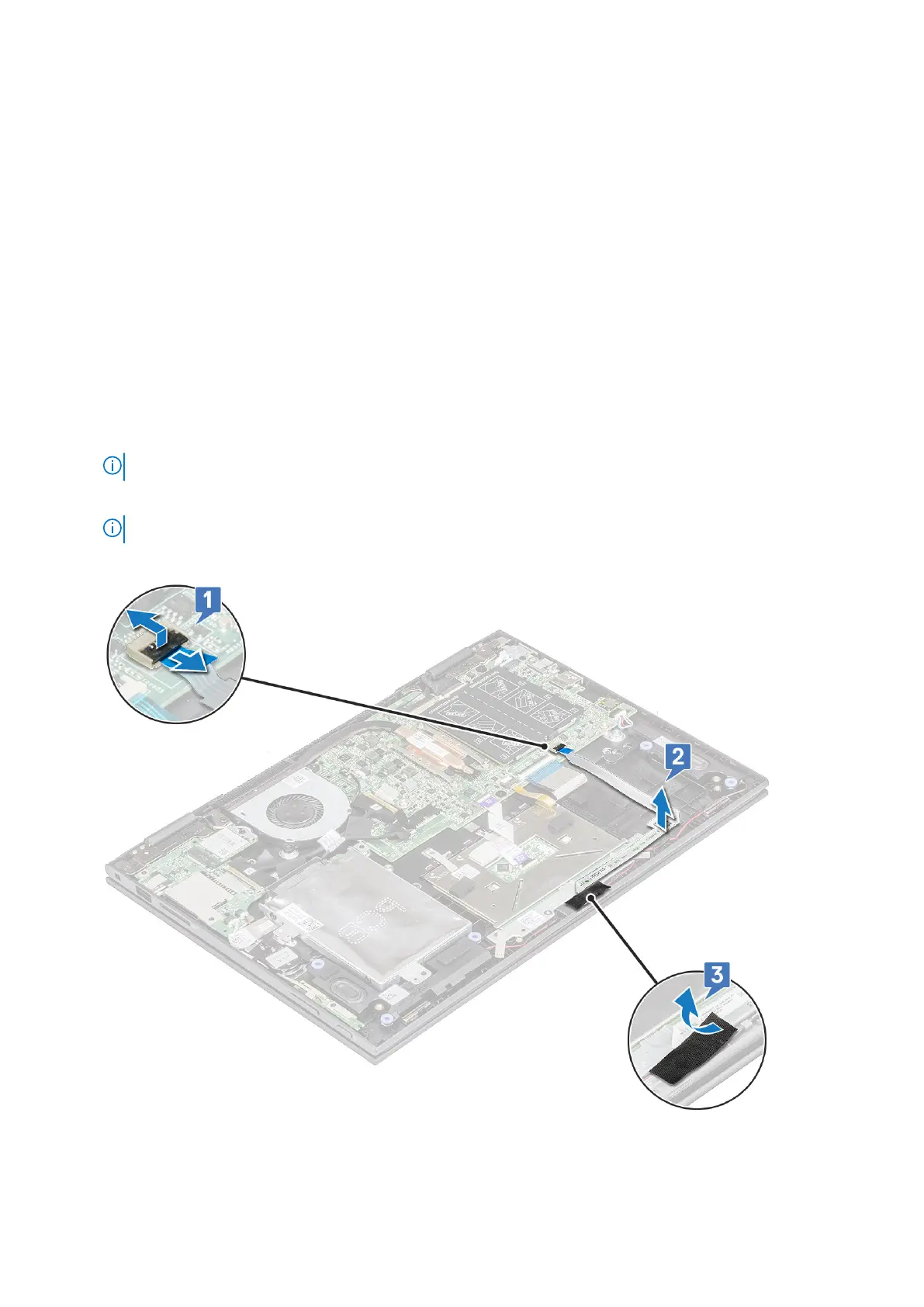

3. To remove the LED board:
a. Lift the latch and disconnect the LED board cable [1].
NOTE: Use a sharp tool or a plastic scribe to gently lift the latch.
b. Release the LED board cable from the laptop [2].
NOTE: LED board cable is glued with a adhesive,ensure to peel gently to avoid damage.
c. Peel the adhesive tape to access the LED board [3].
d. Lift the LED board away from the laptop .
24
Removing and installing components
