Dell Inspirion 13-7368 User Manual

d. display cover

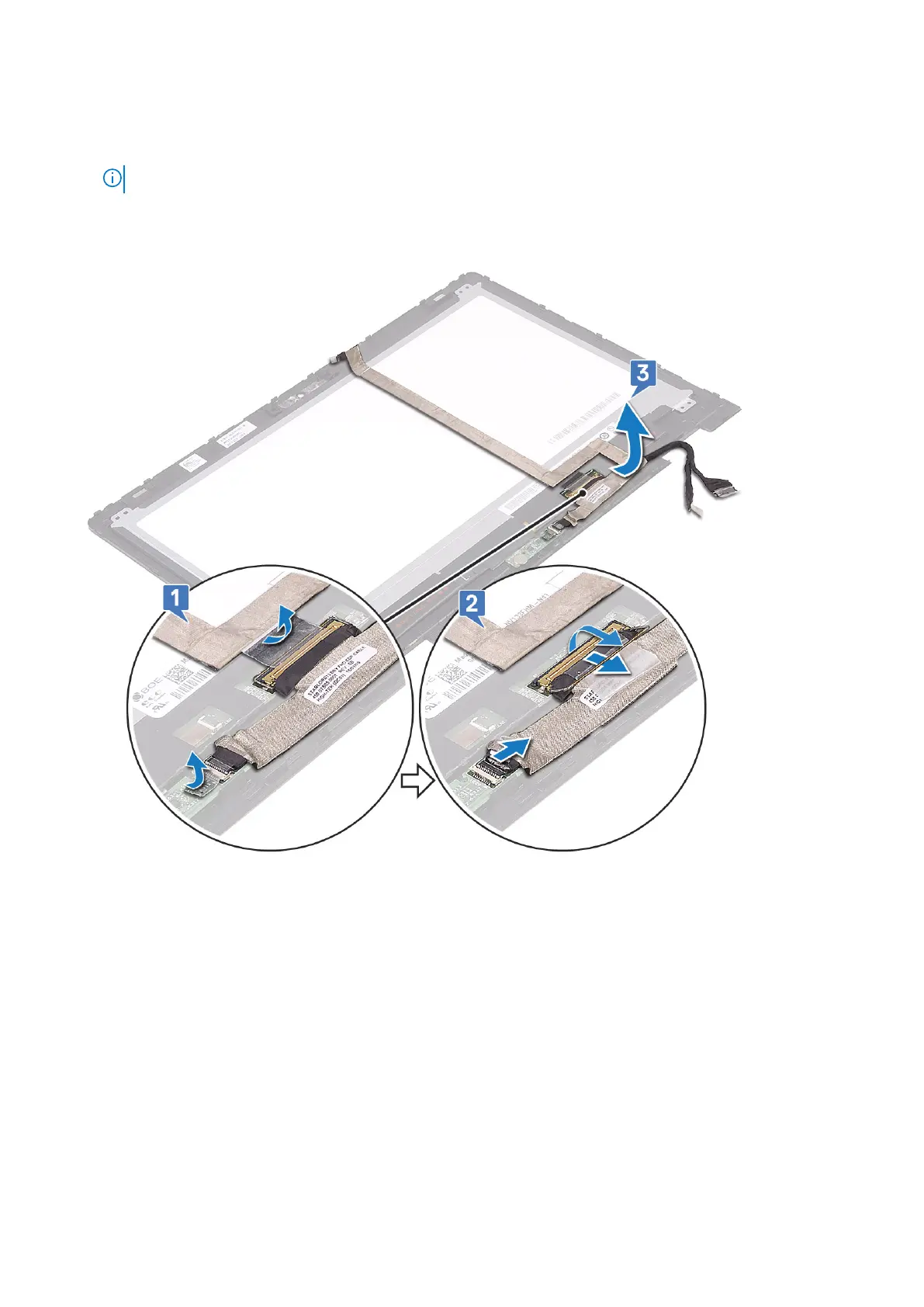

3. To remove the display cable:
a. Peel the adhesive tape and pull the latch to release the cables [1].
NOTE: Remove the tape cautiously for reuse.
b. Disconnect the sensor board cable and the display cable from the display panel [2].
c. Lift the display cable away from the display panel [3].
Installing the display cable
Steps
1. Route the display cable through the placeholders on the display panel.
2. Align the display cable along the routing channels on the display panel.
3. Connect the display cable and sensor board cable to the connectors on the display panel.
4. Affix the adhesive tapes to secure the display cable and sensor board cable.
5. Install the:
a. display cover
b. display assembly
c. battery
d. base cover
Removing and installing components
41

Dell Inspirion 13-7368 Specifications

General

Brand	Dell
Model	Inspirion 13-7368
Category	Laptop
Language	English
