Hard disk drive (HDD)
Removing the HDD
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
3. To remove the HDD:

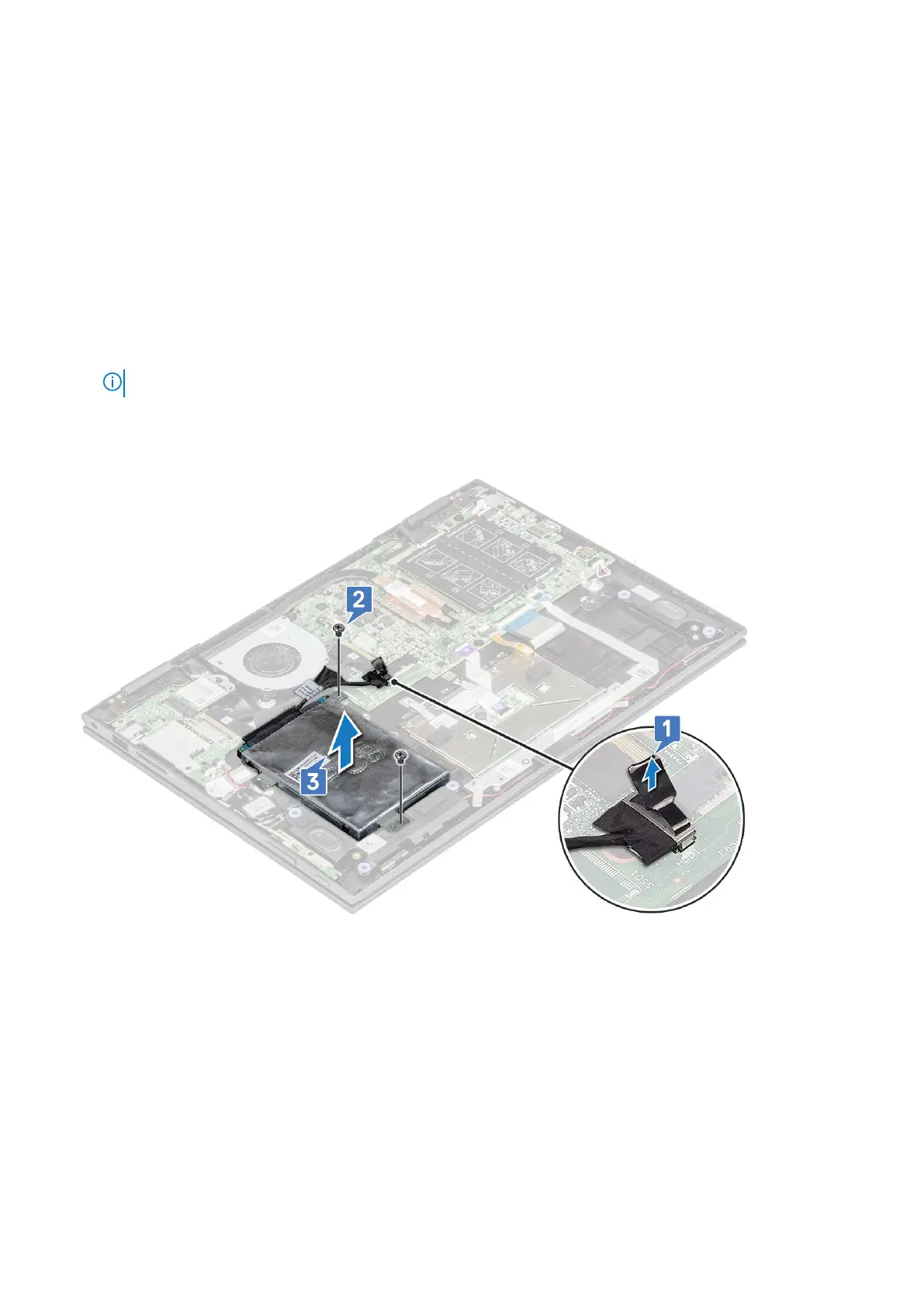

a. Disconnect the HHD cable from the connector on the system board [1].
NOTE: Ensure to pull the HDD cable by the plastic handle to avoid damage to the connector and cable.
b. Release the cable adhesive tape that secures the cable to the system board.
c. Remove the M2.5x6 screw (2) that secures the HDD on the laptop system board [2].
d. Lift the HDD from the system board [3].
Installing the HDD
Steps
1. Place the HDD on the hard disk placeholder.
2. Press the adhesive tape to secure the HDD cable.
3. Connect the HDD cable head to the connector on the system board.
4. Tighten the M2.5x6 screw (2) to secure the HDD to the laptop chassis.
5. Install the:
a. battery
b. base cover
