Installing the smart card cage

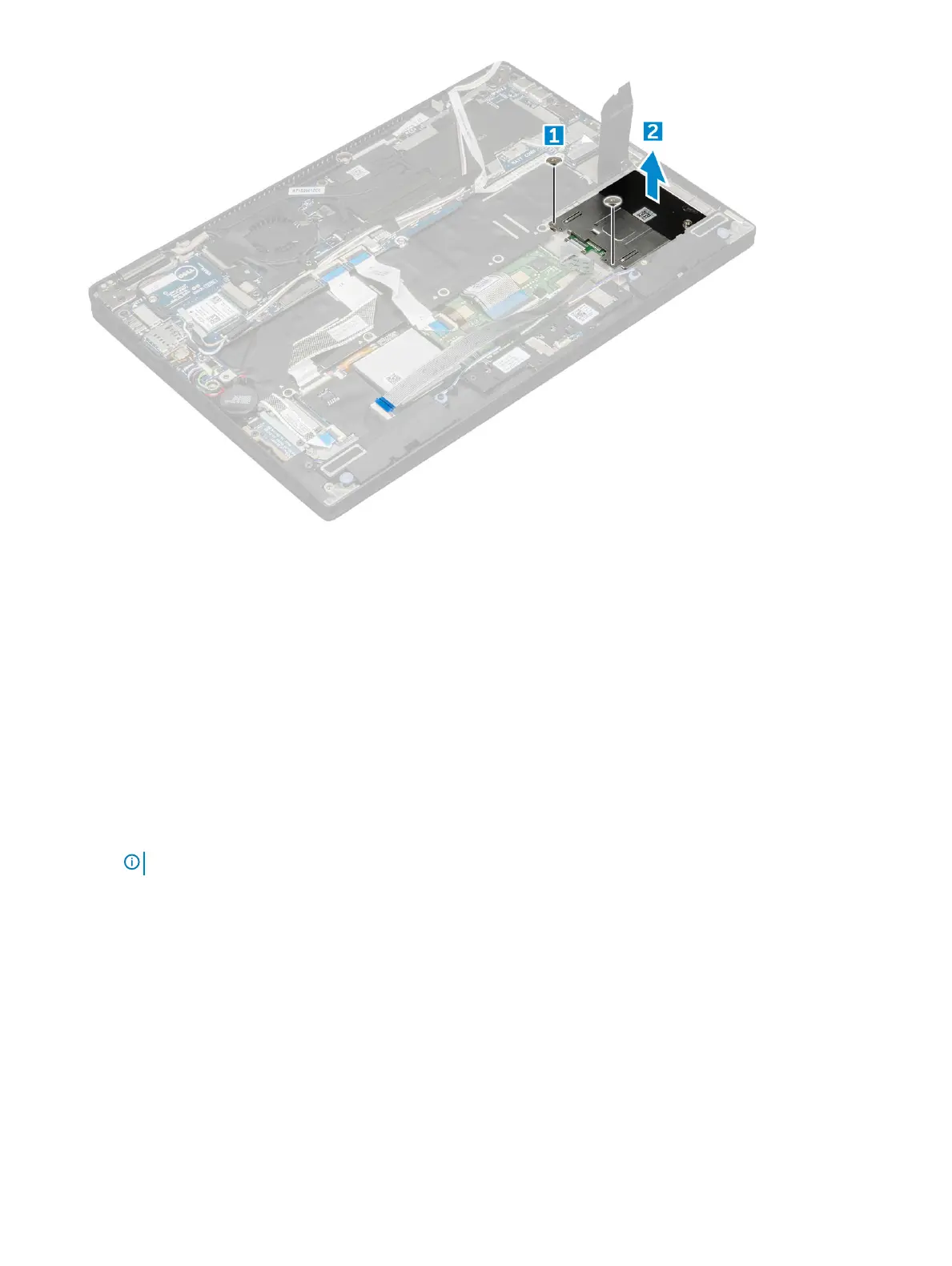

1 Slide the smart card cage into the slot to align with the screw holders on the computer.
2 Replace the M2.0 x 1.7 screws to secure the smart card cage to the computer.
3 Ax the thermal pad on the SSD slot.
4 Ax the smart card cable and connect it to the USH board on the computer .
5 Ax the LED board cable and connect it to the LED board on the computer .
6 Install the:
a SSD card
b battery
c base cover
d SIM card
e MicroSD card
NOTE
: To install both cards if equipped.
7 Follow the procedure in After working inside your computer.
Ensamblaje de la pantalla
Removing the display assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a MicroSD card
b SIM card
