Dell Latitude 7389 2-in-1 User Manual

Removing keyboard from the keyboard tray
1 Follow the procedure in Before working inside your computer.
2 Remove the keyboard assembly
3 Remove the keyboard from the keyboard support tray:

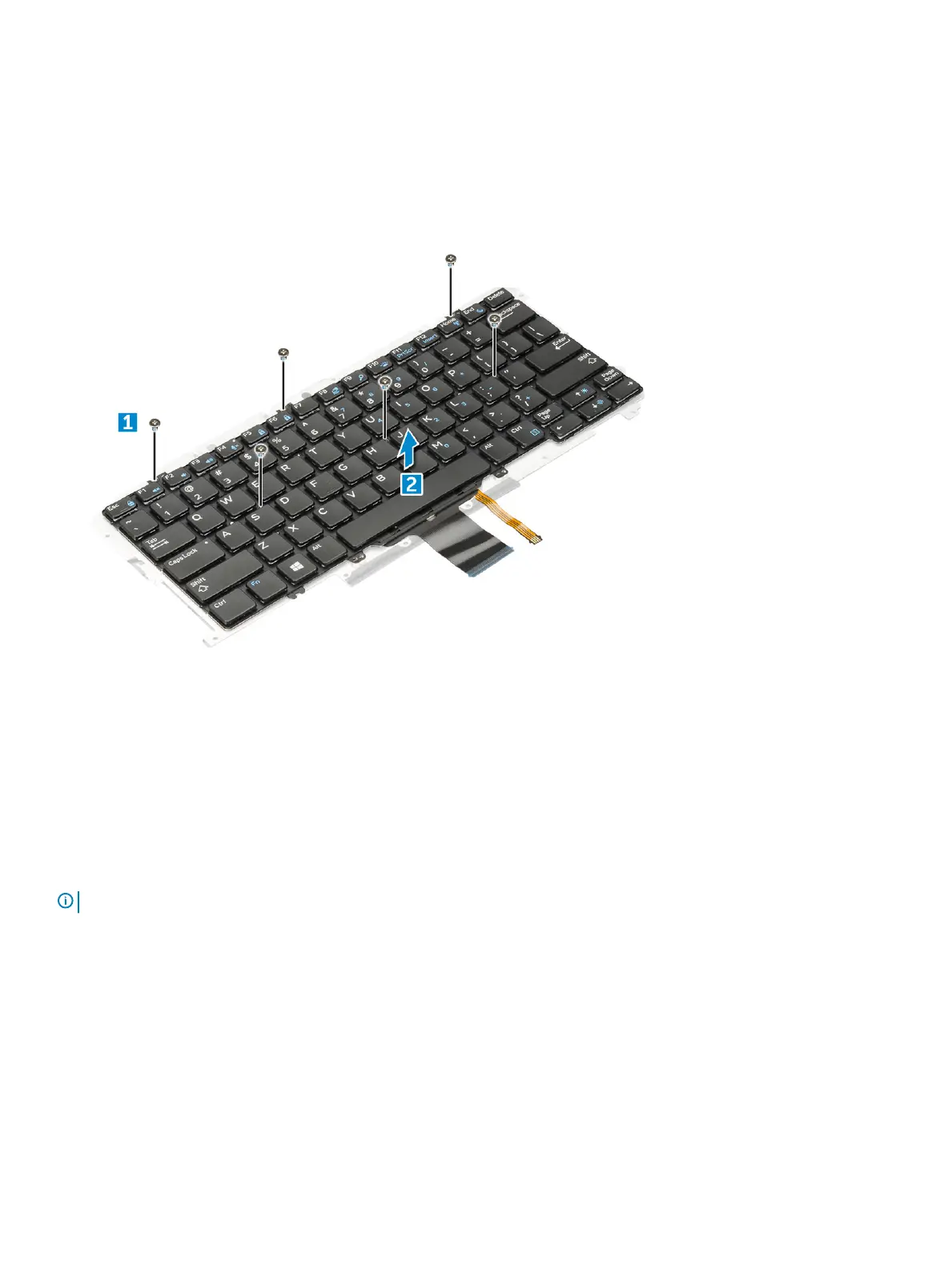

a Remove the M2.0 x 2.0 screws that secure the keyboard to the keyboard assembly [1].
b Lift the keyboard away from the keyboard support tray [2].
Installing keyboard to the keyboard tray
1 Align the keyboard with the screw holders on the keyboard tray.
2 Tighten the M2.0 x 2.0 screws to secure the keyboard to the keyboard tray.
3 Install the keyboard assembly.
Installing keyboard assembly
NOTE
: The keyboard and the keyboard tray together are called the keyboard assembly.
1 Align the keyboard assembly with the screw holders on the chassis.
2 Replace the M2.0 x 3.0 screws that secure the keyboard to the chassis.
3 Ax and connect the keyboard and the backlit keyboard cables to the keyboard.
4 Ax the LED board cable on the keyboard.
5 Ax the SSD thermal pad on the SSD module.
6 Install the:
a system baord
b heatsink module
c WWAN card
d WLAN card
