Disipador de calor
Removing heat sink assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Micro SD
b SIM card
NOTE: To remove both cards if equipped and no need to remove the blank ller.
c base cover
d battery

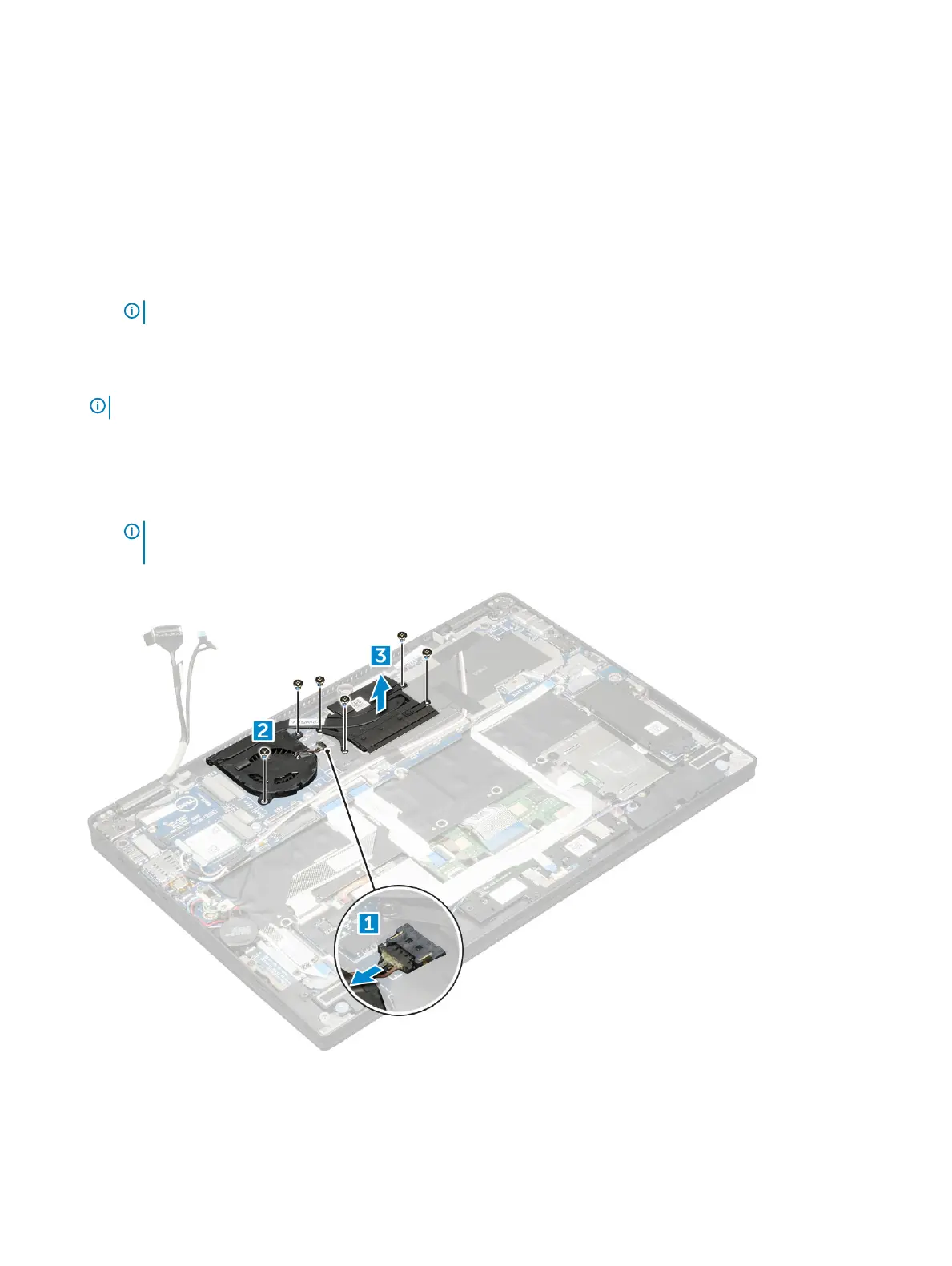

3 To remove the heat sink assembly:
NOTE: To remove the eDP cable, refer LCD assembly.
a Disconnect the fan cable from the system board [1].
b Disconnect cables from the LCD assembly to gain access to screws[2].
c Remove the 1 M2.0 x 3.0 screws that secure the fan to the system board[3].
d Remove the 1 M2.0 x 2.0 screws that secure the heat sink to the system board [4].
NOTE
: Loosen the screws on the system board in the order of the callout numbers [1, 2, 3, 4] as indicated on the heat
sink
e Lift the heat sink assembly from the system board.
Extracción e instalación de componentes
27
