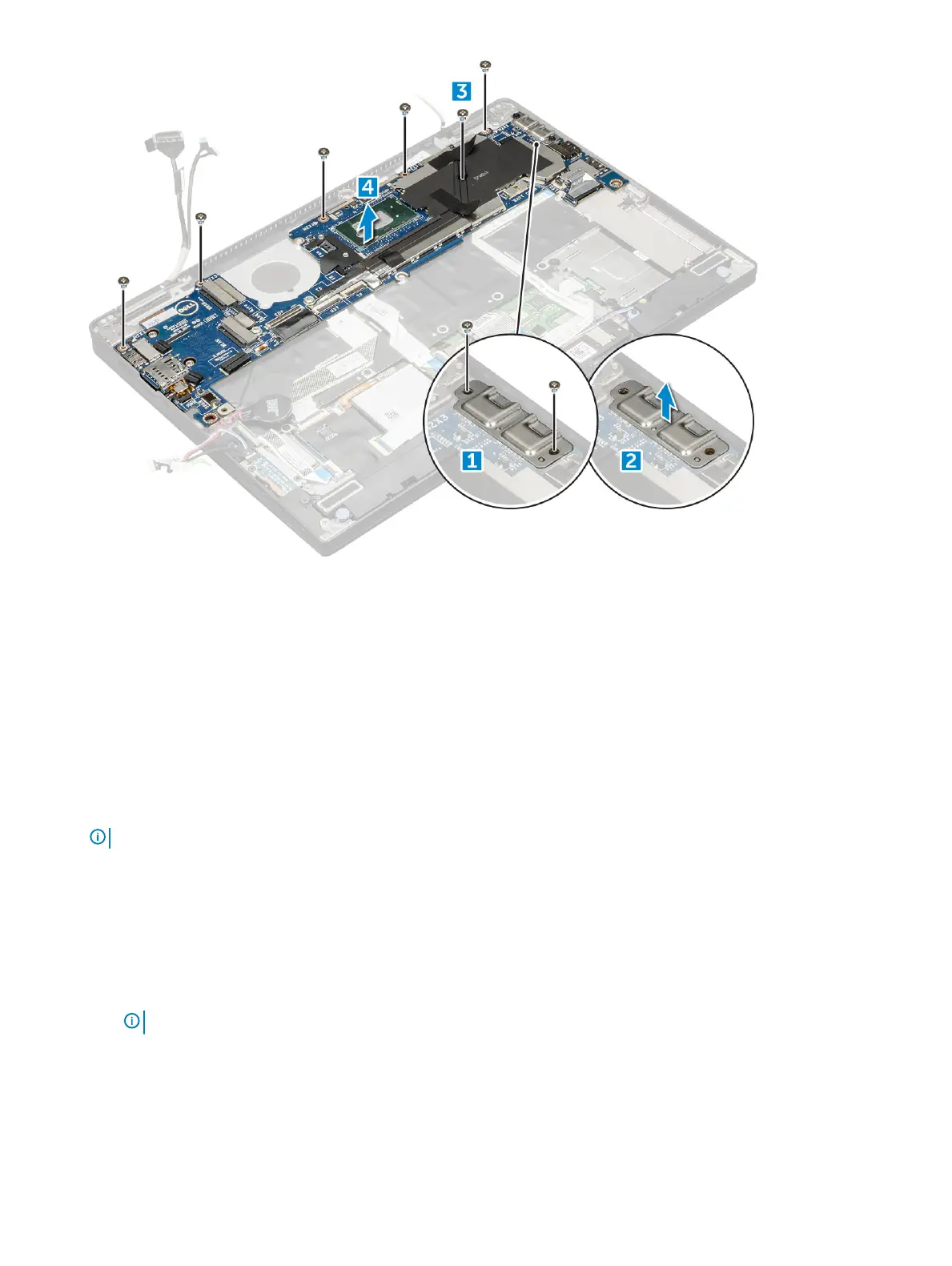

Installing system board
1 Align the system board with the screw holders on the computer.
2 Replace the M2.0 x 3.0 screws to secure the system board to the computer.
3 Place the USB Type-C bracket on the Type-C module.
4 Replace the M 2.0 x 4L screws to secure the USB Type-C bracket to the Type-C module.
5 Route the antenna cable through the routing clips and ax the tapes to secure the antenna cables.
6 Connect the power board and the speaker cable to the system board.
7 Ax the coin cell battery on the speaker cable.
8 Connect the USH board, Touchpad board and LED board cables to the system board.
1
NOTE
: If your computer has a WWAN card, then SIM card tray installation is a requirement.
9 Install the:
a heatsink module
Connect the following cables from the system board
1 LED board cable
2 USH cable
3 Touchpad cable
NOTE
: To reconnect the IR camera, touchscreen, eDP, and G-sensor cables, refer LCD assembly.
b WWAN card
c WLAN card
d SSD card
e battery
f base cover
Extracción e instalación de componentes
31
