PowerEdge R510 Technical Guide 25
a
Minor conversion required
b
With outer CMA brackets removed
NOTES
• The static rails essentially behave like a shelf. Unlike the sliding rails, there is no service
position for the chassis and the CMA is not supported.
• The static rails fit in all types of racks including 4-post square/round/threaded and 2-post. The
sliding rails fit in 4-post square hole and unthreaded round hole racks only.
• As shipped, the static rails are configured to mount without using tools into square hole or
unthreaded round hole 4-post racks via the new ReadyRail™ interface. 4-post threaded hole
racks require the front and rear brackets to be rotated 180°. Mounting screws are not included
in the kit.
• The numbers in the Rail Adjustability Range columns represent the distance between the
outside-facing surfaces of the front and rear mounting posts of the rack.
• The Rail Depth number represents the minimum depth of the rail when the rear bracket is
positioned all the way forward.
4.8 Rail View

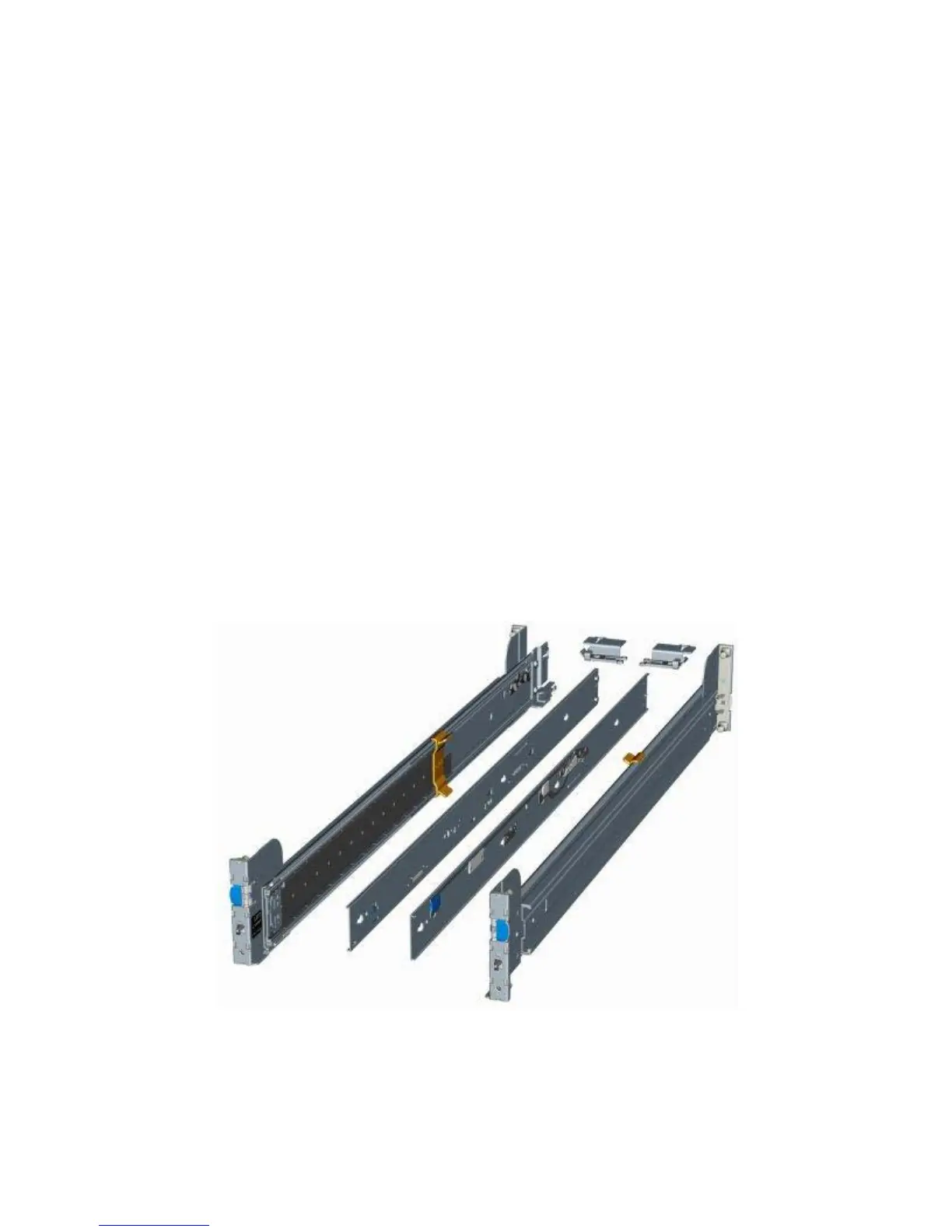

Figure 18. R510 Sliding Rails without CMA

Dell PowerEdge R510 Specifications

General

HDD size	3.5 \
Hot-swap	Yes
HDD capacity	450 GB
HDD interface	Serial Attached SCSI (SAS)
Total storage capacity	900 GB
Number of HDDs installed	2
Number of HDDs supported	8
Internal memory	4 GB
Memory clock speed	1066 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	64 GB
Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF6
Processor cache	8 MB
Processor cores	4
Processor model	E5540
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5500
Processing Die size	263 mm²
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	2.8 GHz
Processor operating modes	64-bit
Thermal Design Power (TDP)	80 W
CPU multiplier (bus/core ratio)	19
Number of Processing Die Transistors	731 M
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	144 GB
PS/2 ports quantity	0
Serial ports quantity	1
USB 2.0 ports quantity	6
Display	LCD
L1 cache	0.064 MB
Form factor	-
Graphics card	G200eW
Dimensions (WxDxH)	86.4 x 436.6 x 609.6 mm
Compatible operating systems	Microsoft Windows Small Business Server 2008/2003/ Novell SUSE Linux Enterprise Server 11/10 SP2 Linux Red Hat Enterprise 5.3/4.7 VMware vSphere Version 4.0 VMware ESX v3.5 / ESXi v3.5
Power consumption (typical)	1100 W
Noise level	42 dB
Chassis type	Rack (2U)
PCI Express x4 slots	3
Processor ARK ID	37104
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Weight	13500 g
