PowerEdge R510 Technical Guide 32
5 Power, Thermal, Acoustic
5.1 Power Supplies
The 4 HDD configuration includes a 480W power supply. The 8 HDD configuration has a hot plug redundant
1100W power supply. A hot plug redundant 750W option will be available for the 8 HDD configuration in
January 2010. Power is soft-switched, allowing power cycling using a switch on the front of the system
enclosure or using software control (through server management functions). The power system is compatible
with industry standards, such as ACPI and Server 2000.
For the 8 HDD configuration 1100W and 750W hot plug redundant PSUs, Dell offers two options:
• n+0, hot plug non-redundant
• n+1, hot plug redundant
In order to supply power to the processors, standard Voltage Regulator Down (VRD) modules conform to VRD
(Performance 2005 FMB) specification. This approach reduces the board layout complexity while offering
design modularity. As processor speeds increase, a newer VRD can be used to accommodate the power
increase with no need to re-spin the board. The VRD is integrated onto the planar and is not field upgradeable.
The VRD follows Intel’s VRD11 specification.
There are 2 separate power supply connectors on the planar—one connector is an ATX connector (2x12) and
the other one is a 2x4 connector to provide an additional two pins for +12V. (The ATX connector Pin definition
is not standard; it is defined by power rating calculation.)
The 2x12 ATX connector provides 3.3V, 5V, 12V, and 12V standby to the system. 3.3V standby is provided to
the system through a buck converter from 12V standby.

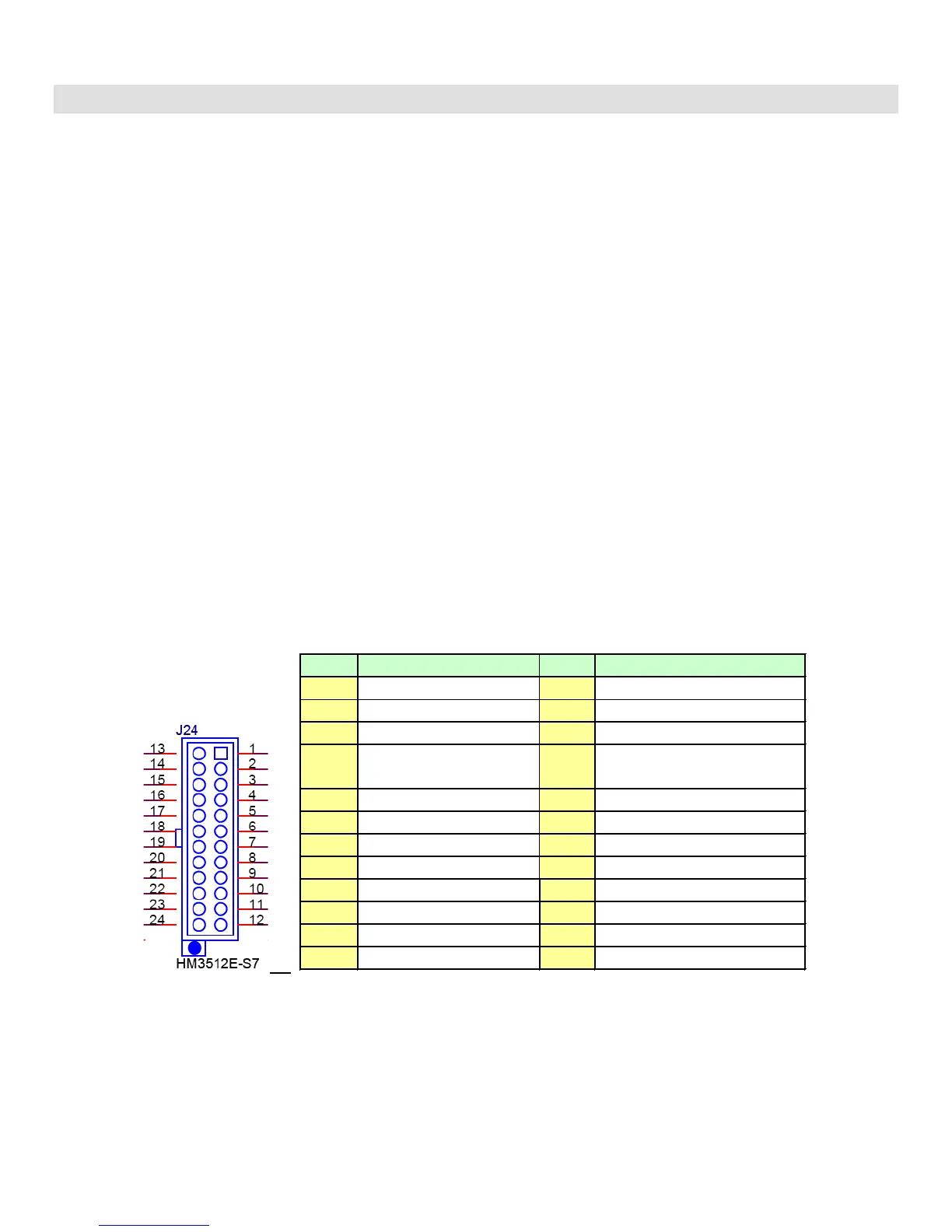

Figure 27. Power Supply Connector (24 pins)
Pin
SIGNAL
Pin
SIGNAL
1
P5V
13
P12V_AUX
2
P5V
14
P3V3
3
P3V3
15
P3V3
4
SINGLE_PS_PRE
S_N
16
PS_ENABLE_CPLD_
N
5
PS_PWROK
17
GND
6
GND
18
GND
7
GND
19
GND
8
GND
20
GND
9
GND
21
P12VC
10
P12VC
22
P12VC
11
P12VC
23
P12VC
12
P12VC
24
P12VC

Dell PowerEdge R510 Specifications

General

HDD size	3.5 \
Hot-swap	Yes
HDD capacity	450 GB
HDD interface	Serial Attached SCSI (SAS)
Total storage capacity	900 GB
Number of HDDs installed	2
Number of HDDs supported	8
Internal memory	4 GB
Memory clock speed	1066 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	64 GB
Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF6
Processor cache	8 MB
Processor cores	4
Processor model	E5540
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5500
Processing Die size	263 mm²
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	2.8 GHz
Processor operating modes	64-bit
Thermal Design Power (TDP)	80 W
CPU multiplier (bus/core ratio)	19
Number of Processing Die Transistors	731 M
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	144 GB
PS/2 ports quantity	0
Serial ports quantity	1
USB 2.0 ports quantity	6
Display	LCD
L1 cache	0.064 MB
Form factor	-
Graphics card	G200eW
Dimensions (WxDxH)	86.4 x 436.6 x 609.6 mm
Compatible operating systems	Microsoft Windows Small Business Server 2008/2003/ Novell SUSE Linux Enterprise Server 11/10 SP2 Linux Red Hat Enterprise 5.3/4.7 VMware vSphere Version 4.0 VMware ESX v3.5 / ESXi v3.5
Power consumption (typical)	1100 W
Noise level	42 dB
Chassis type	Rack (2U)
PCI Express x4 slots	3
Processor ARK ID	37104
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Weight	13500 g
