Dell PowerEdge R510 Technical Guidebook

Dell
PowerEdge R510 Technical Guide 47
• The lower power support on slots 1 and 4 is due to system thermal limitations
• The PowerEdge R510 does not support hot-swapping of PCIe cards
10.1.2 PCI Device Information
• IOH port 1, 2 (PCI Express Gen2 x4) – Broadcom BCM5716 Gigabit LOM
• IOH port 3 (PCI Express Gen2 x4) – Slot 4
• IOH port 7/8 (PCI Express Gen2 x8) – Slot 3
• IOH port 9 (PCI Express Gen2 x4) – Slot 2
• IOH port 10 (PCI Express Gen2 x4) – Slot 1
10.1.3 Boot Order for Riser 1
Boot order for Riser 1 is as follows:
• IOH port 1, 2 (PCI Express Gen2 x4) – Broadcom BCM5716 Gigabit LOM
• IOH port 3 (PCI Express Gen2 x4) – Slot 4
• IOH port 7/8 (PCI Express Gen2 x8) – Slot 3
• IOH port 9 (PCI Express Gen2 x4) – Slot 2
• IOH port 10 (PCI Express Gen2 x4) – Slot 1
10.1.4 PCI Card Dimensions
Table 20. PCI Card Dimensions: Riser 1
Slot Location
Bandwidth
Physical Slot
Height
Length
Slot1 (Gen2)
PCIe x4
PCIe x8
Full Height
Half Length
Slot2 (Gen2)
PCIe x4
PCIe x8
Full Height
Full Length
Slot3 (Gen2)
PCIe x8
PCIe x8
Full Height
Half Length
Slot4 (Gen2)
PCIe x4
PCIe x8
For dedicated storage controller
10.2 Riser 2 Detail
(Offered via customer upgrade kit, as this card is dedicated for external GPGPU solution only.)

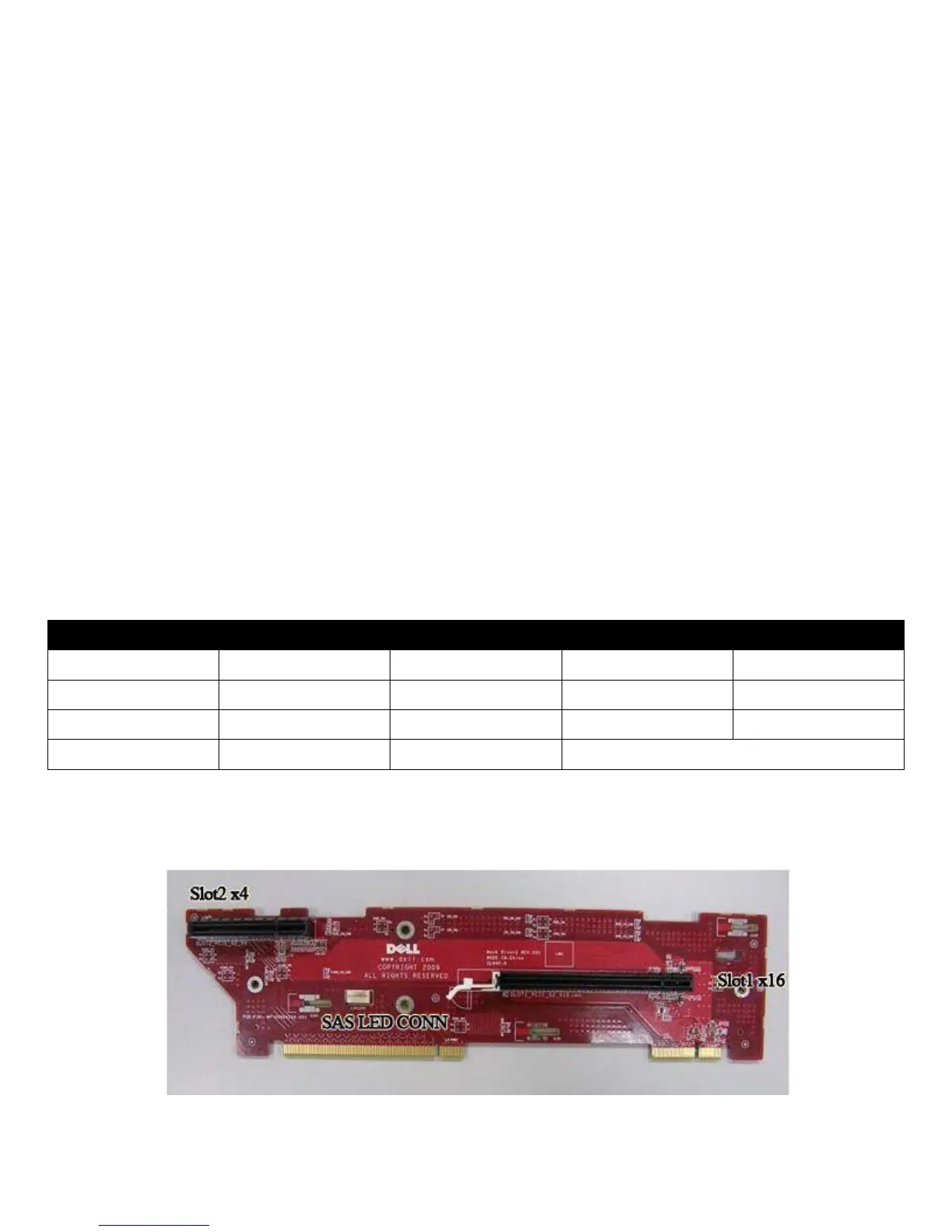

Figure 32. Riser 2

Dell PowerEdge R510 Specifications

General

HDD size	3.5 \
Hot-swap	Yes
HDD capacity	450 GB
HDD interface	Serial Attached SCSI (SAS)
Total storage capacity	900 GB
Number of HDDs installed	2
Number of HDDs supported	8
Internal memory	4 GB
Memory clock speed	1066 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	64 GB
Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF6
Processor cache	8 MB
Processor cores	4
Processor model	E5540
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5500
Processing Die size	263 mm²
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	2.8 GHz
Processor operating modes	64-bit
Thermal Design Power (TDP)	80 W
CPU multiplier (bus/core ratio)	19
Number of Processing Die Transistors	731 M
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	144 GB
PS/2 ports quantity	0
Serial ports quantity	1
USB 2.0 ports quantity	6
Display	LCD
L1 cache	0.064 MB
Form factor	-
Graphics card	G200eW
Dimensions (WxDxH)	86.4 x 436.6 x 609.6 mm
Compatible operating systems	Microsoft Windows Small Business Server 2008/2003/ Novell SUSE Linux Enterprise Server 11/10 SP2 Linux Red Hat Enterprise 5.3/4.7 VMware vSphere Version 4.0 VMware ESX v3.5 / ESXi v3.5
Power consumption (typical)	1100 W
Noise level	42 dB
Chassis type	Rack (2U)
PCI Express x4 slots	3
Processor ARK ID	37104
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Weight	13500 g
