PowerEdge R510 Technical Guide 9
2 New Technologies
A number of new technologies have been incorporated into the PowerEdge R510 product, including:
• Intel 5500 chipset + Intel Xeon 5500 series processor (new Intel architecture)
• PCIe Generation 2
• DDR3 Memory Technology (Memory RAS feature—mirroring)
• iDRAC6 (Dell server remote management controller)
• Dell Management Console (provides a consolidated view of the IT environment)Virtualization (supports
various virtualization applications)
• SSD advantage (support of SSD drives)
2.1 Detailed Information
2.1.1 Intel Xeon 5500 Series Processors
Intel Xeon 5500 series processors are the latest generation Intel processors for two-socket servers. Based on
a new 45nm die technology, they use integrated memory controllers on the processor itself rather than a
separate memory controller. QuickPath interconnect technology, the speed of which varies with the processor
model, replaces the familiar front-side bus.

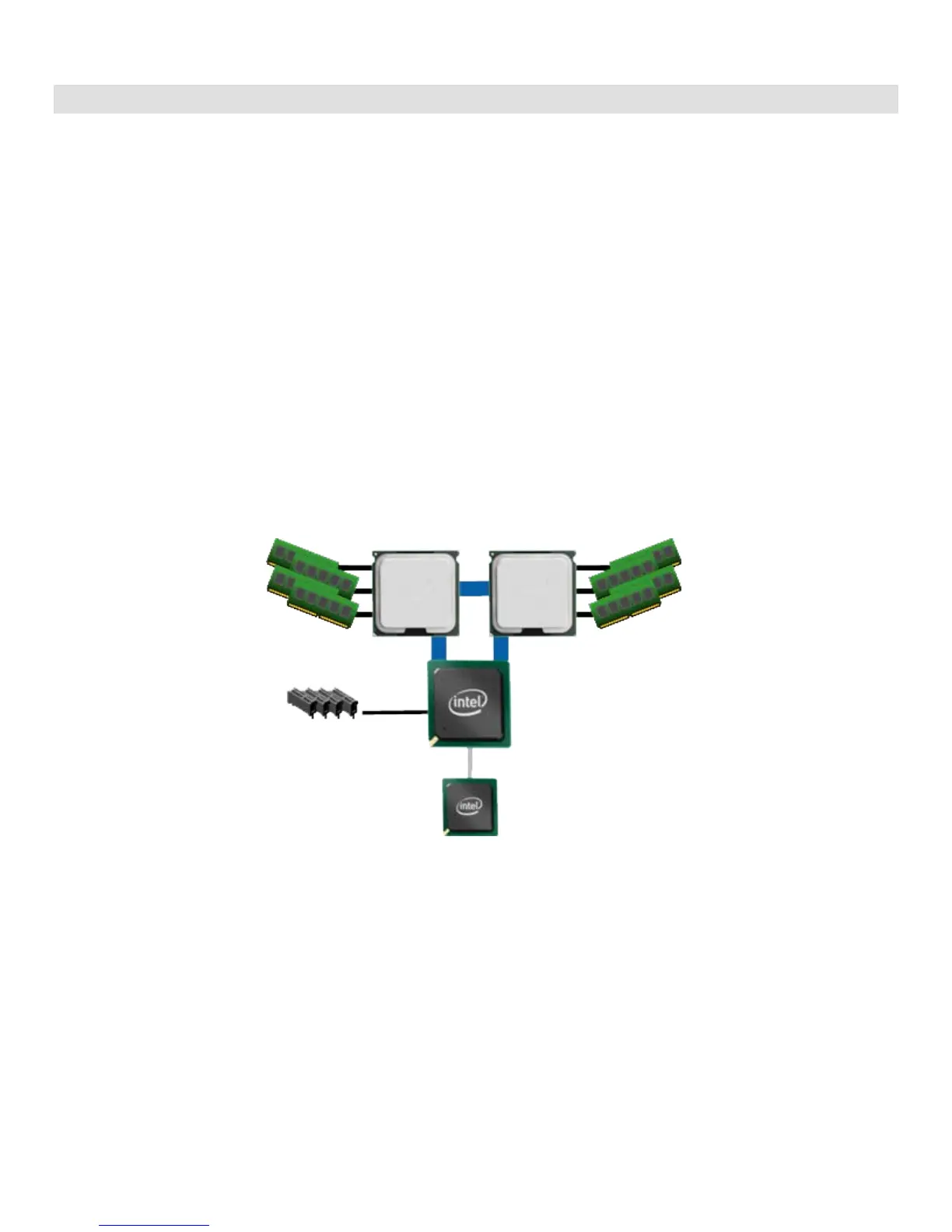

Figure 1. Intel Xeon 5500 Series Processors
Other Intel technologies used include:
• Intel Hyper-Threading, which enables more software threads to be running simultaneously.
• Intel Intelligent Power, which scales server power consumption to performance needs.
• Intel Turbo Boost, which boosts frequency for active cores by up to 400 MHz for during peak demand
periods.
PCI Express
Gen 2
Intel Xeon
5500
Intel Xeon
5500
QPI
QPI up to 25.6 GB/sec bandwidth per link
DDR3 Memory
Up to 18 slots

Dell PowerEdge R510 Specifications

General

HDD size	3.5 \
Hot-swap	Yes
HDD capacity	450 GB
HDD interface	Serial Attached SCSI (SAS)
Total storage capacity	900 GB
Number of HDDs installed	2
Number of HDDs supported	8
Internal memory	4 GB
Memory clock speed	1066 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	64 GB
Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF6
Processor cache	8 MB
Processor cores	4
Processor model	E5540
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5500
Processing Die size	263 mm²
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	2.8 GHz
Processor operating modes	64-bit
Thermal Design Power (TDP)	80 W
CPU multiplier (bus/core ratio)	19
Number of Processing Die Transistors	731 M
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	144 GB
PS/2 ports quantity	0
Serial ports quantity	1
USB 2.0 ports quantity	6
Display	LCD
L1 cache	0.064 MB
Form factor	-
Graphics card	G200eW
Dimensions (WxDxH)	86.4 x 436.6 x 609.6 mm
Compatible operating systems	Microsoft Windows Small Business Server 2008/2003/ Novell SUSE Linux Enterprise Server 11/10 SP2 Linux Red Hat Enterprise 5.3/4.7 VMware vSphere Version 4.0 VMware ESX v3.5 / ESXi v3.5
Power consumption (typical)	1100 W
Noise level	42 dB
Chassis type	Rack (2U)
PCI Express x4 slots	3
Processor ARK ID	37104
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Weight	13500 g
