About Your Computer 23
CAUTION: The AC adapter works with electrical outlets worldwide. However, power connectors and power
strips vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip
or electrical outlet may cause fire or equipment damage.
NOTICE: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself,
and pull firmly but gently to help prevent damage to the cable.
SECURITY CABLE SLOT — Lets you attach a commercially available antitheft device. For more information about
the security cable slot, see "Security Cable Lock" on page 83.
Bottom View
HARD DRIVE — Stores software and data. For more information, see "Hard Drive" on page 116 and "Hard drive
problems" on page 90.
OPTICAL-DRIVE LOCKING SCREW — Holds the optical drive in place. For more information, see "Optical Drive" on
page 115.
MEMORY MODULE COVER — Covers the compartment that contains the modem and the memory modules. For
more information, see "Memory" on page 119.

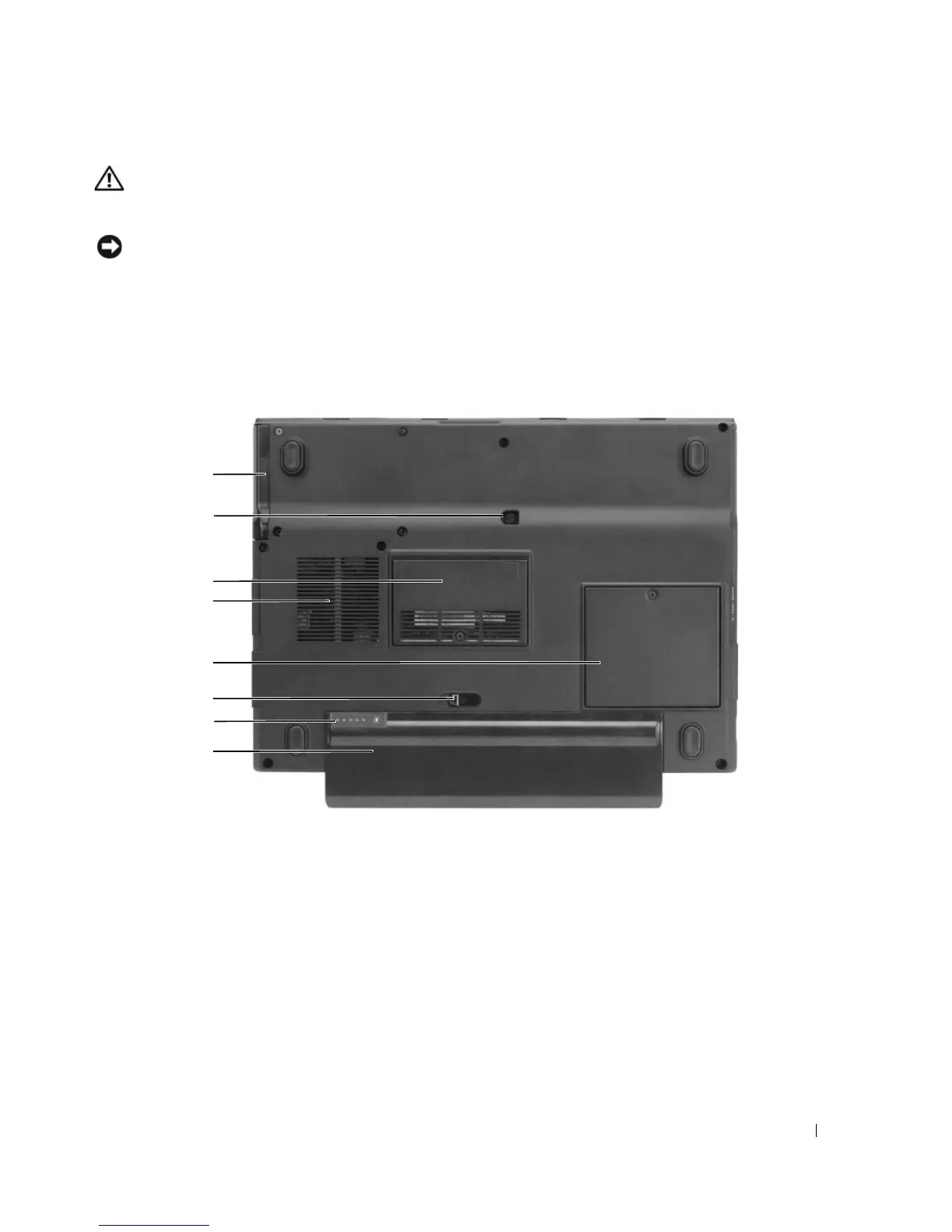

1 hard drive 4 air vents 7 battery charge gauge
2 optical-drive locking screw 5 communications card cover 8 battery
3 memory module cover 6 battery-bay latch release
1
3
4
6
8
5
7
2
