Chapter 3 Interface Introduction
3-3
5. Digital I/O
TP70P-211LC1T is with 17 input points and 24 output points. You have controls over individual points and you can
also read the status of the input points under this setting item.
6. System Setup
In the past, you need to press the RESET button to enter the System Setup page. Now you can also find System
Setup page on the main setting menu. You can set up the percentage of the backlight, how long the brightness dims
out and many more.

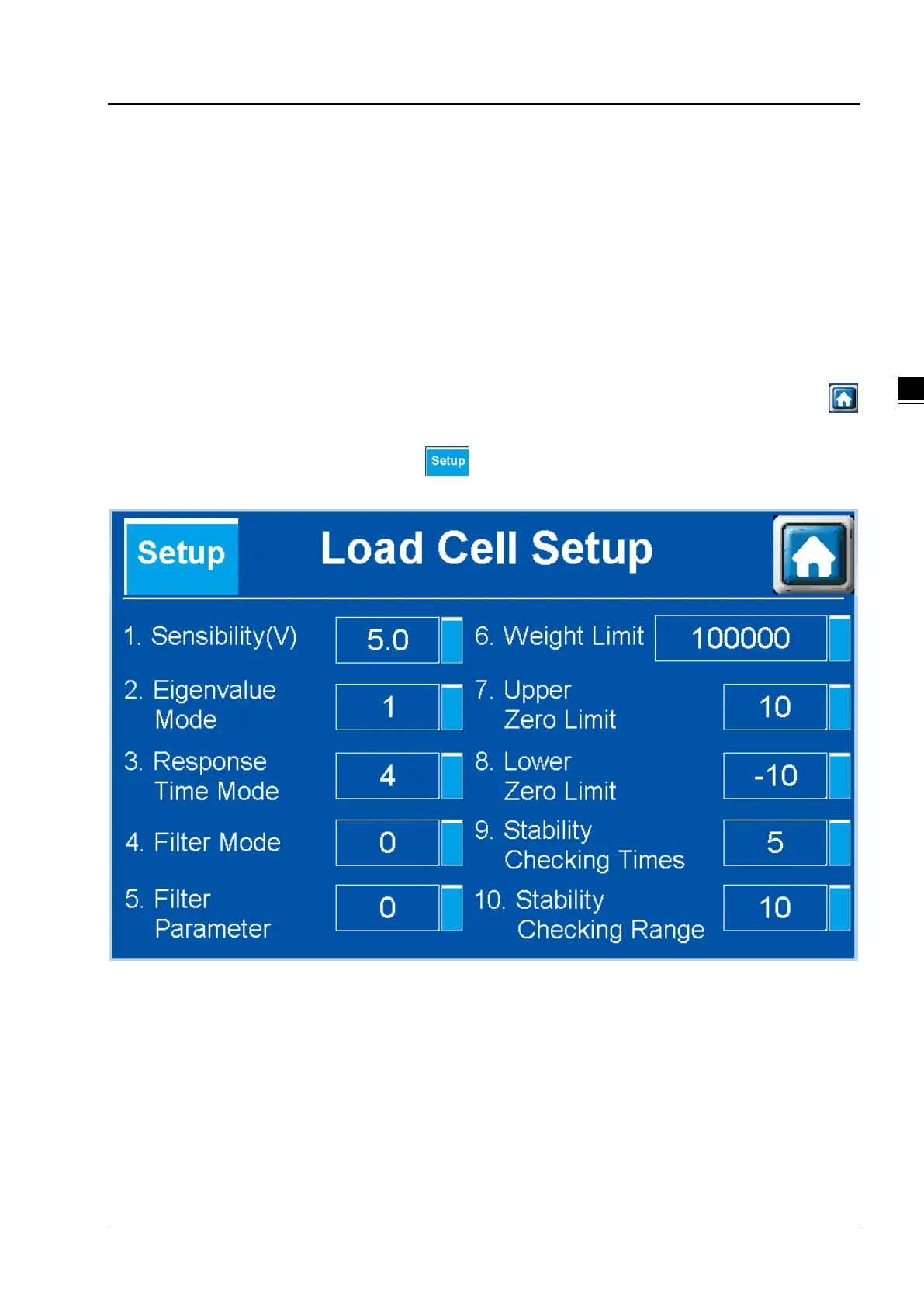

3.1.1 Load Cell Setup
Press Load Cell Setup from the main setting menu to display its corresponding setting page. You can always press
in the upper right corner to return to the main setting menu.
There are 10 setting items for you to set up. Press
in the upper left corner to save the settings after each setup or
the changes will not be saved.
(1) Sensibility (V): set up the excitation voltage at the load cell, ranging from 2.0 V to 9.5 V.
(2) Eigenvalue Mode: set up the eigenvalue mode from 1 to 9; the excitation voltage in different eigenvalue modes
corresponds to different eigenvalues. See the table below for reference.
