TP70P-211LC1T/TP04P-20EXL1T Operation Manual
3-12
3.2 TP04P-20EXL1T Operational Interface

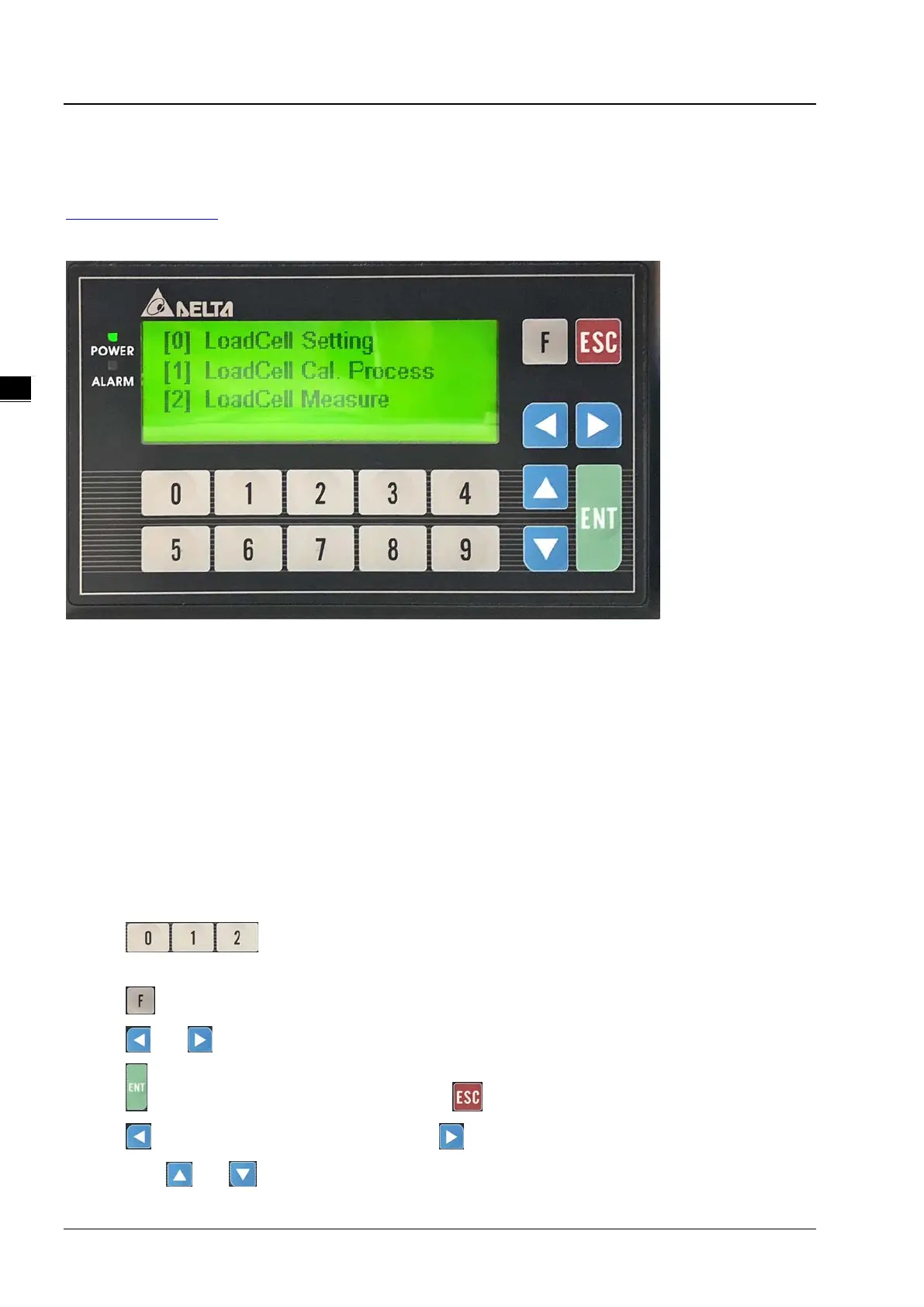

The default operational interface is as the image shown below; you can download the program in Delta’s official website:
http://www.deltaww.com/
Load Cell related functions are described below.
1. Load cell Setup
TP04P-20EXL1T is a one-channel load cell with multiple functions. You can use its friendly interface to set up the
setting items including excitation voltage, eigenvalue mode, response time mode and configure the parameters for
load cell related functions.
2. LoadCell Cal. Process
Before using load cell related functions, you need to calibrate TP04P-20EXL1T to ensure the measurements are
going to be accurate. Without other software or programs, you can use the LC Cal. Process function on the main
setting menu to complete the calibration.
3. Load Cell Measure
Here you can find different kinds of weight values. You can select weight units between kilogram and gram, reset the
values to zero and many more.
4. Use
to enter the setting pages of Load Cell Setup, LoadCell Cal. Process, Load Cell
Measure.
5. Use
to enter the value setting mode.
6. Use
and to set up the parameters.
7. Use to save the setting and go to the next item. Use to cancel without saving and leave the setting mode.
8. Use
to go back to the main setting menu and use to go to the next page.
Note: The keys
and are of no use for this series.
To Next Page
