7.6. ECAT GPS Junction 

ECAT GPS Junction is used for synchronization between SIRIUS-EtherCAT or KRYPTON series to SIRIUS,              

IRIG-B-DC or GPS. ECAT GPS junction has a built-in 10 Hz GPS receiver and connector for connecting                 

GPS or IRIG-B-DC time code signal. The devices are synchronized using this time code. The built-in GPS                 

receiver can also be used for recording positioning, just like with any other navigational device. 



Connector Label 

Connector type 

Info 

IN 

8-pin LEMO male 

EtherCAT input connector: 

e.g. connection to the PC via L1T8f-RJ45-1M cable 

OUT 

8-pin LEMO 

female 

EtherCAT output connector to your Krypton slice/s 

use any of the ECAT to ECAT expansion cables (e.g. 

L1T8m-L1T8f-10M). 

SYNC 

4-pin LEMO male 

Input connector for the IRIG-B-DC signal (TTL level), e.g. 

external, or directly from 

the two SYNC connectors are directly connected, so you can 

use the other connector as output (to daisy-chain the same 

sync signal to other devices: e.g. DEWE-43-A, DS-CAM, etc.) 

GPS 

GPS ANT SMA 

Female Jack 

connector 

Synchronization between SIRIUS-EtherCAT or KRYPTON 

series to GPS. 



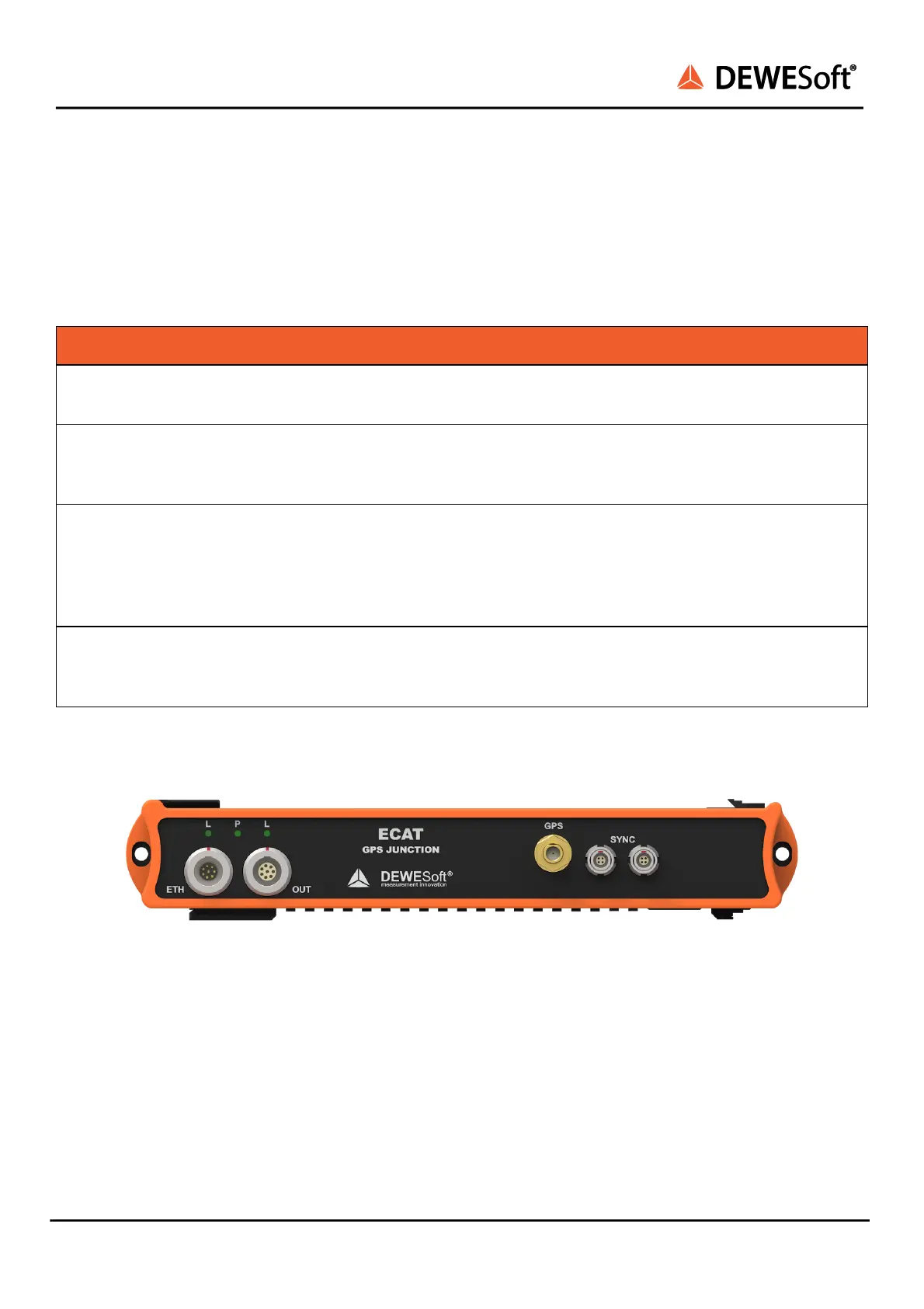

ECAT GPS junction 

 
