KRYPTON® 

TECHNICAL REFERENCE MANUAL 



KRYPTONi-4xDO 

Digital Outputs 

Output type 

Digital 

Number of channels 

4 

Connector 

DSUB15HD Female 

Maximum update rate 

depends on EtherCAT master cycle time 

Output type 

open collector with active internal pullup to 5 V 

Sink 

max 50 V, 2 A (resistive load, unprotected) 

Source: 

5 V, max. 40 mA (internally limited) 

Max. switching frequency for internal PWM 

100 kHz 

Isolation 

Galvanic isolation CH, GND 

Non-Isolated Sensor Power Supply 

Output Voltage +5 V 

5 V +/- 10 % 

300 mA max. (see 1) 

Output Voltage +12 V 

12 V +/-10 % 

100 mA max. (see 1) 

Output Voltage +Vecat 

EtherCAT Bus Supply Voltage 

200 mA max. (see 1) 

Power 

Power consumption 

2 W (typ.) 

Physical 

Dimensions 

62 x 56 x 29 mm 

Weight 

250 g 

1) Max. combined load on +5 V and +12 V pins: 1.5 W reduced by the load already present on +Vin pin 



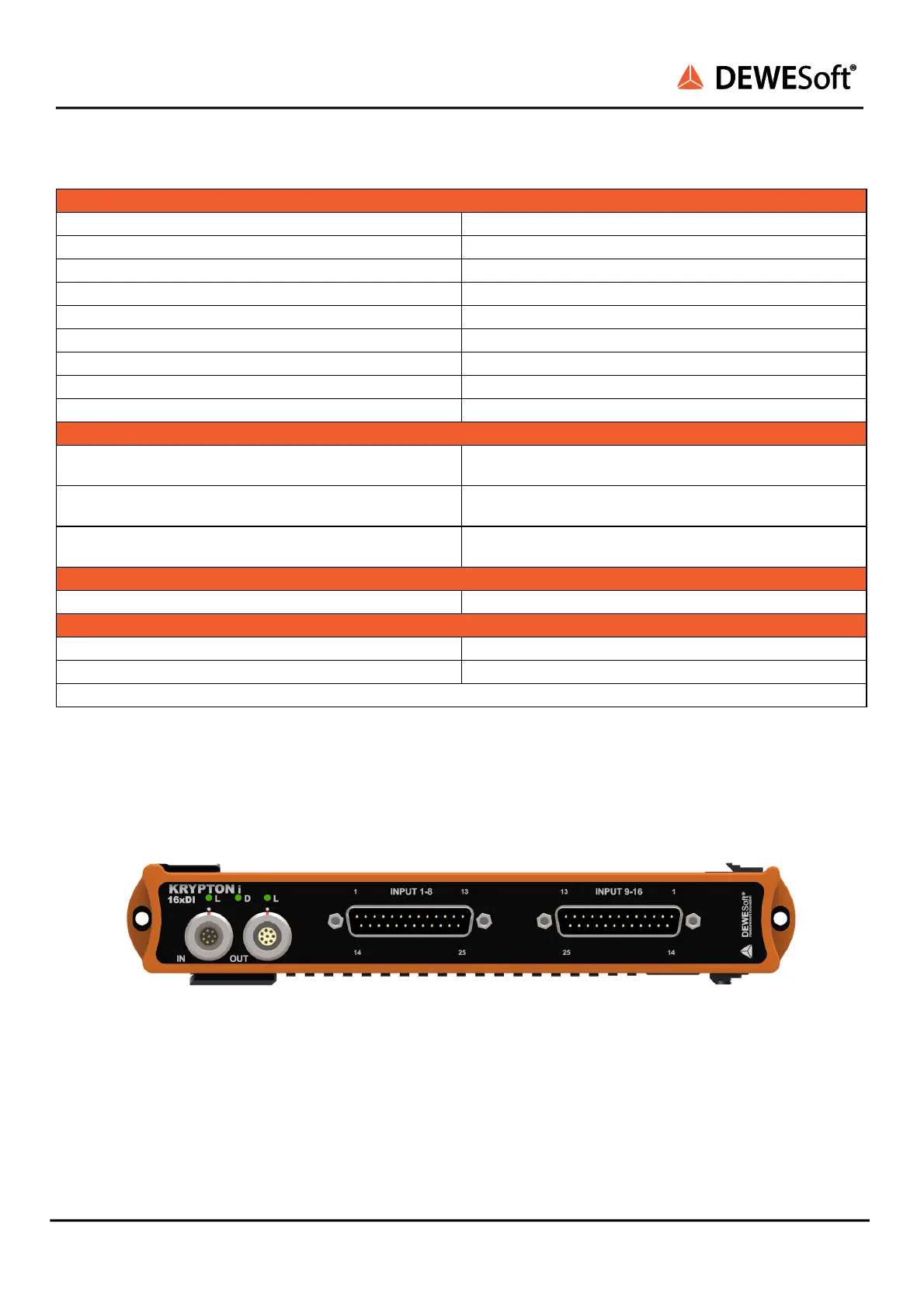

5.6.2. KRYPTONi-16xDI 

KRYPTONi-16xDI module has 16 digital input channels: 8 on each of the two 25-pin DSUB male 

connectors. 



KRYPTONi-16xDI 



 

KRYPTON® V20-1 49 / 141  
