KRYPTON®
TECHNICAL REFERENCE MANUAL

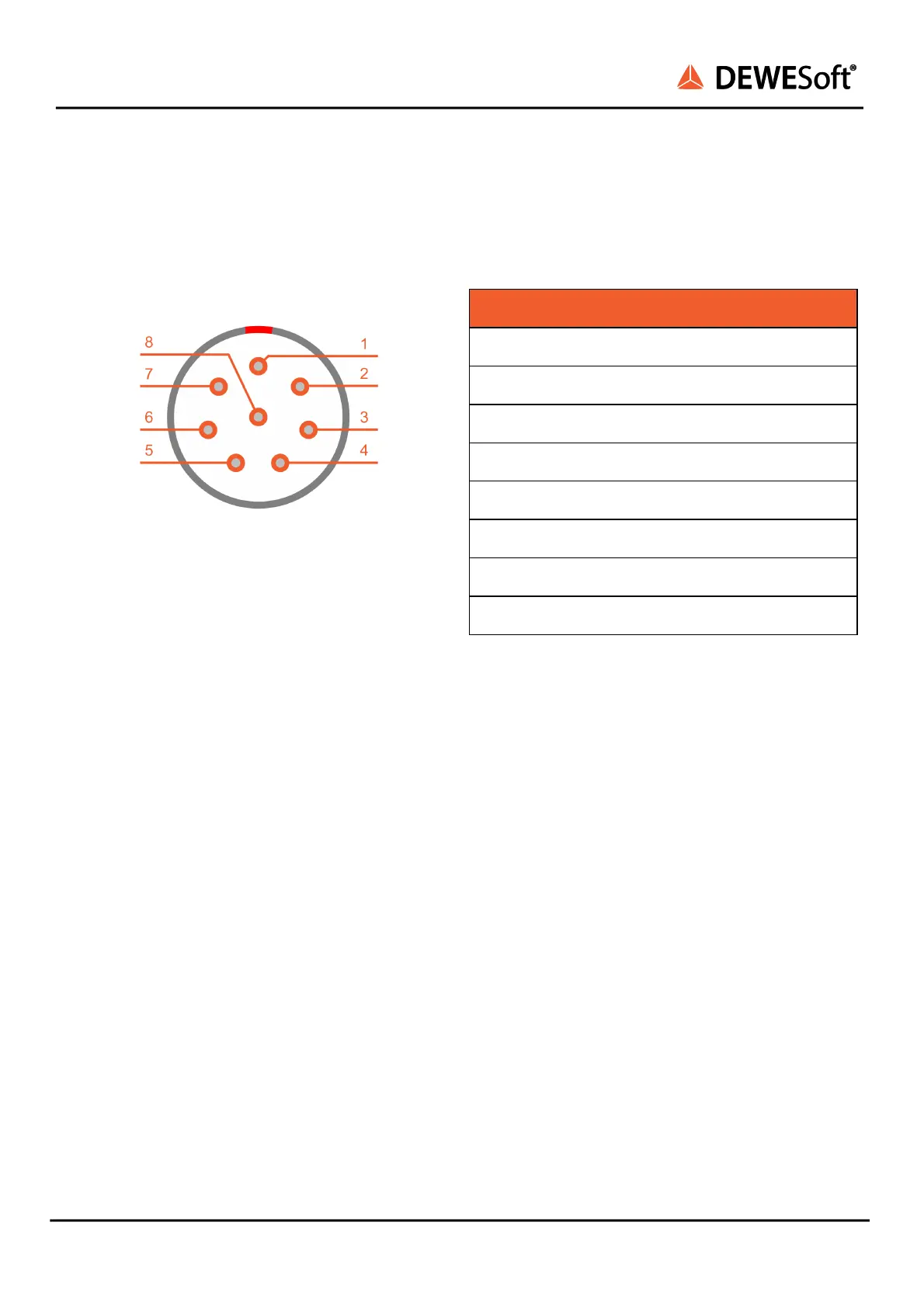

7.4.3. Pinout: EtherCAT IN connector
The connector for EtherCAT is a LEMO 1B 8-pin male connector.
IN connector: pin-out (8-pin LEMO male)
Pin
Name
Description
1
TX_P
Transmission +
2
TX_N
Transmission -
3
RX_P
Reception +
4
RX_N
Reception -
5
-
-
6
-
-
7
-
-
8
-
-
IN connector (on the device): EEJ.1B.308.CLD
Mating connector (for the cable): FGJ.1T.308.CLL.1433
KRYPTON® V20-1 98 / 141
