8.3. Mechanical locking of modules
KRYPTON modules can easily be stacked together. The mechanical lock mechanism is on the top and
bottom of each KRYPTON module. Here is a view of the bottom lock mechanism:
Bottom lock mechanism

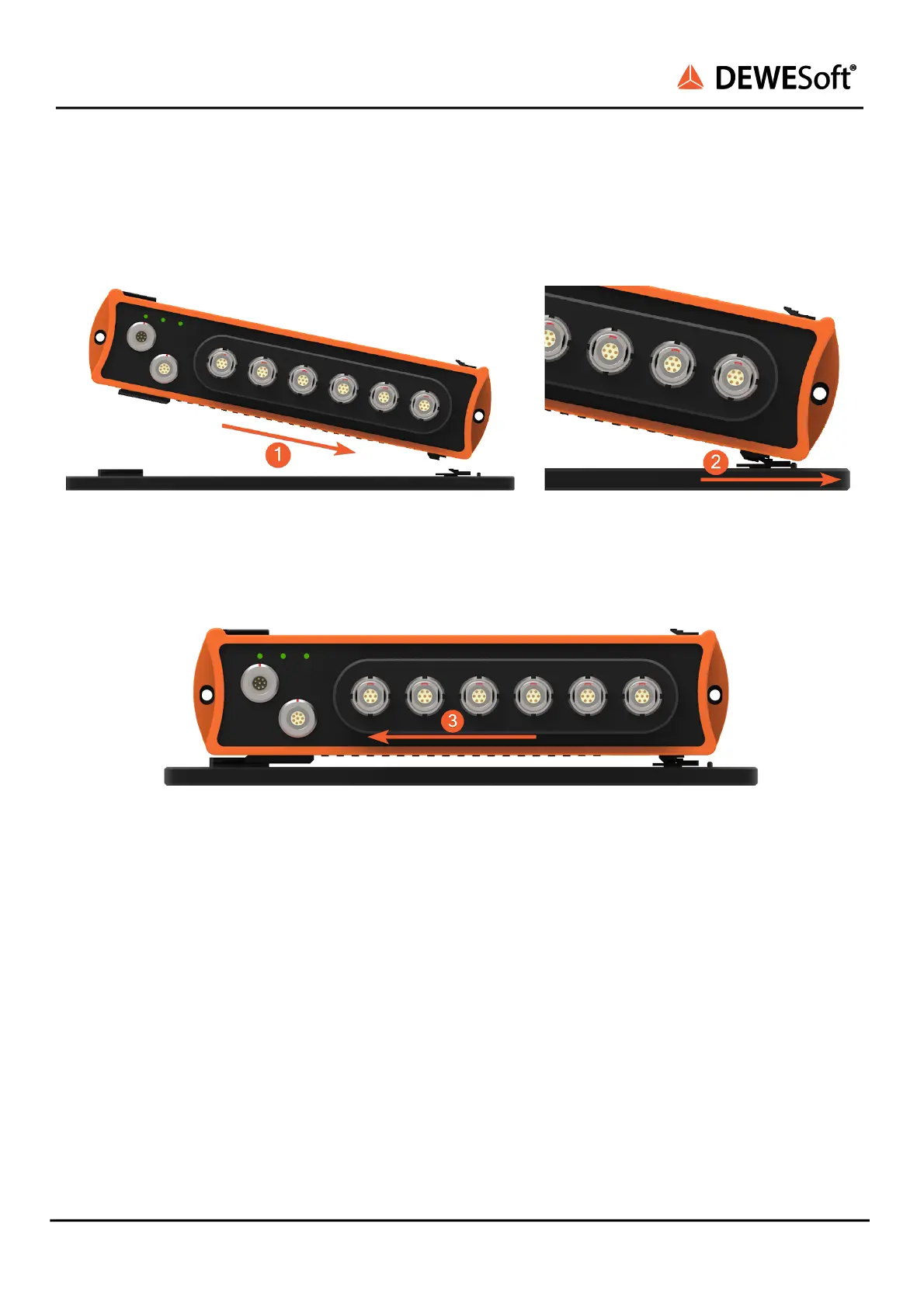

To lock 2 KRYPTON modules, first fit the nose of the bottom part ❶ into the matching part of the other
KRYPTON module. Now apply a little force to move the module to the right ❷ , until the 2nd part of the
mechanism can move down.
Bottom lock mechanism
Now release the force and the spring in the mechanism will move back to the left and both modules are
now locked ❸ .
To release the lock, just reverse the locking-procedure. Move the top slice to the right, until you can lift it
up a little. Then the KRYPTON modules are separated again.
KRYPTON® V20-1 111 / 141
