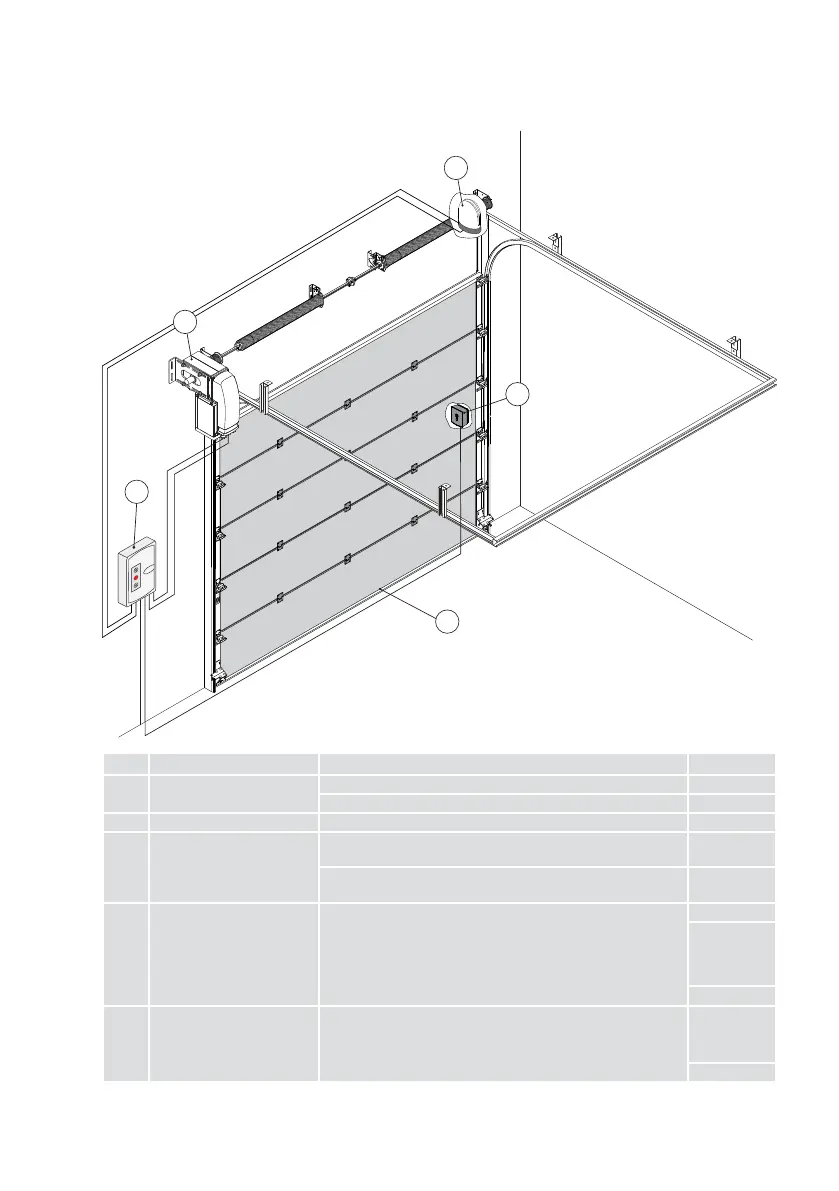

3.2 DOD14 installation or sectional door automations 230 V~
3.2.1 Standard installation
Ref. Code Description Cable
1 DOD14
Actuator (motor) 4 x 1.5 mm²
Extra low voltage limit switch unit 3 x 0.5 mm²
2 LCA85/LCA85B Control panel 3G x 1.5 mm²
3
FLM
FL24
Flashing light 230 V
Flashing light 24 V
2 x 1mm²
Antenna (integrated in the flashing light)
RG-58 coax
cable (50 Ω)
4
AXK4
AXK5M
AXR5I
AXK5NM
AXK5NI
AXR7
Digital combination wireless keypad
Key metal burglar-proof semi-recessed selector switch
Key metal burglar-proof wall-mounted selector switch
Key metal burglar-proof wall-mounted selector switch
Key metal burglar-proof semi-recessed selector switch
Transponder
/
4 x 0.5 mm²
/
5
SOFAP20
SOF2M20-SOF3M20
SOFA15-SOFA20-SOFA25
GOPAV
Safety edge
Safety edge
Safety edge
Safety signal’s radio transmission system
/
2
1
3
4
5
