46
IP2371EN

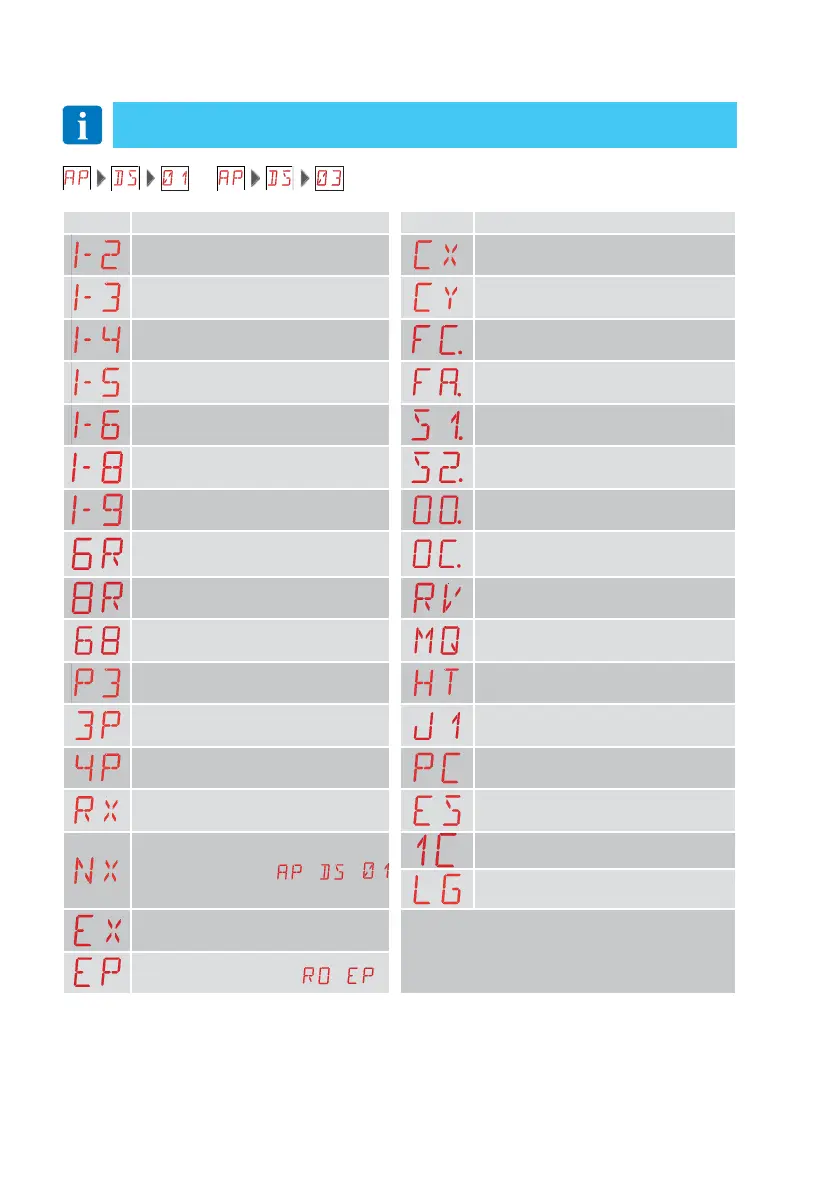

11.2 Display of safety devices and commands
NOTE: the safety device and command display mode is only visible with Display visual-
isation mode set at 01 or 03.
Display Description Display Description
1-2 - Automatic closure enable command. CX - Command received from AUX1 board
1-3 - Opening command. CY - Command received from AUX2 board
1-4 - Closure command. FC. - Closure limit switch
1-5 - Step-by-step command. FA. - Opening limit switch
1-6 - Safety device with opening and clos-
ing stop.
S1. -
Stop detection during closure operation
1-8 - Safety device with reversal during
closing operation.
S2. -
Stop detection during aperture operation
1-9 - STOP command. OO. - Obstacle detection limit reached
during aperture operation
1-6R - Activation or malfunction of aper-
ture operation stop resistive sensing
edge
0C. - Obstacle detection limit reached dur-
ing closure operation
1-8R - Activation or malfunction of clo-
sure reversal resistive sensing edge
RV - Enable/disable built-in radio receiver
via RDX.
68 - Device connected simultaneously to
terminals 1-6 and 1-8.
MQ - Mechanical end stop learning opera-
tion in progress.
P3 - Partial opening command. HT - Motor heating(NIO function) in pro-
gress.
3P - Opening command with operator
present
JR1 - Change in jumper JR1 status.
4P - Closing command with operator
present
PC - Connected HOST (Personal Comput-
er) recognised.
RX - Radio reception (from any memorised
key of a transmitter stored in memory)
ES - Switch to Green Mode (energy-saving)
NX - Radio reception (from any non-mem-
orised key)
NOTE:
with the selection → →
, it is also visualised when a command is
received from a non-stored transmitter.
1C - Closing operation
LG - Courtesy light/garden light command
EX - Rolling-code radio reception out of
sequence
EP - Radio reception not compliant with
parameter configuration
→
