DITEC LCA85 User Manual

24
IP2371EN
1. Turn on the power.
2. Activate the configuration wizard menu. Select the value of parameter to value 01 for
operation without deceleration, or 02 for enabling deceleration phases at the end of opening and
closing maneuvers. Set the selections required for the specific installation. Make sure to set the
correct opening direction (parameter
).
3. Make a jumper for the safety contacts 1-6, 1-8 and 1-9. If not deactivated via the menu param-
eters
→ , → and → .
4. The limit switches must be adjusted so as to take action in proximity of the mechanical stop open-
ing and closing. To adjust the limit switches, refer to the installation manual of the operator in use.
5. Give a closing command (
ENTER
+
DOWN
) or wait for the automatic closure to intervene if activated
and check that the automation performs the corresponding operation and stops after activating
each limit switch (learning operation).
6. Connect the safety devices after removing the jumpers 1-6, 1-8 and 1-9, or reactivating the cor-
responding inputs using the menu parameters → , → and → .
Make sure the various safety devices are operating correctly.

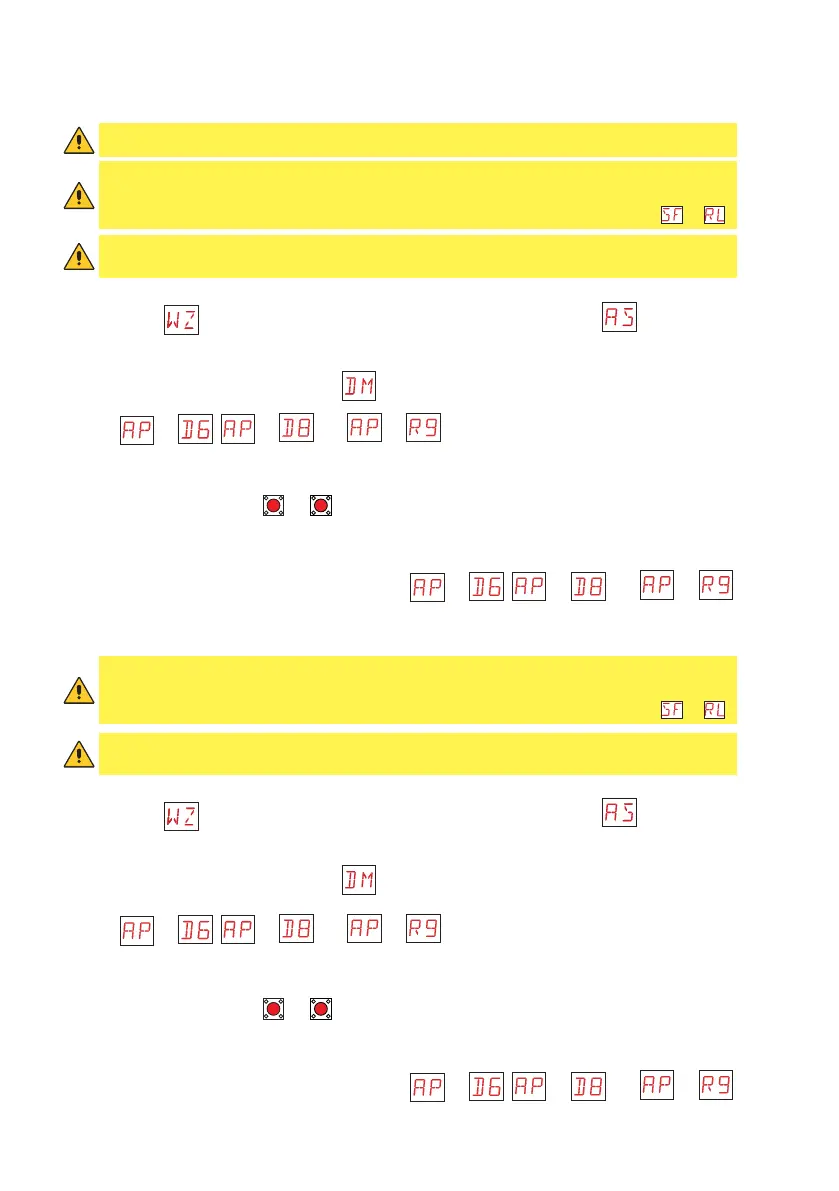

8.2.2 Barrier
WARNING: the system must have sufficiently robust mechanical end stops
WARNING: if the control panel is used to replace an identical control panel which is faulty, the last
automation configuration can be recovered by inserting the old control panel storage module into
the new control panel and loading the last set configuration using the menu sequence
→ .
WARNING: if the control panel is used to replace an identical control panel which is faulty, the last
automation configuration can be recovered by inserting the old control panel storage module into
the new control panel and loading the last set configuration using the menu sequence
→ .
WARNING : before using the automation, make sure that the operating forces of the gate
wings comply with the EN 12453:2017 standard and subsequent revisions.
WARNING : before using the automation, make sure that the operating forces of the gate
wings comply with the EN 12453:2017 standard and subsequent revisions.
8.2 Basic start-up example
8.2.1 Sliding gate
1. Turn on the power
2. Activate the configuration wizard menu. Select the value of parameter to value 01 for
operation without deceleration, or 03 for enabling deceleration phases at the end of opening and
closing maneuvers. Set the selections required for the specific installation. Make sure to set the
correct opening direction (parameter
).
3. Make a jumper for the safety contacts 1-6, 1-8 and 1-9. If not deactivated via the menu param-
eters
→ , → and → .
4. The limit switches must be adjusted so as to take action in proximity of the mechanical stop open-
ing and closing. To adjust the limit switches, refer to the installation manual of the operator in use.
5. Give a closing command (
ENTER
+
DOWN
) or wait for the automatic closure to intervene if activated
and check that the automation performs the corresponding operation and stops after activating
each limit switch (learning operation).
6. Connect the safety devices after removing the jumpers 1-6, 1-8 and 1-9, or reactivating the cor-
responding inputs using the menu parameters → , → and → .
Make sure the various safety devices are operating correctly.
