25
IP2371EN

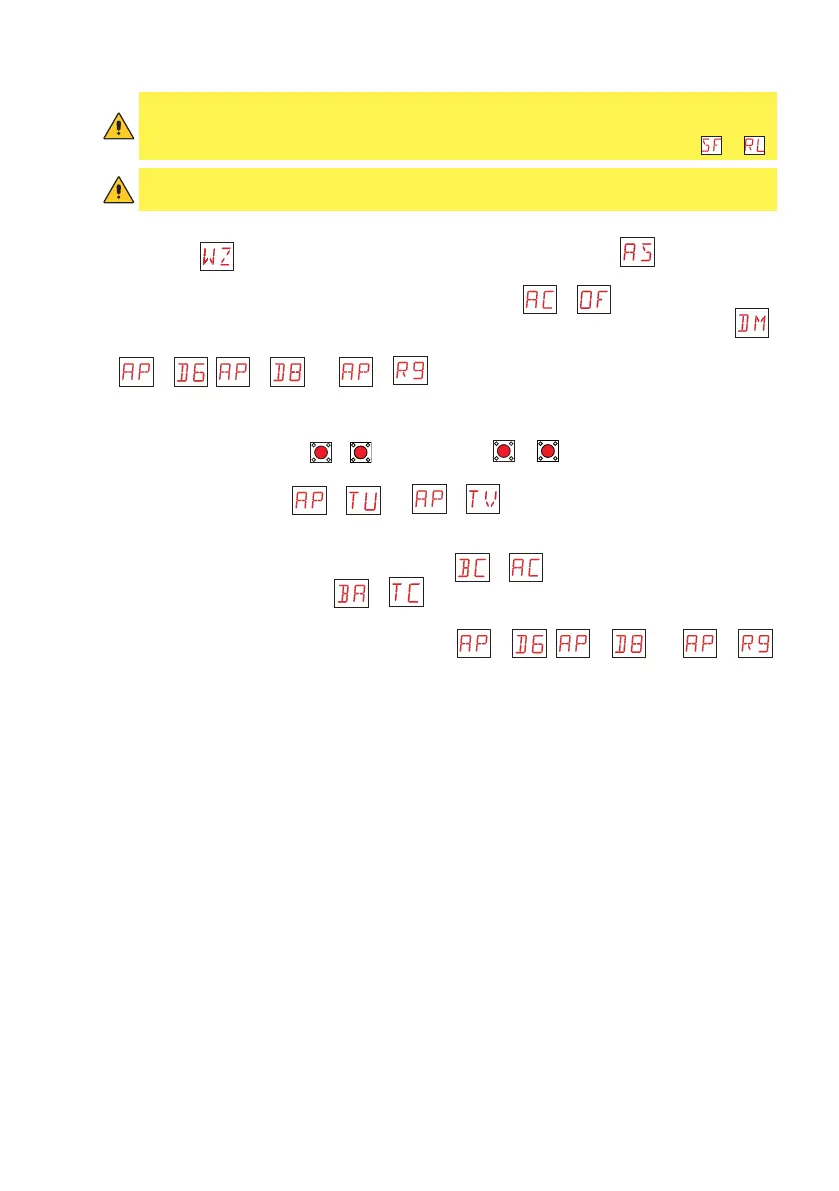

8.2.3 Sectional door
1. Turn on the power.
2. Activate the configuration wizard menu. Select the value of parameter to value 01 for op-
eration without deceleration, or 04 for enabling deceleration phases at the end of opening and closing
maneuvers. Disable automatic closure by setting parameter to . Set the other selections
required for the specific installation. Make sure to set the correct opening direction (parameter
).
3. Make a jumper for the safety contacts 1-6, 1-8 and 1-9 if not disabled via the menu parameters
→ , → and → .
4. The limit switches must be adjusted so to take action slightly before reaching the desired opening and
closing end positions. To adjust the limit switches, refer to the installation manual of the barrier in use.
5. Perform a complete opening (
ENTER
+
UP
keys) and closing (
ENTER
+
DOWN
) cycle and check that the automa-
tion performs the corresponding operation and stops after activating each limit switch (learning operation).
6. By adjusting parameters → and → , fine-tune the extra operation time after
limit switch activation during closing and opening maneuvers respectively, so to reach precisely
the desired end position. Some trial-and-error might be required.
7. Enable automatic closure if required (parameter
→ ) and adjust the desired automatic
closure time delay (parameter → ).
8. Connect the safety devices after removing the jumpers 1-6, 1-8 and 1-9, or reactivating the cor-
responding inputs using the menu parameters
→ , → and → .
Make sure the various safety devices are operating correctly.
WARNING:
if the control panel is used to replace an identical control panel which is faulty, the last
automation configuration can be recovered by inserting the old control panel storage module into
the new control panel and loading the last set configuration using the menu sequence
→ .
WARNING
: before using the automation, make sure that the operating forces of the gate
wings comply with the EN 12453:2017 standard and subsequent revisions.
