NOTE: depending on the type of automation and control panel, certain visualisations
may not be available.

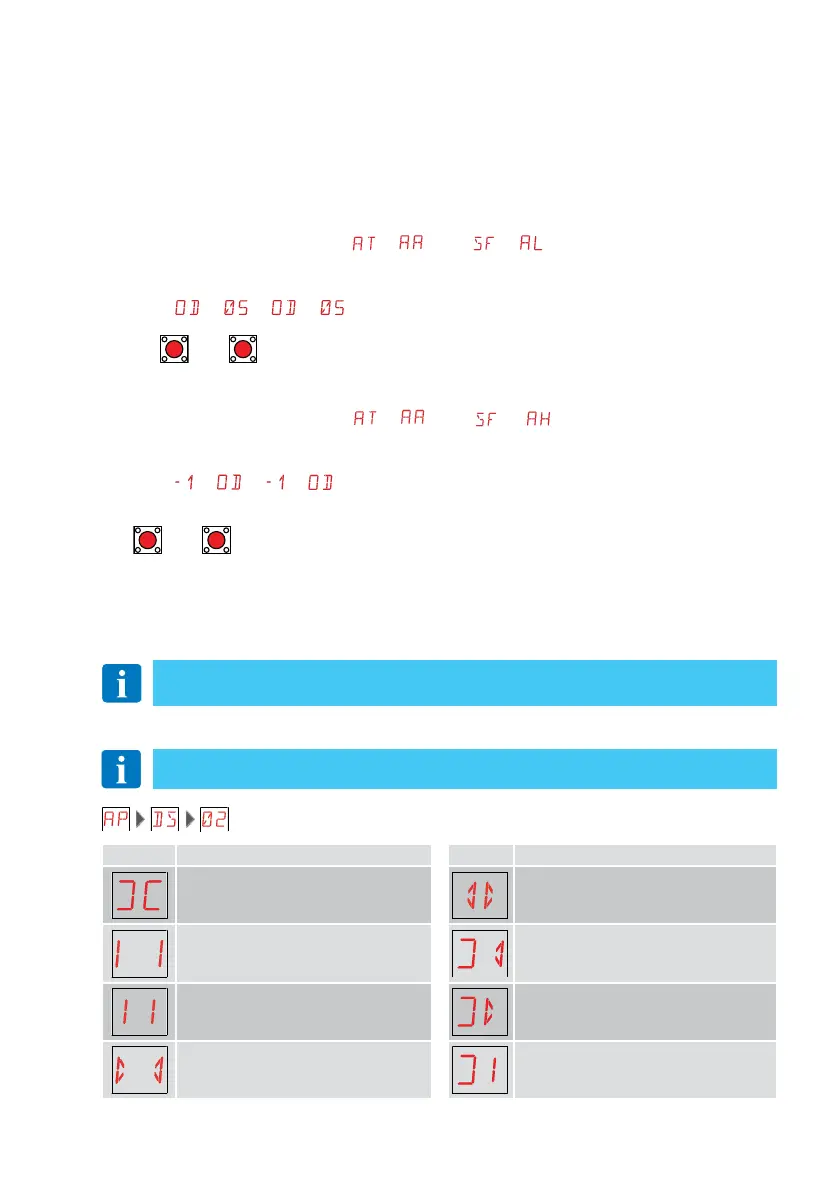

11.1 Display of automation status
NOTE: the automation status display mode is only visible with Display visualisation
mode set to 02.
Display Description Display Description
Automation closed Automation opening
Automation open Automation closing, from partial opening
Automation stopped in intermediate
position
Automation in partial opening
Automation closing Automation partially open
10. Diagnostics
10.1 Data Logging integrated in the board
The Ditec LCA85 control panel is equipped with an internal system which allows the installer to
check whether any alarms have been triggered, see how many times each alarm has been triggered
and view a the log of the last twenty alarms.
10.1.1 Alarm counter
With the third level menus enabled ( → ), go to → to see all the alarms recorded by
the control panel. The display alternately shows the alarm code and the number of times it was
triggered.
Example:
_ _ _ _ ....
Use the
UP
and
DOWN
keys to scroll through the entire list of alarm counters.
10.1.2 Alarm log
With the third level menus enabled ( → ), go to → to see the alarm log (the last 20
alarms recorded). The display shows the alarm number and code, alternated. The highest number
corresponds to the most recent alarm and the lowest number corresponds to the oldest alarm.
Example:
_ _ _ _ ....
Use
UP
and
DOWN
to scroll through the alarm log.
