8. Setting up product for first use
Use the WIZARD (WZ) wizard or the level two AT menu (automatic configuration) to set the product
up rapidly with a quick configuration procedure [see parag. 9.2].
For detailed, customised configuration, use the main menus , , , , , , .
8.1 Wizard configuration menu (WZ)
To access the WZ quick configuration wizard menu:
Hold down the ENTER button for 2 seconds.
Once the message OK stops flashing, the first menu parameter:
To set a parameter:
1. Press ENTER to access the configuration items.
2. Scroll UP/DOWN the possible options.
3. To confirm, press the ENTER button for 2 seconds. The selected value flashes and when it has
finished, the next parameter appears.
List of parameters in WIZARD menu:
→
ENTER
is displayed for 2 sec.

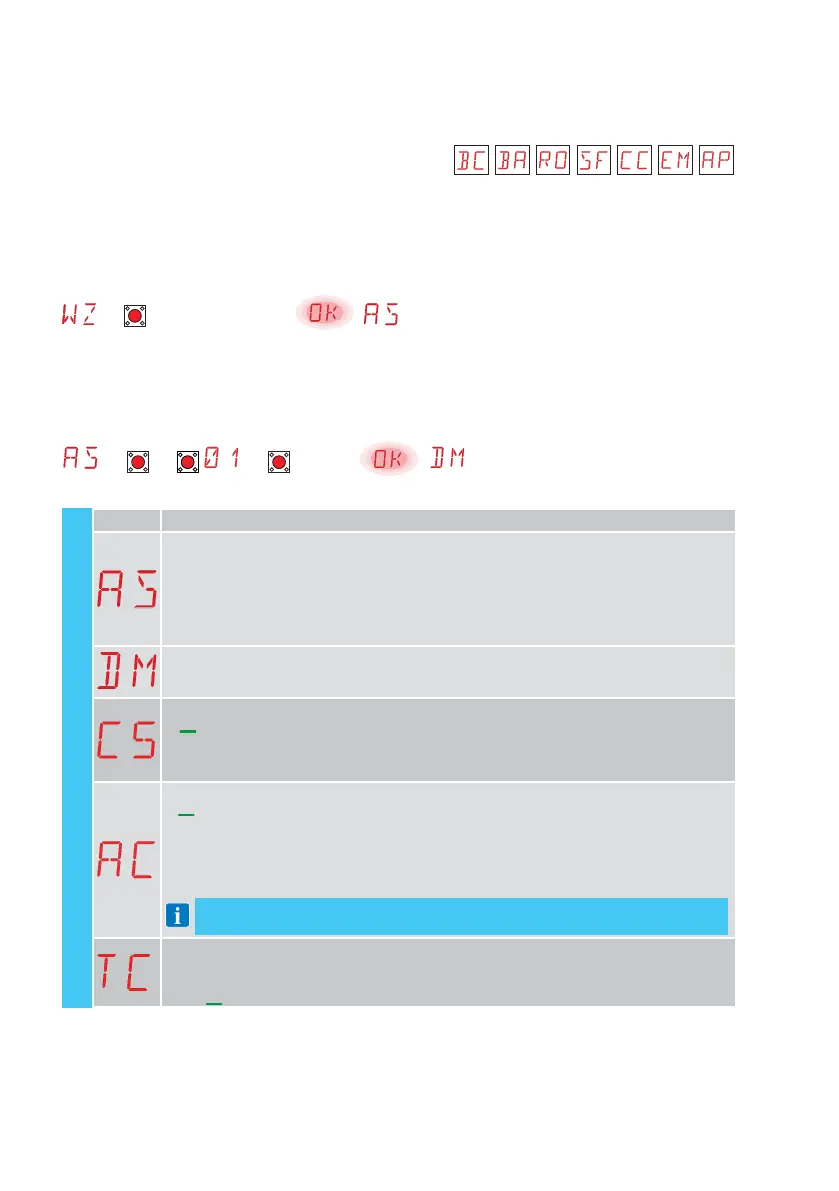

WZ - Quick configuration wizard
Display Description
AS - Motor operating mode
• 01. Generic automation without deceleration (default)
• 02. Sliding gate with deceleration
• 03. Barrier with deceleration
• 04. Sectional door with deceleration
DM - Selection of the direction mode
• LF: opening towards left direction (output axis turns clockwise during opening)
• RT: opening towards right direction (output axis turns counterclockwise during opening)
C5 - Operation of command associated with contact 30-5
• 1-5: step-by-step (default)
• 1-3: opening
• NO: none
• LG: courtesy light
AC - Enabling of automatic closure
• ON: enabled (default)
• OF: disabled
• 1-2: dependent on input 1-2
• hR: push-to-operate “dead man” closure (independently of setting of parameter R9)
• hr: push-to-operate “dead man” closure, obliged until complete closure (independently of
setting of parameter R9)
NOTE: in hr mode if the closure command is removed before reaching the closed position
limit switch, the door/gate re-opens automatically.
TC - Setting of automatic closing time [seconds]
[NOTE: only viewable visible if AC = ON was selected in previous step]
• from 0” to 59” with intervals of 1 second.
• from 1’ (default) to 2’ with intervals of 10 seconds.
To Next Page
