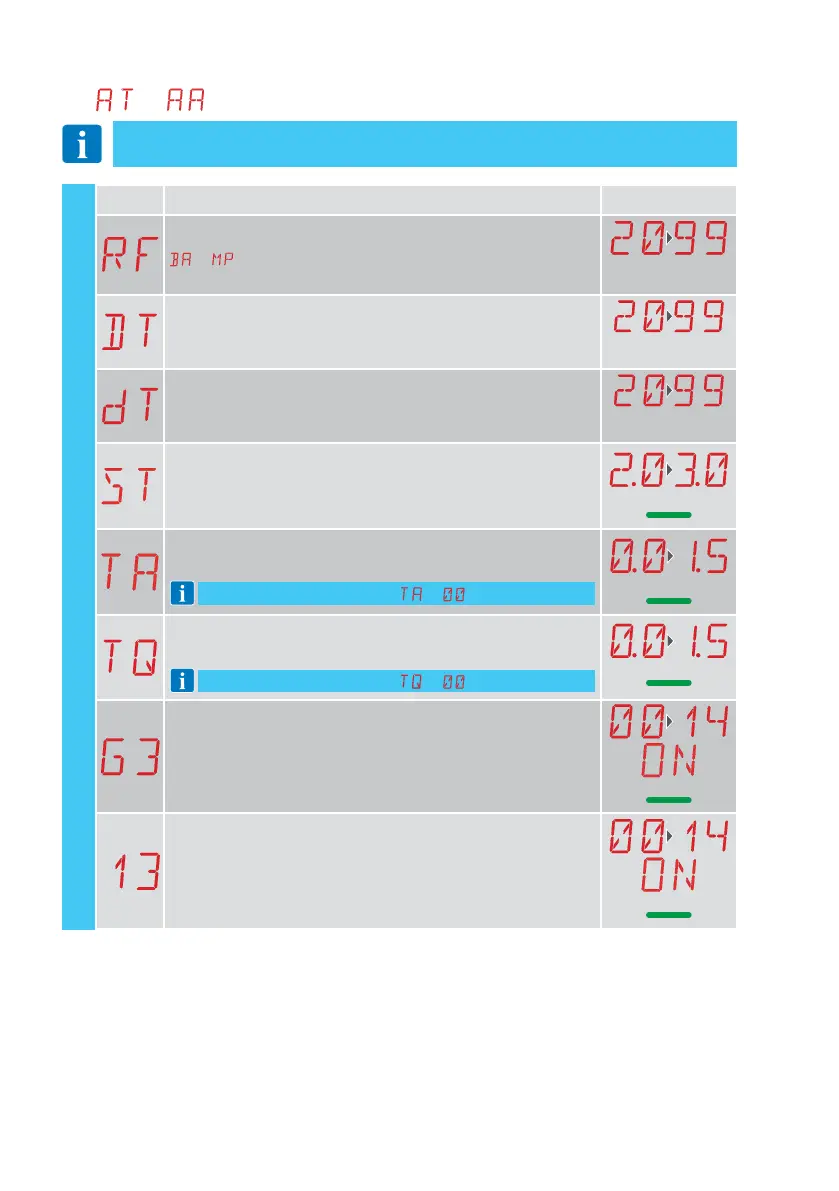

9.4.1 Additional BA level parameters that can be configured (available with
→ enabled)
Display Description Selections available
RF - Motor force adjustment. [%]
It works throughout the stroke, apart from the start phase, if parameter
→ is set to ON.
(Default value depends on
AS setting)
DT - Adjustment of obstacle recognition time at normal speed. [s/100]
20 - Minimum
99 - Maximum
(Default value depends on
AS setting)
dT - Adjustment of obstacle recognition time during deceleration. [s/100]
20 - Minimum
99 - Maximum
(Default value depends on
AS setting)
ST - Adjustment of start time [s]
During start-up, obstacle detection is disabled.
2.0 - Minimum
3.0 - Maximum
2.0
TA - Adjustment of soft-start time during opening [s]
0.0 - Minimum
1.5 - Maximum
Soft-start function disabled with → .
0.0
TQ - Adjustment of soft-start time during closing [s]
0.0 - Minimum
1.5 - Maximum
Soft-start function disabled with → .
0.0
G3 - G3 output operating mode
See tab. 9.4.1
00
13 - 13 output operating mode
See tab. 9.4.1
03
BA - Basic adjustments
NOTE: make adjustments gradually and only after performing at least three complete oper-
ations to allow the control panel to be set correctly and detect any friction during operations.
