9.9 Second level menu - AP (Advanced parameters)

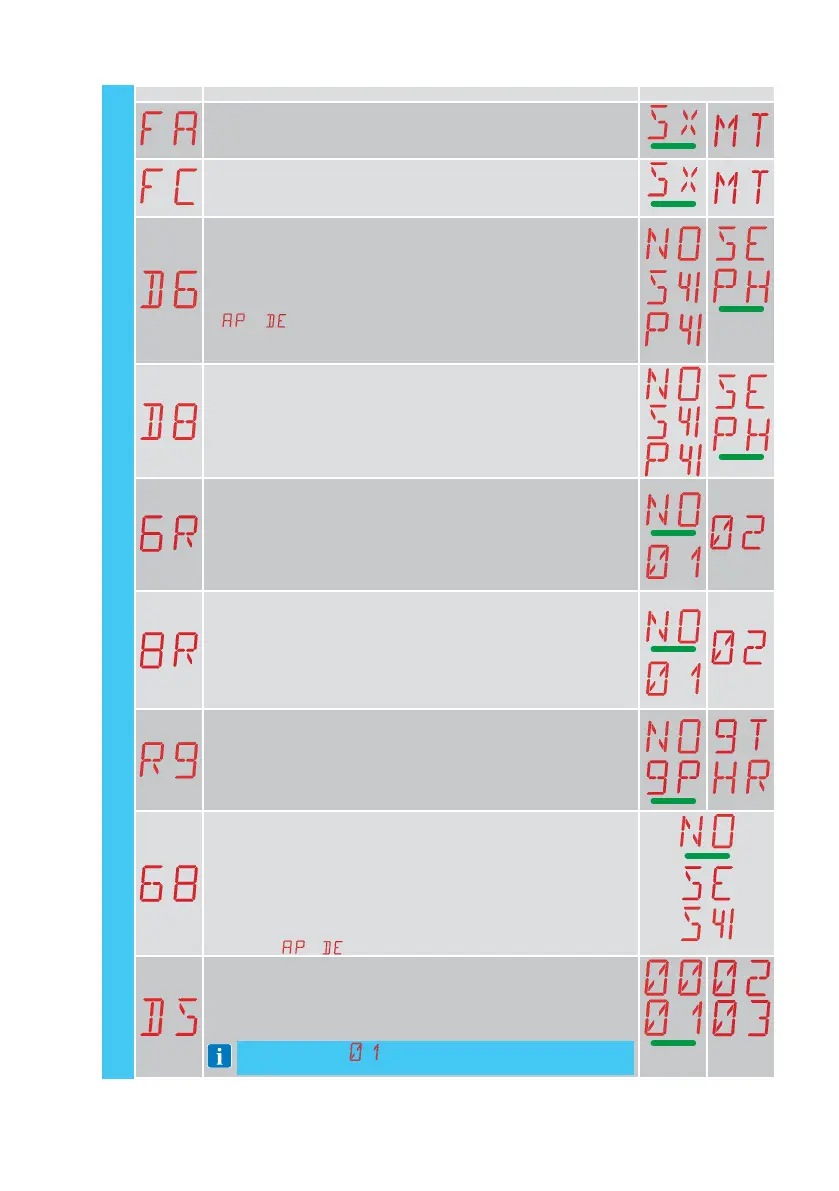

Display Description Selections available
FA - Opening limit switch mode
SX: stop limit switch
MT: stop limit switch series connected to the motor phase
FC - Closing limit switch mode
SX: stop limit switch
MT: stop limit switch series connected to the motor phase
D6 - Selection of device connected to terminals 1-6
NO - None
SE - Safety sensing edge (if contact 1-6 opens, 10 cm disengagement
is implemented after stop).
S41 - Safety edge with safety test (if contact 1-6 opens, after the stop
there is a disengagement of a duration depending on the selection
→ )
PH - Photocells
P41 - Photocells with safety test
D8 - Selection of device connected to terminals 1-8
NO - None
SE - Safety edge
S41 - Safety edge with safety test
PH - Photocells
P41 - Photocells with safety test
6R - Device connected to terminal 6R
NO - None
01 -
Stop with disengagement during both opening and closing operations.
[Once the idle resistance value (8.2K) has been reset, operation is resumed].
02
- During closure, a significant variation in the resistance value above
or below the idle resistance value (8.2K) stops and reverses movement.
When the automation is stationary, all operations are disabled.
8R - Device connected to terminal 8R
NO - None
01 -
Stop with disengagement during both opening and closing operations.
[Once the idle resistance value (8.2K) has been reset, operation is resumed].
02
- During closure, a significant variation in the resistance value above
or below the idle resistance value (8.2K) stops and reverses movement.
When the automation is stationary, all operations are disabled.
R9 - Configuration of input 30-9
NO - Disabled
9P - Open state of an input triggers permanent stop.
9T -
Open state of an input triggers temporary stop. Once contact closes,
automatic closure time (if enabled) is activated.
HR -
Automation operates in "operator present" mode if input is open
68 - Selection of the device simultaneously connected to terminals
1-6 and 1-8
NO - None
SE - Safety edge
S41 - Safety edge with safety test
If different from NO, the simultaneous opening of inputs 1-6 and 1-8 causes:
- movement stop and reversal during a closing operation.
- movement stop and disengagement of a duration depending on the
selection
→ during an opening operation.
DS - Setting of display visualisation mode without alarm
00 - No information displayed.
01 - Countdown to automatic closure displayed.
02 - Automation status (see paragraph 13.1).
03 - Commands and safety devices (see paragraph 13.2).
NOTE: the setting allows you to see when a radio transmis-
sion is received, for range checks.
AP - Advanced parameters
To Next Page
