Dräger Babylog 8000 Service Manual

6173.3 Babylog 8000/8000 plus/8000 SC 12/00 General Page 6
For internal use only. Copyright reserved. GBK61733XXTL1.fm 07.07.05
7 Functional Check
Connect the Babylog 8000/Babylog 8000 plus/Babylog 8000 SC to the central gas
supply and switch on the device.
The software version will be displayed as soon as the self-test has been completed.
8 Testing the Emergency AIR Valve
Switch off the Babylog 8000/Babylog 8000 plus/Babylog 8000 SC and prepare the fol-
lowing test set-up (see Figure below).

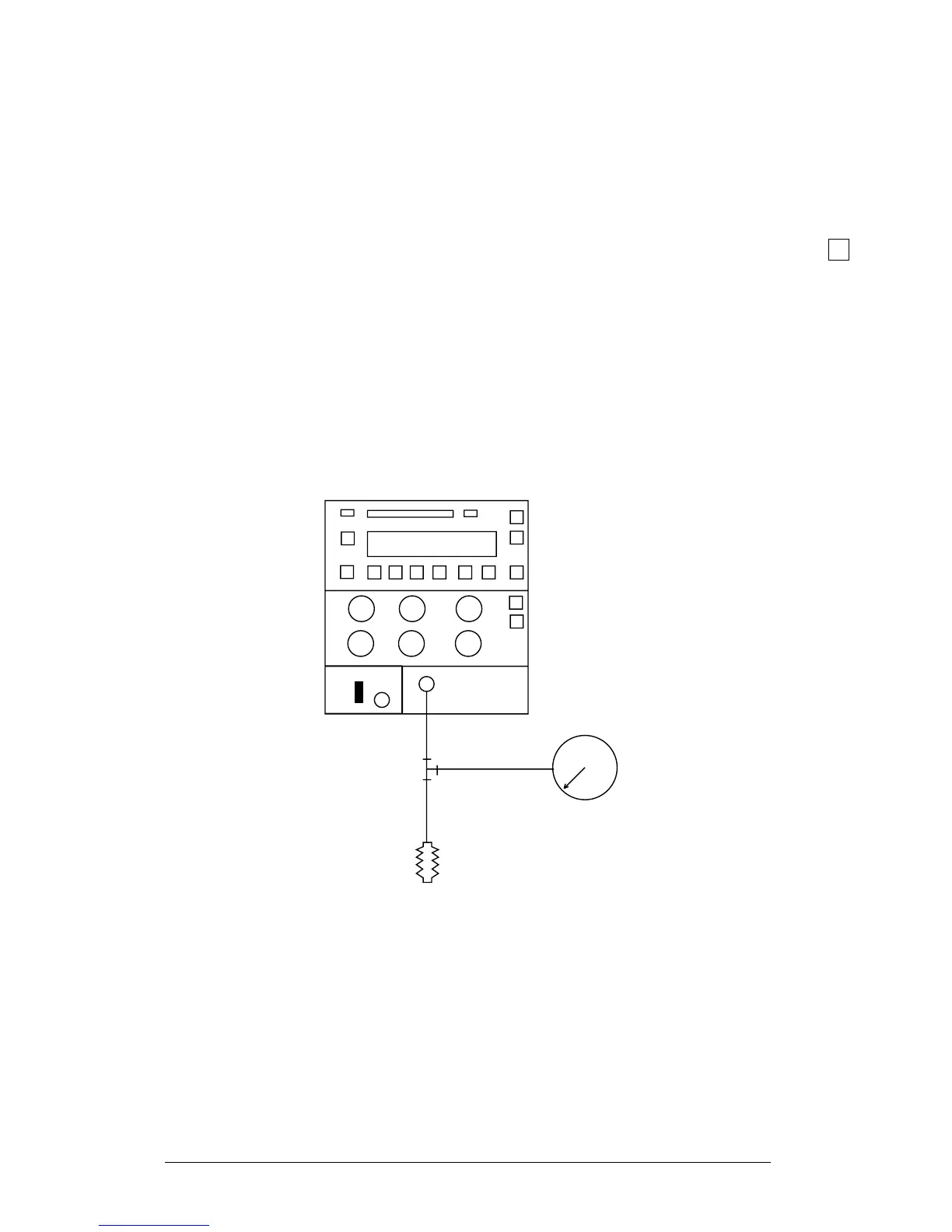

Fig. 1: Emergency AIR Valve
• Slowly pull the test bellows.
The bellows must fill up.
a.) Babylog 8000 SW 2.0 and SW 3.00
The opening pressure is –1.5 mbar to 0 mbar
T-piece
Corrugated hose 100 mm
Bellows
Manometer –30 to 120 mbar
Test set-up

Dräger Babylog 8000 Specifications

General

Leak Compensation	Yes
Type	Ventilator
Pressure Range	0 to 80 mbar
Tidal Volume Range	2-2000 mL
Frequency	1-150 breaths/min
Inspiratory Time	0.1-3.0 sec
PEEP	0 to 20 mbar
FiO2 Range	21-100%
Power Supply	100 to 240 V AC, 50/60 Hz
