Function description Babylog 8000
10.4 I/O PCB
The I/O PCB measures the analog signals O
2
concentration, inspiratory pressure, expiratory pressure,
AIR supply pressure, and O
2
supply pressure, and triggers the loudspeaker and the PEEP/PIP valve.

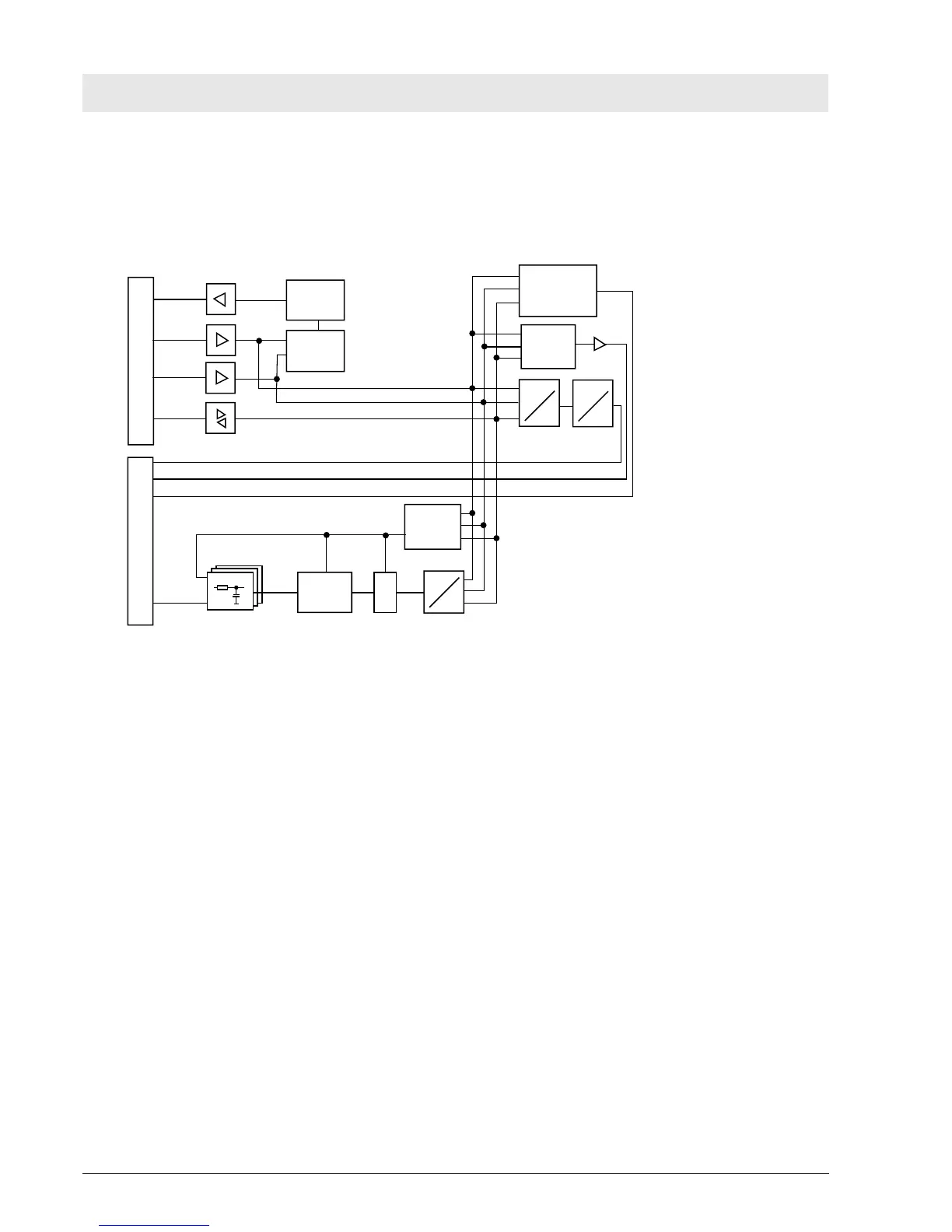

Fig. 17: Block diagram of the I/O PCB
Digital bus 6800
I/O connections
DTACK
Control bus
Adress bus
Data bus
DTACK
generator
Adress
decoder
Control-Bus
Adreß-Bus
Daten-Bus
Sound
generator
D
A
U
I
Muxer
S
&
H
A
D
PIO
Current of the PEEP valve
Parallel/seriell
Converter
Loud speaker
seriel valve datas

Dräger Babylog 8000 Specifications

General

Leak Compensation	Yes
Type	Ventilator
Pressure Range	0 to 80 mbar
Tidal Volume Range	2-2000 mL
Frequency	1-150 breaths/min
Inspiratory Time	0.1-3.0 sec
PEEP	0 to 20 mbar
FiO2 Range	21-100%
Power Supply	100 to 240 V AC, 50/60 Hz
