Dräger Babylog 8000 Service Manual

Dräger Medical AG & Co. KGaA 6173.3
All rights reserved. Copyright reserved.
_ _Printed on_18.05.05_F61733XXT01.fm
49
Function description Babylog 8000
10.11 EL display (Babylog 8000/Babylog 8000 plus with EL Display)
The EL display (Electro Luminescence Display) consists of the EL display, the EL display converter, and the
EL display connecting cable. The EL display displays the signals and other information. The EL display
converter generates the (200-240 V a.c.) voltage for the luminescence voltage of the EL display. The EL
display and the converter are ”matched”.

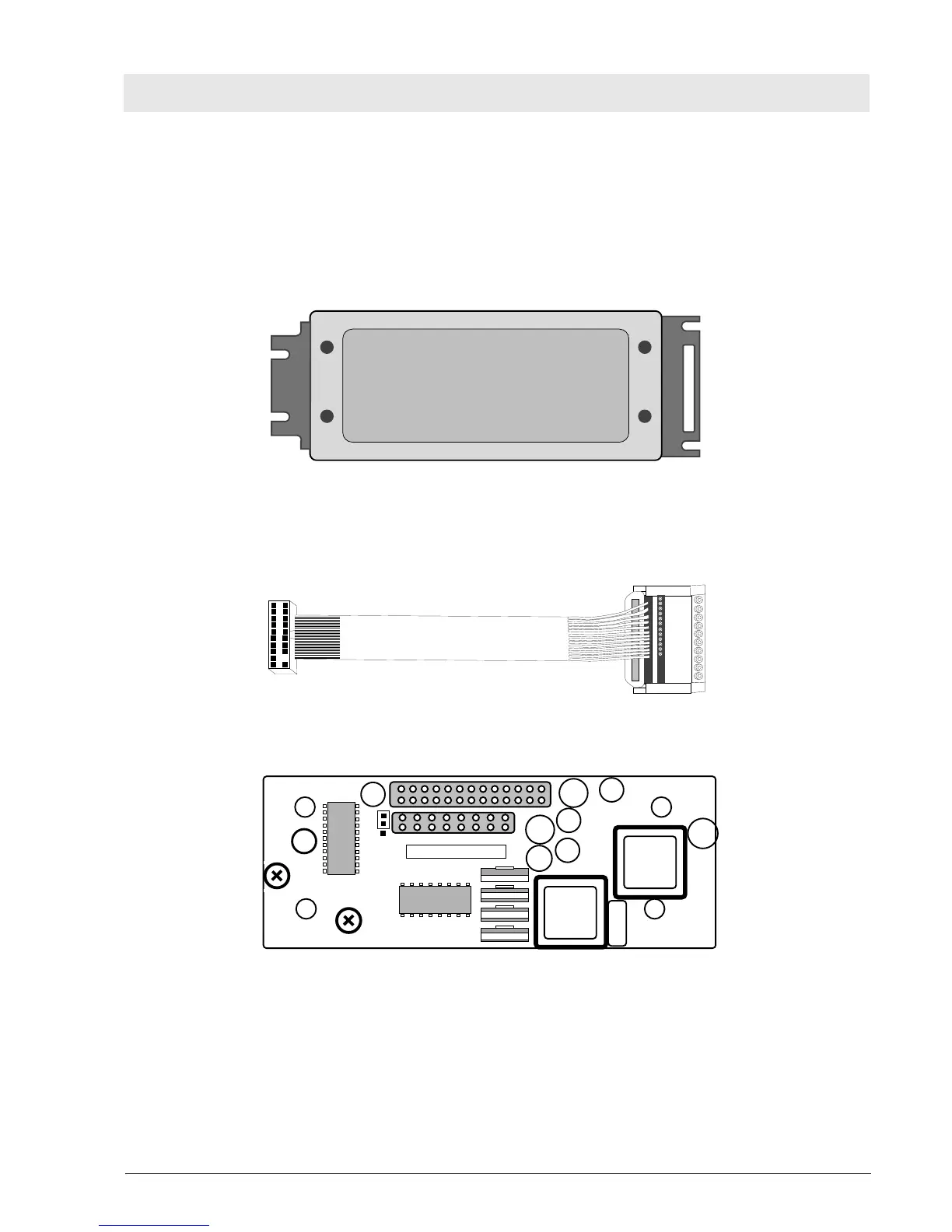

Fig. 25: Components of EL display
pn 45363667
EL display
EL display connecting cable
EL display converter

Dräger Babylog 8000 Specifications

General

Leak Compensation	Yes
Type	Ventilator
Pressure Range	0 to 80 mbar
Tidal Volume Range	2-2000 mL
Frequency	1-150 breaths/min
Inspiratory Time	0.1-3.0 sec
PEEP	0 to 20 mbar
FiO2 Range	21-100%
Power Supply	100 to 240 V AC, 50/60 Hz
