Dräger Babylog 8000 Service Manual

Dräger Medical AG & Co. KGaA 6173.3
All rights reserved. Copyright reserved.
_ _Printed on_18.05.05_GBK61733XXV01.fm
61
Replacing Non-Repairable Items Babylog 8000
3 Replacing the O
2
Sensor Capsule
• Remove the slotted-head screws 1 in the cover on the right-hand side and carefully pull the cover out.
• Pull the spent O
2
sensor capsule out of its mount.
• Insert the new O
2
sensor capsule into the mount (the ring-shaped conductors must show towards the
cover).
• Push the cover in place and secure it with the screws 1.
• Calibrate the O
2
sensor manually.

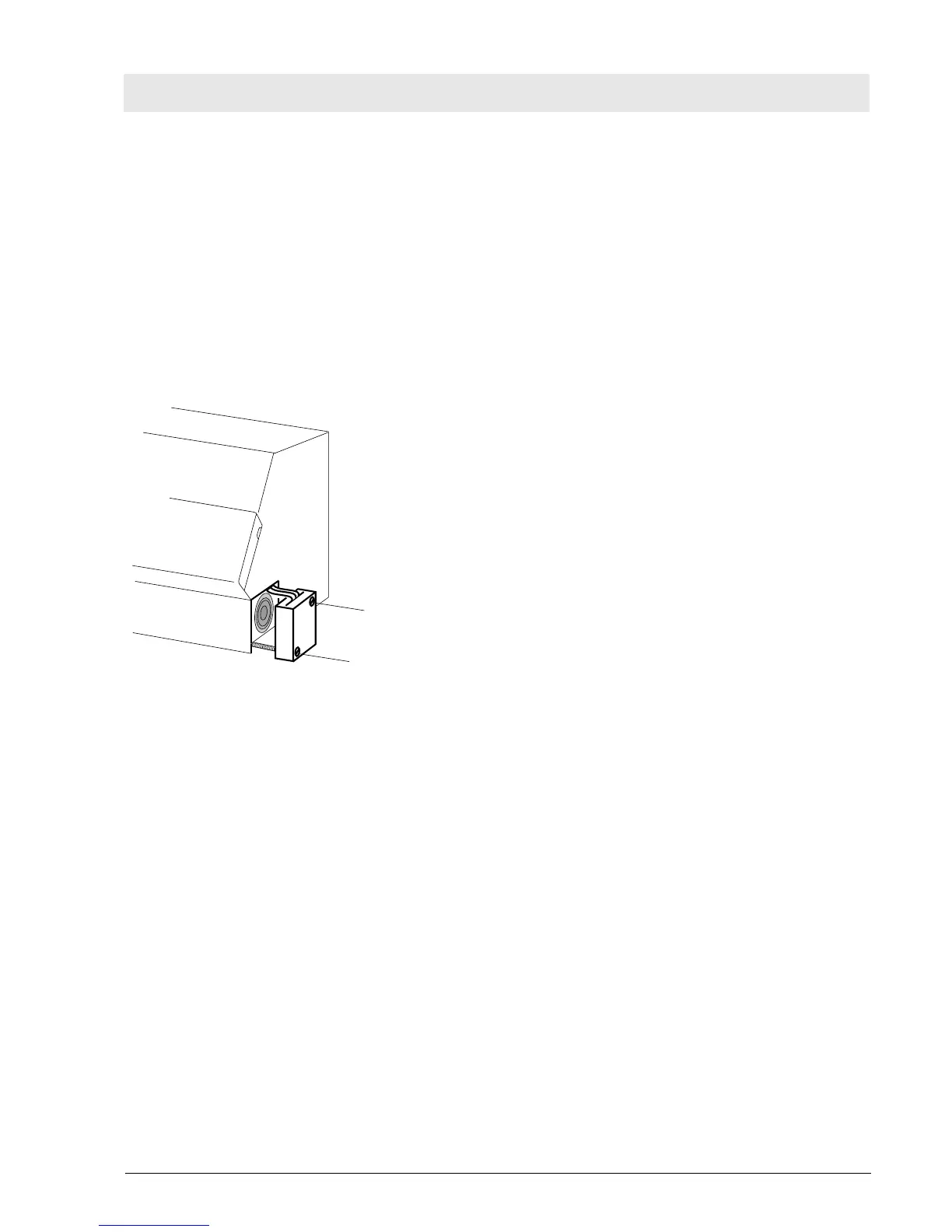

Fig. 2: O
2
Sensor Capsule
3.1 O
2
Sensor Calibration
 Calibration is carried out automatically every 24 hours during operation.
 Calibration should be carried out manually after replacement of the sensor capsule.
 Calibration can be carried out manually at any time.
3.2 Calibrating the O
2
Sensor After Replacement
• Press the key 2 in the main menu.
1
1

Dräger Babylog 8000 Specifications

General

Leak Compensation	Yes
Type	Ventilator
Pressure Range	0 to 80 mbar
Tidal Volume Range	2-2000 mL
Frequency	1-150 breaths/min
Inspiratory Time	0.1-3.0 sec
PEEP	0 to 20 mbar
FiO2 Range	21-100%
Power Supply	100 to 240 V AC, 50/60 Hz
