Babylog 8000 Replacing Non-Repairable Items
4 Replacing the Lip Seals Every 2 Years

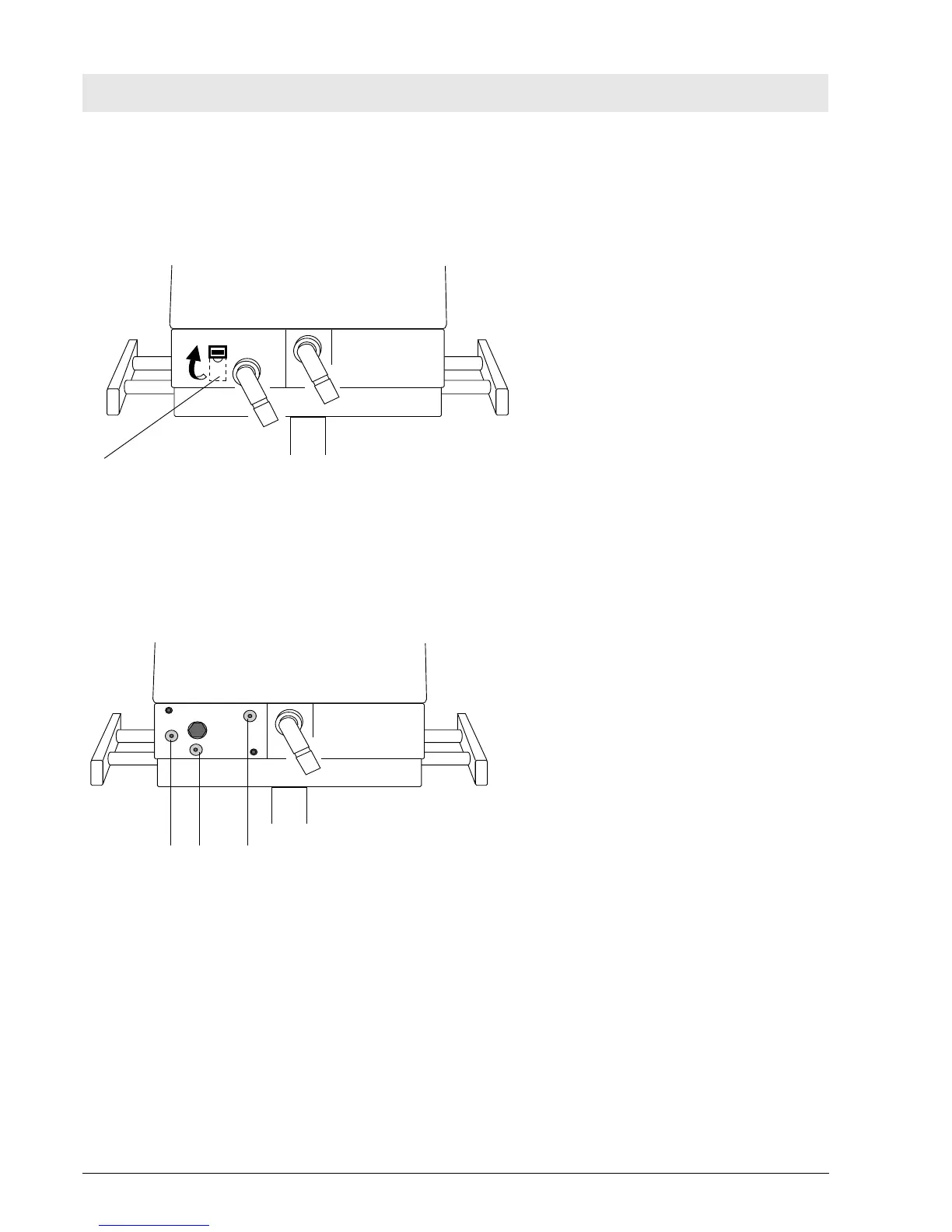

• Lift the toggle 1 and take out the expiratory valve.
Fig. 4: Removing the Expiratory Valve
• Use, for example, a spherical-head 2.5 mm screwdriver to remove the old lip seals 2. Insert the new
lip seals and make sure they fit properly.
Fig. 5: Location of the Lip Seals
• Re-mount the expiratory valve. To do so, lift up the toggle and place the expiratory valve to the front
using the guide rods.
• Lock the expiratory valve with the toggle 1.
D
1
D
2 2
2

Dräger Babylog 8000 Specifications

General

Leak Compensation	Yes
Type	Ventilator
Pressure Range	0 to 80 mbar
Tidal Volume Range	2-2000 mL
Frequency	1-150 breaths/min
Inspiratory Time	0.1-3.0 sec
PEEP	0 to 20 mbar
FiO2 Range	21-100%
Power Supply	100 to 240 V AC, 50/60 Hz
