2 Understanding your Keypad Display
The PowerSeries Neo Alarm System supports a variety of wireless, hardwired and proximity sensor LCD,
LED and Icon keypads. All keypads come equipped with the LED status lights described in section 1
"Quick Reference". HS2LCD series keypads display system messages on their LCD screen. HS2ICN series
keypads display messages as described in 2.1 “Icon and LED Keypad Symbols”. HS2LED series keypads
display messages via a series of numbered LEDs as described in 2.1 “Icon and LED Keypad Symbols”.
All keypad versions will have a solid blue LED bar that is always on steady except when, if enrolled, a
proximity tag is presented to and successfully read by the keypad.

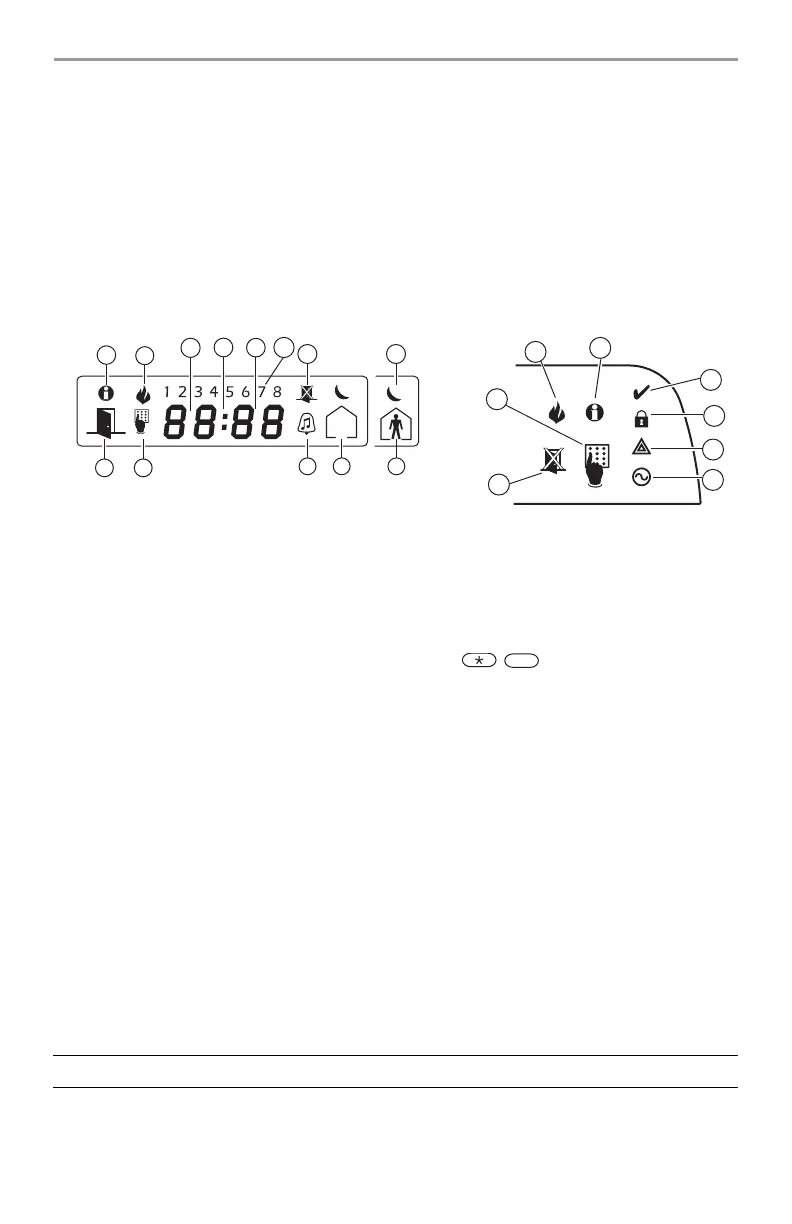

2.1 Icon and LED Keypad Symbols
1Clock Digits 1, 2
These two 7 segment clock digits indicate the hour digits when the local clock is
active, and identify the zone when the OPEN or ALARM icons are active. These two
digits scroll one zone per second from the lowest zone number to the highest when
scrolling through zones.
2 : (Colon)
This icon is the hours/minutes divider and will flash once per second when the local
clock is active.
3Clock Digits 3, 4
These two 7 segment displays are the minute digits when the local clock is active.
41 to 8
These numbers identify troubles when is pressed.
5Memory
Indicates that there are alarms in memory.
6 Bypass
Indicates that there are zones bypassed.
7 Program
Indicates that the system is in Programming mode, or the keypad is busy.
8Away
Indicates that the panel is armed in the Away Mode.
9Fire
Indicates that there are fire and/or CO alarms in memory.
10 Stay
Indicates that the panel is armed in the Stay Mode.
11 Chime
This icon turns on when the Chime function key is pressed to enable Door Chime on
the system. It will turn off when the chime function key is pressed again to disable
Door Chime.
12 OPEN
This icon is used with clock digits 1 and 2 to indicate activated zones (not alarm) on
the system. When zones are opened, the OPEN icon will turn on, and 7 segment dis-
plays 1 and 2 will scroll through the violated zones.
13 AC
Indicates that AC is present at the main panel.
14 System Trouble
Indicates that a system trouble is active.
15 Night
Indicates that the panel is armed in the Night Mode.
16 Ready Light (green)
If the Ready light is on, the system is ready for arming.
17 Armed Light (red)
If the Armed light is on, the system has been armed successfully.
NOTES: For UL listed installations, zones can only be bypassed manually.
