Chapter 2 Basic Operation
Copyright © 2019 Duplo Corporation All Rights Reserved

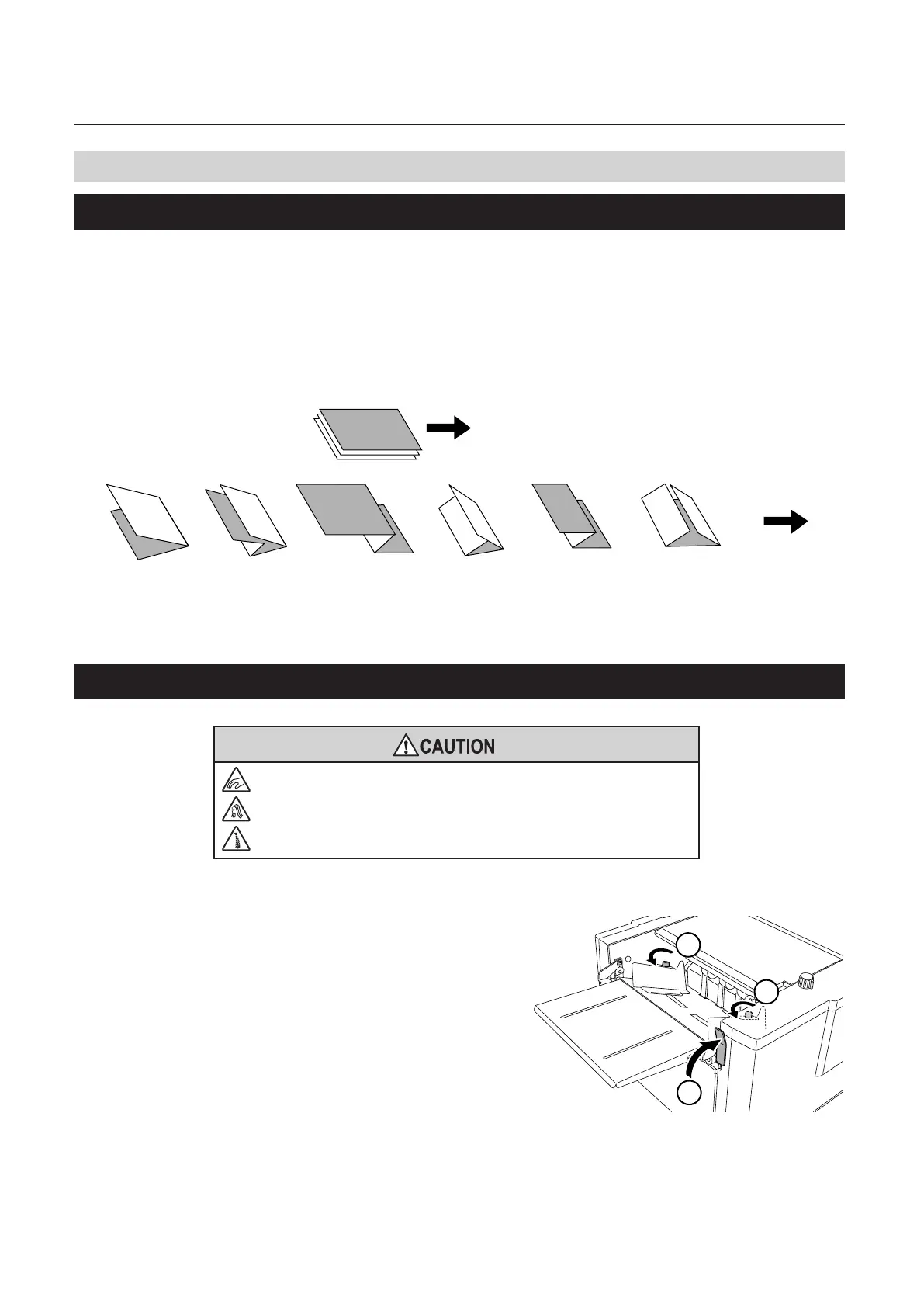

2. Stacking the Paper
2-1. Before stacking paper
Standard folding
Therearesixtypesofstandardfoldingmodes:singlefold,doublefold,irregularaccordionfold(foldout),
letterfold,accordionfold(zfold)andgatefold.Paperisfoldedasshownbelowwhenthepaperisplacedon
the paper feed tray with its print side facing upward.
Whenpaperisstackedwiththegraysurfaceontheobversesideandwhitesurfaceonthereversesideon
the paper feed tray, and processing is completed in the standard folding mode, the folded paper is as shown
inthegure.
Paper feed direction
Ejection
direction
Single
fold
Double
fold
Irregular
accordion fold-out
Letter
fold
Accordion-
fold
Gate fold
2-2. Stacking paper
Do not put ngers inside during operation.
Keep away long hair, ties, jewelry and loose clothing.
It could cause injury.
Steps1and6arenotnecessarywiththeDF-999/DF-999A.Moveontosteps2to5.
1
2
2
1
Raise the paper set lever.
The paper feed stand will come down to the
paper stacking position when the paper set
lever is raised.
2
Loosen the guide fixing screw.
