Chapter4UsingtheDFHANDFEEDKIT
Copyright © 2019 Duplo Corporation All Rights Reserved

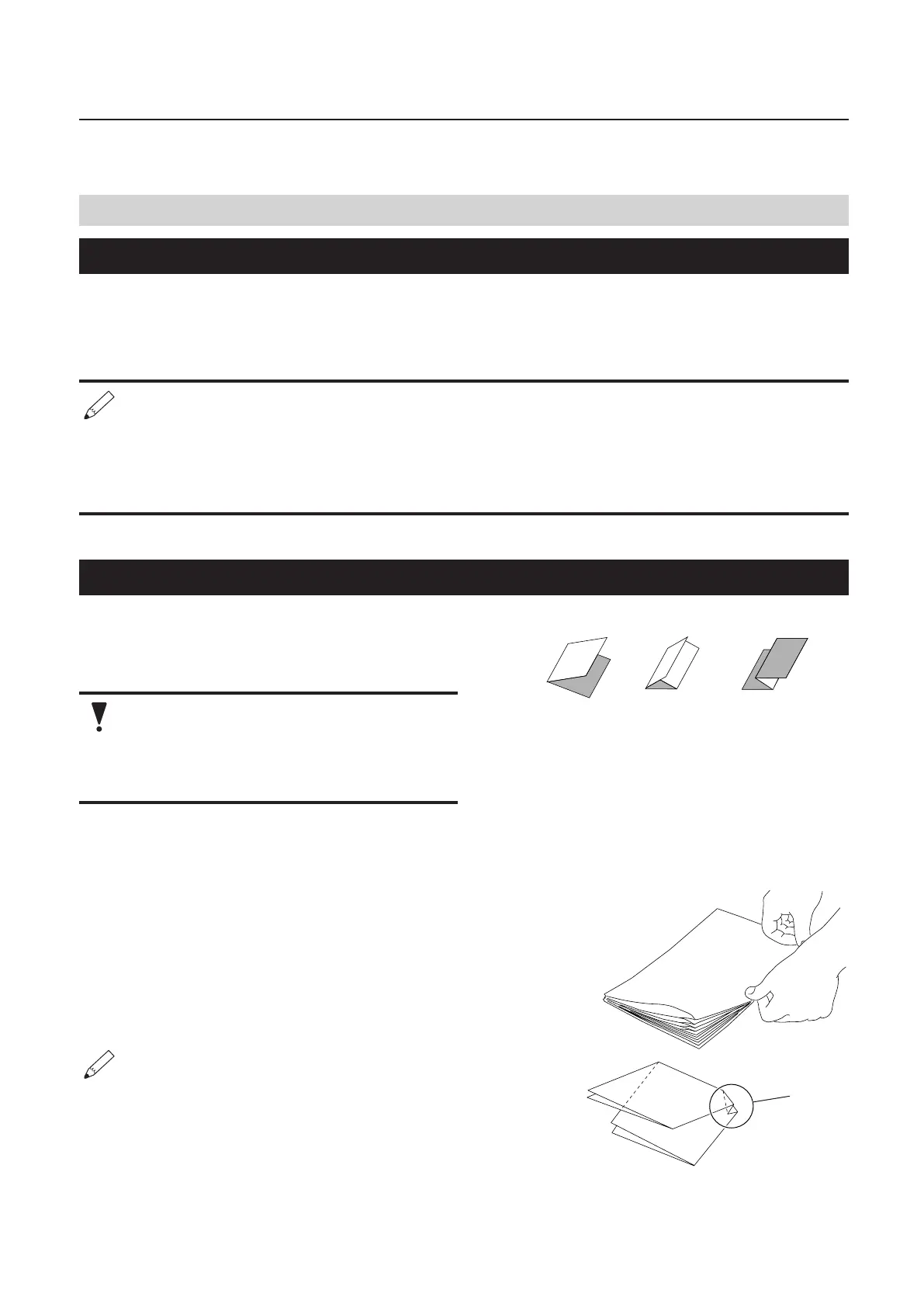

Chapter 4 Using the DF HAND FEED KIT
AtmaximumthreesheetsofpapercanbesimultaneouslyfoldedtogetherbyusingtheDFHANDFEEDKIT.
1. Applicable Paper and Folding Mode
1-1. Paper to be used
Papersize:A4,B5(ForEU)/LTR(ForNA)
Thicknessofpaper:52.3to81.4g/m
2
/35.56to55.35lbs
Thenumberofpapertobefolded:Maximumthreesheetsofpaper.Finequalityshortgrainpaper
64g/m
2
/43.52lbsorless,artpaper,twosheetsofcoatedpaperorless
• Donotuseasmallertypeofpaperthanspecied.Paperjammayoccurinsidethismachine
by using other type of paper and a trouble may be caused.
• Thenumberofsheetsoutoftherangeabovecannotbeprocessed,andthinnerorthicker
sheets cannot be used. Deformed folding may be performed, and paper jam may occur in this
machine by processing more sheets, or using thinner or thicker sheets than specified, and a
trouble may be caused.
1-2. Folding modes
Single fold
Letter fold
Accordion-fold
• Singlefold
• Letterfold
• Accordion-fold
When performing letter fold of thick paper,
the folded paper opens at the ejecting
section, and it cannot be conveyed under
the stacker roller, which may result in an
error.
Using A3 or B4 size single folded paper (cross fold)
Cross fold is available only for a single fold
sheet.Morethanonesheetofsinglefold
paper cannot be used.
Pressthefoldedsectionrmlyandperform
paper folding operation. The paper feeding
state will be unstable if the folded line is not
foldedrmly.
∑ dent
• FoldedpapermayresultinΣdent
depending on the paper type and stretch of
the folded section. This is not a malfunction
of the machine.
• Whenfoldingsingle-foldedpaperby
manual feeding, folding may not be
completed properly depending on the
paperthicknessandstinessatthefolded
section. Check in advance using the paper
to be used.
