Chapter 6 Trouble Guide
Copyright © 2019 Duplo Corporation All Rights Reserved

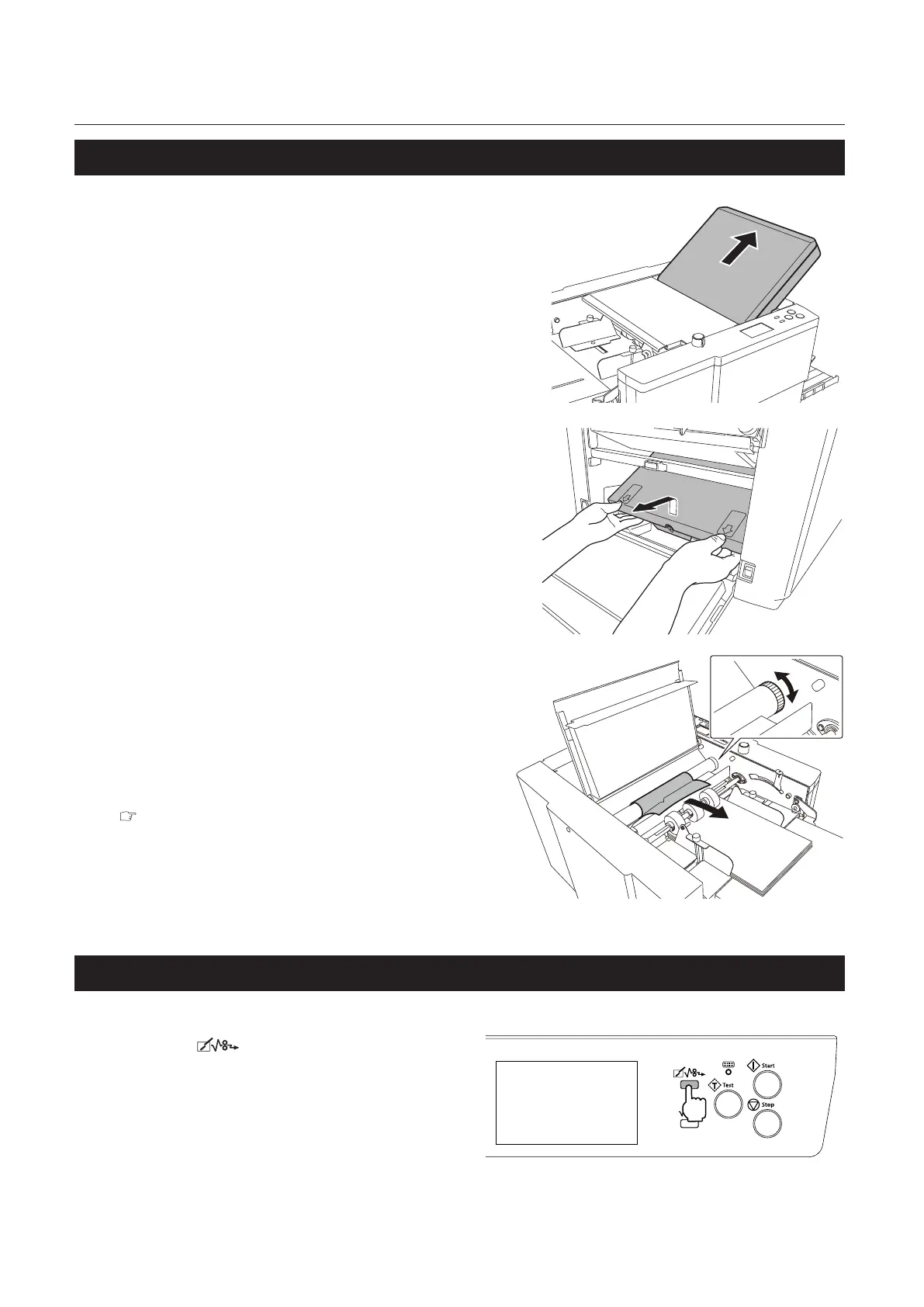

2-2. Folding roller
1
Take out the folding plate 1.
2
Open the side cover.
3
Take out the folding plate 2.
4
Open the top cover.
5
Pull out the paper rotating the jam
correction knob.
6
Close the top cover.
7
Insert the folding plate 1 and folding
plate 2.
Chapter 1 “2-3. Installation procedures” (p.5)
8
Close the side cover.
The side cover will not be closed if the folding
plate 2 is not attached correctly.
2-3. Folding plate
Press the key.
Ejectforciblythepaperinsidethefolding
plate.
Forcibleejectioninthefoldingplatewillnot
stop until the folding stopper returns to the
home position, as the folding stopper moves,
even if the key is not held.
Evenifthepaperisnotremovedafterforcibleejection,checkthepositionofpaperjamtoremovethepaper
with the following method.
