QS Series Basic Operator's Guide
4
5
2
3
1

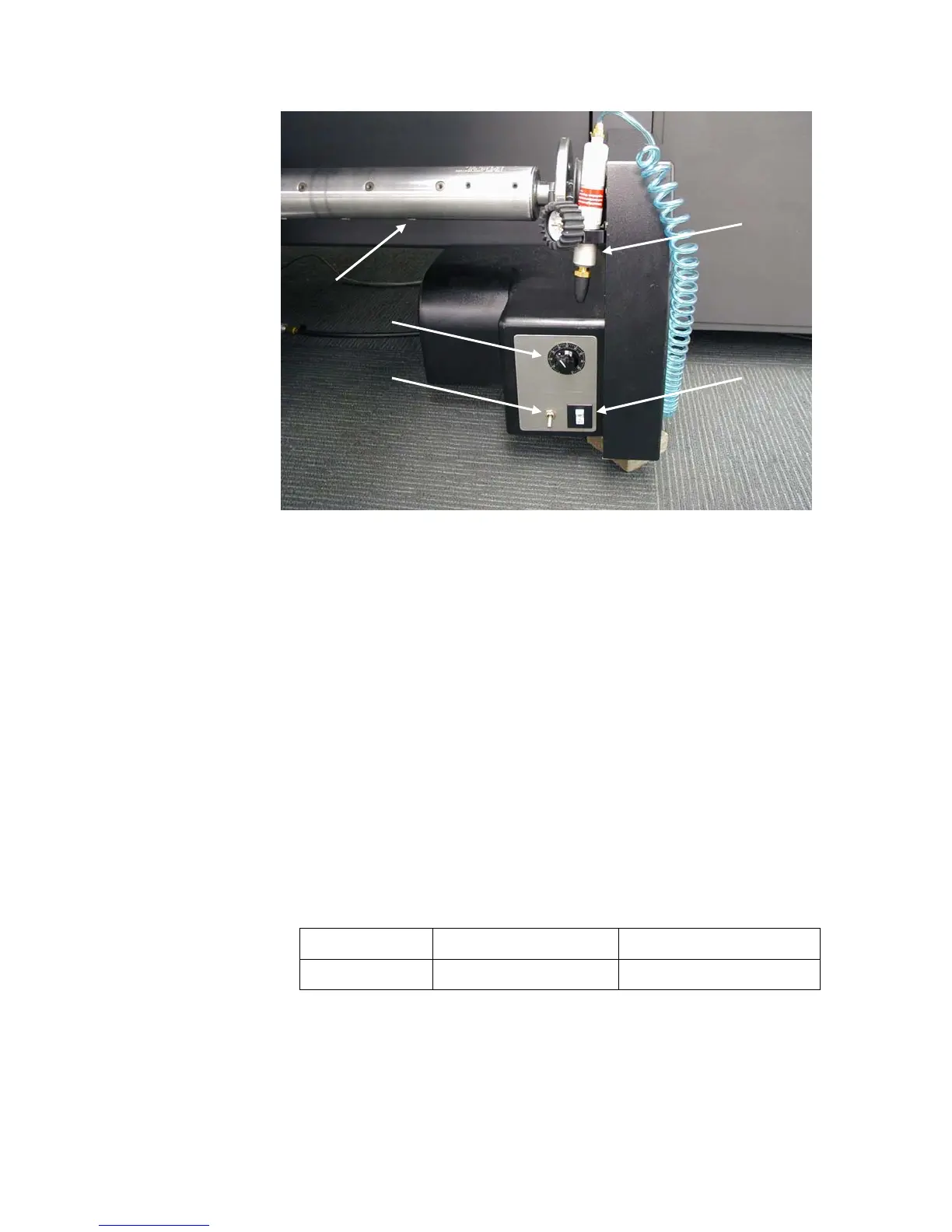

Key
1 Directional toggle switch
2 Tension/speed knob
3 Power switch
4 Air nozzle
5 Air core shaft
The directional toggle switch determines the direction in
which the air core shaft turns (and the direction from which
the media feeds off the air core shaft). The switch’s center
position is “off,” allowing the air core shaft to spin freely.
The tension knob adjusts the amount of tension on the rolled
end of the media. Adjust the speed at which the air core shaft
turns to control the tension.
Slower Reduces tension Counter clockwise
Faster Increases tension Clockwise
The power switch turns power to the winder attachment on
and off.
