QS Series Basic Operator's Guide

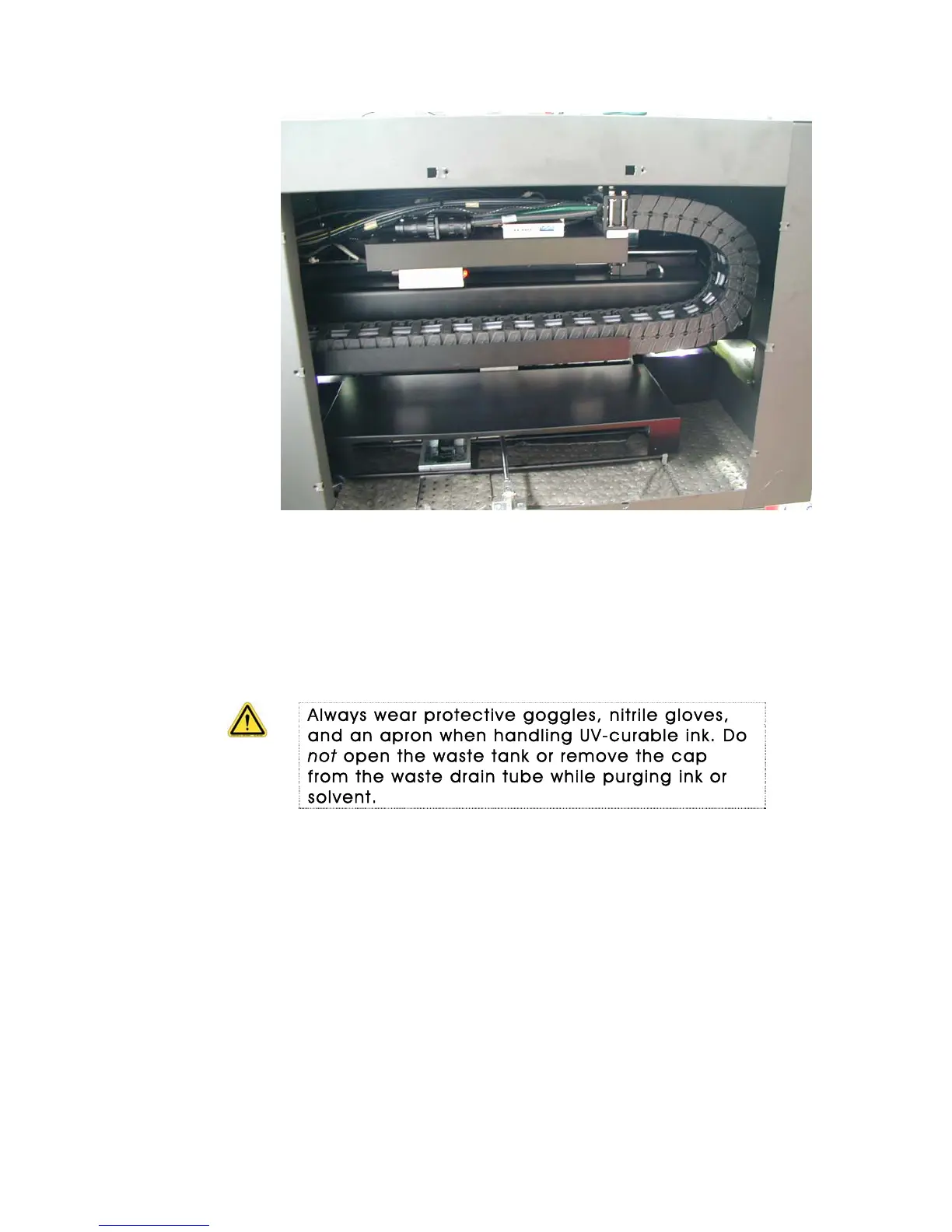

Umbilical assembly
Quarterly
Additional cleaning tasks must be performed every three
months (quarterly).
These procedures should take about 90 minutes to complete.
Always wear protective goggles, nitrile gloves,
and an apron when handling UV-curable ink. Do
not open the waste tank or remove the cap
from the waste drain tube while purging ink or
solvent.
1. Remove dust from the power supplies, servo controllers,
and the enclosure fans.
2. Clean ink residue off the lens, reflector, and bulb on the
UV lamp housings.
3. When you’re done, enter the date, time and your initials
in the Maintenance Log.
Dust removal
Dust accumulation on the printer electronics can cause
intermittent problems which may result in print defects or
printer downtime. Because dust accumulates naturally over
time, it is important to clean the electrical compartment on a
OMM-00038-US English-F 55
