QS Series Basic Operator's Guide
If the safety chuck will not unlock, the air core shaft is not
in the correct position.
3. Carefully lift the air core shaft out of the cradle and place
the air core shaft on the floor.

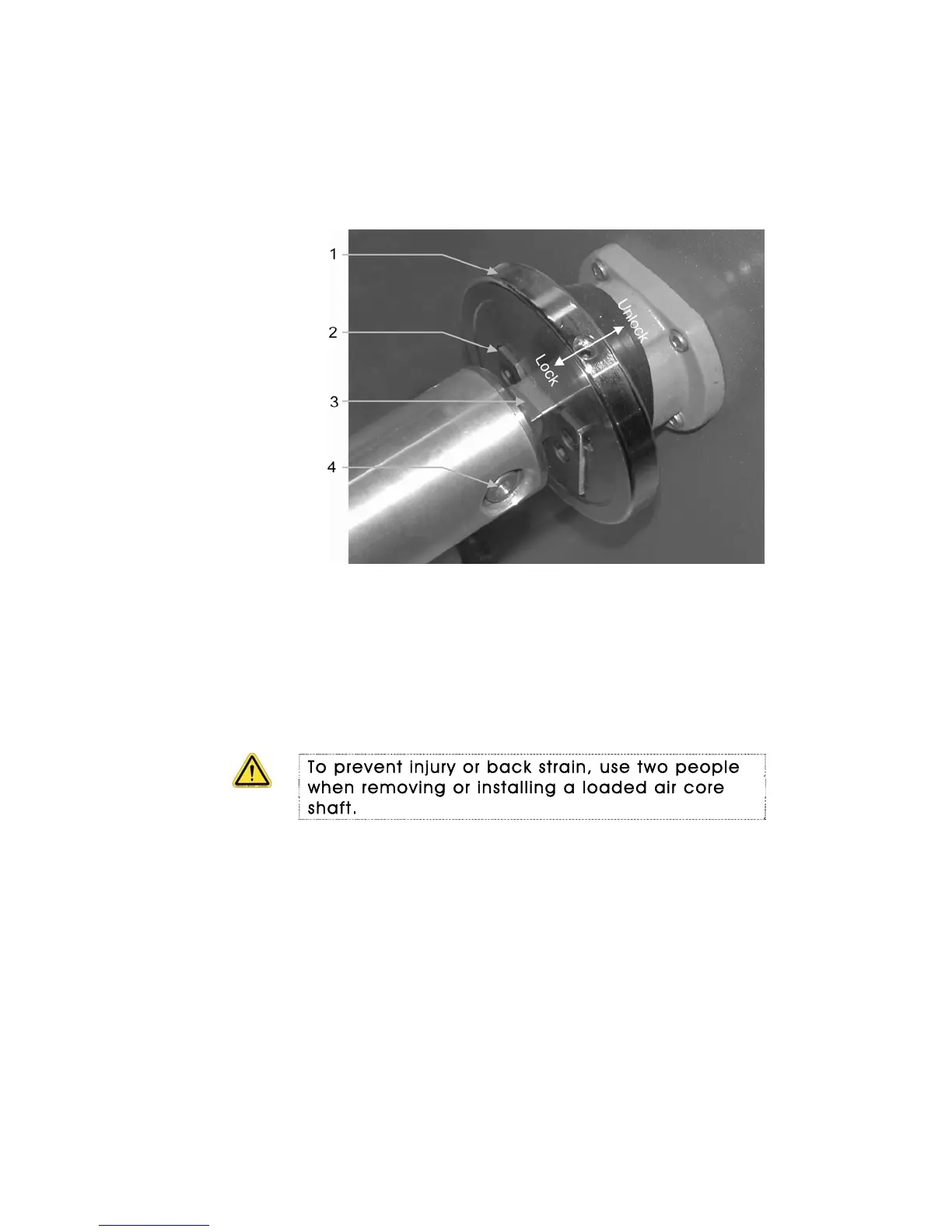

Key
1 Safety chuck
2 Shaft cradle
3 Shaft end
4 Air core inlet
To prevent injury or back strain, use two people
when removing or installing a loaded air core
shaft.
4. Remove the old media roll from the air core shaft.
5. Slide the air core shaft into the new media roll.
6. Lift the air core shaft and media roll and insert the air
core shaft’s ends into the square slot in the shaft cradle.
7. Lock the air core shaft in place by pulling the top of each
safety chuck inward towards the center of the air core
shaft.
8. Align the collar on the air core shaft to the left media
fence stop.
9. Push the media up to the collar on the air core shaft.
18 OMM-00038-US English-F
