EMC CLARiiON DAE2P User Manual

Replacing a power supply/system cooling module
3-21
Servicing a DAE2P/DAE3P
To protect a running system from overheating, the enclosure will time
out unless you replace the power/cooling module within two minutes.

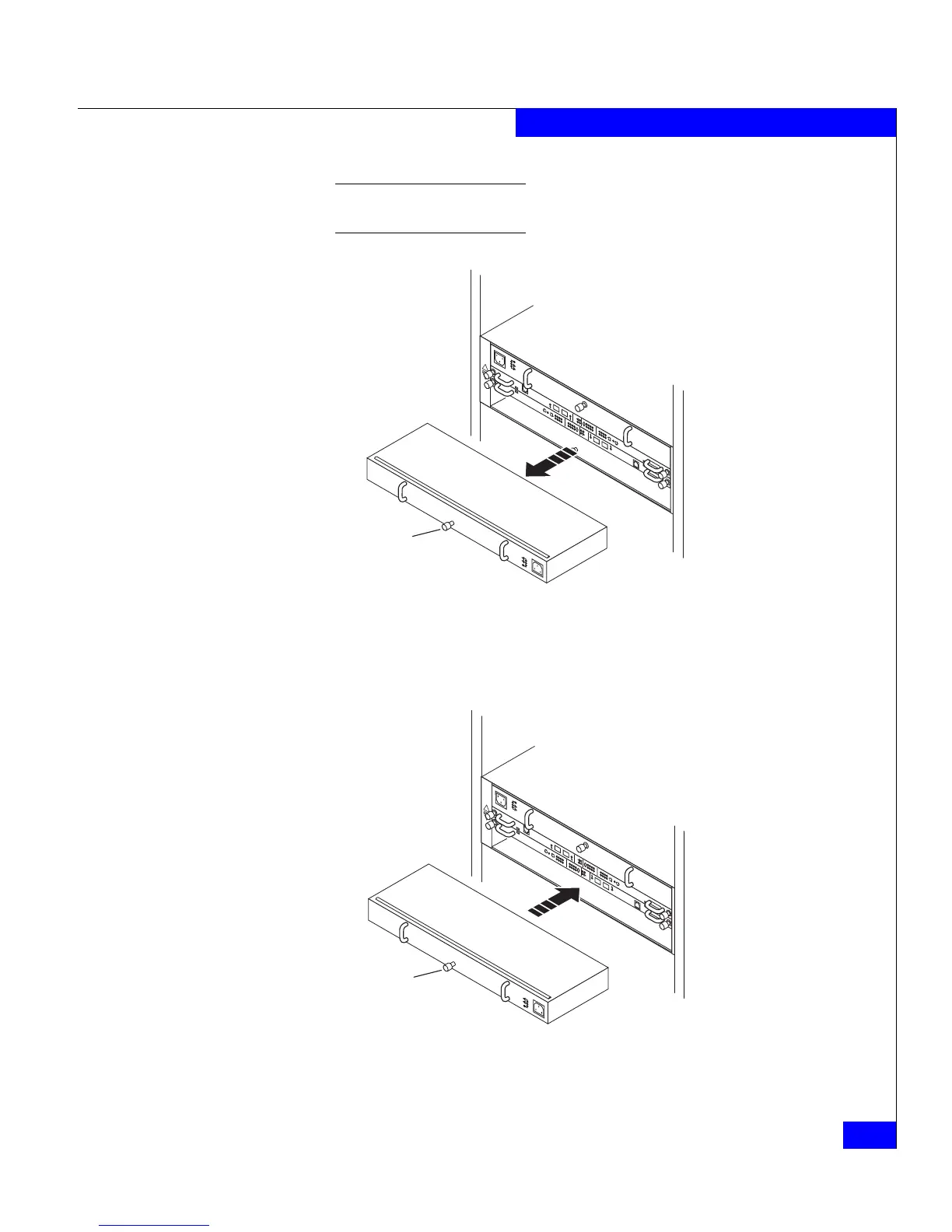

Figure 3-16 Removing a power/cooling module
3. Gently insert the new power/cooling module into the enclosure,
as shown in Figure 3-17. Be sure the module is completely seated.
Figure 3-17 Installing a power/cooling module
4. Secure the module with the captive screw.
!!
!
EXP PRI
EXPPRI
#
!
EXP PRI
EXPPRI
#
A
B
EMC3228
!!
Captive Screw
!!
!
EXP PRI
EXPPRI
#
!
EXP PRI
EXPPRI
#
A
B
EMC3182
!!
Captive Screw
