Supported mainframe features
235
Mainframe Features and Support
Supported FICON devices and logical paths
Enginuity 5772 supports 16,384 addresses per port and 8,192 logical
paths. Figure 53 on page 235 shows a sample configuration.

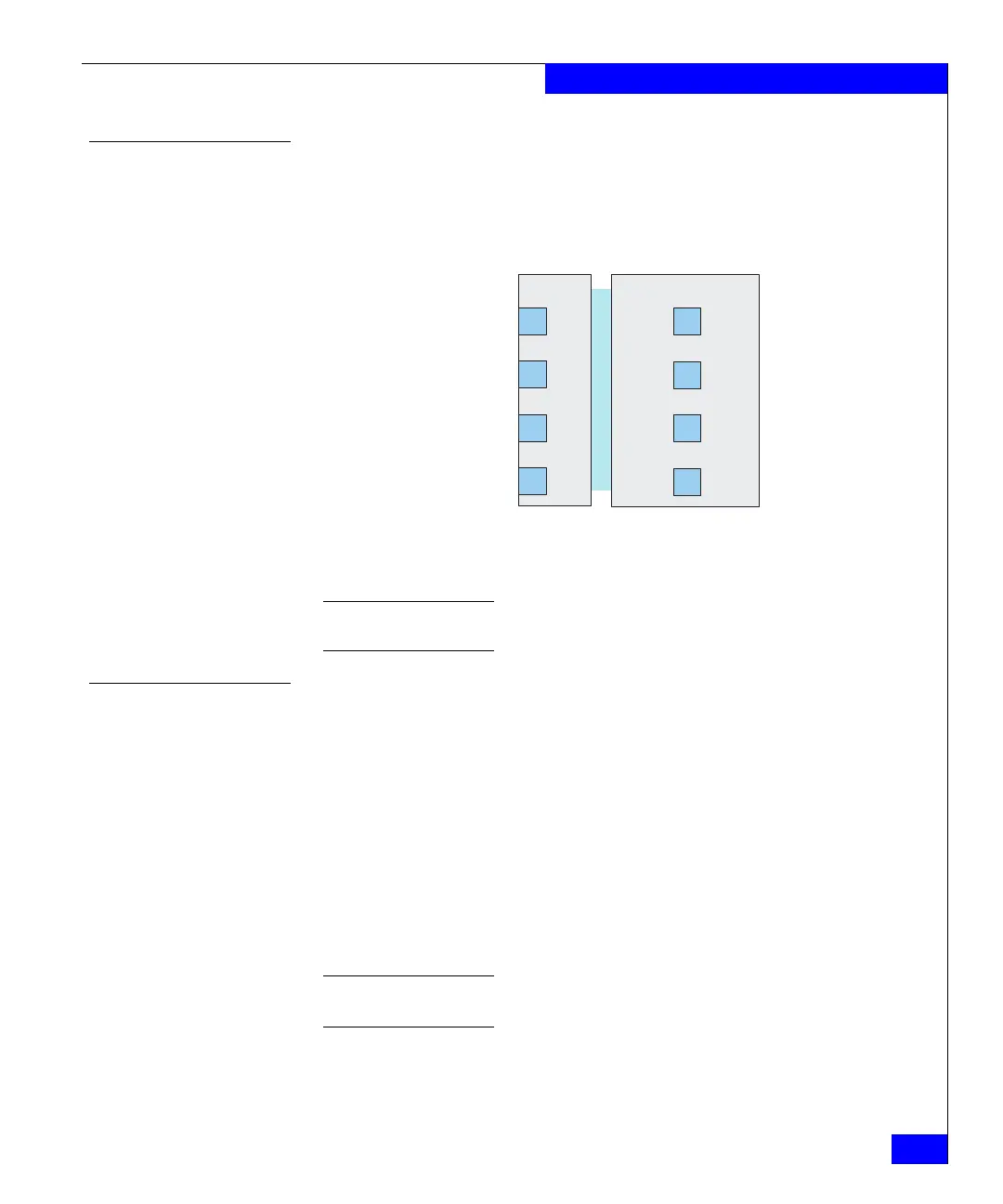

Figure 53 Supported FICON logical paths per port
Note: “FICON channel director” on page 80 contains more FICON director
configuration information.
IBM MetroMirror
(PPRC)
Enginuity level 5772 enables the Symmetrix system to support native
IBM MetroMirror Peer-to-Peer Remote Copy (PPRC) commands
through a Symmetrix feature called Compatible Peer. PPRC is the
remote copying solution available with IBM storage systems
Figure 54 on page 236. Enginuity supports PPRC version 1,
architecture level 2 CGROUP FREEZE/RUN functionality. Enginuity
level 5771 adds support for PPRC version 1, architectural levels 3 and
4 Hyper-Swap support, including failover/failback functionality. As
a result, Symmetrix systems will support these capabilities in IBM’s
Geographically Dispersed Parallel Sysplex (GDPS) solution.
Compatible Peer is available on Symmetrix systems with connections
to ESCON or FICON hosts.
Note: Contact your local EMC representative for specific details regarding
your Symmetrix system's support for Compatible Peer.
SYM-000090A
Multiprotocol director
8,192 logical paths *
d
c
b
a
Processor
complexes
Midplane
Adapter
Ports
* Up to 16,384 channel addresses can be configured accessible to a
FICON adaper port at Enginuity code 5772.
D0
C0
B0
A0
8,192 logical paths *
8,192 logical paths *
8,192 logical paths *
To Next Page
