EMC Symmetrix DMX-3 Product Guide
Planning and Installation
Symmetrix DMX-3 power requirements
The DMX-3 requires three-phase AC power. Each DMX-3 system bay
and storage bay has two power zones providing (2N) redundancy. A
fully populated system supports eight power supply modules.
Note: “Symmetrix DMX-3 power subsystems” on page 86, “Electrical
specifications and power requirements” on page 270, and “Power and
cooling data” on page 269 provide more information on power
requirements.
The customer is responsible for supplying and installing the required
receptacles on two separate power distribution units (PDUs) for Zone
A and Zone B power for the Symmetrix DMX-3 system bay and each
storage bay in advance of delivery. Figure 69 and Figure 70 on
page 289 show the required power cabling for the Symmetrix DMX-3
system bay and each storage bay.

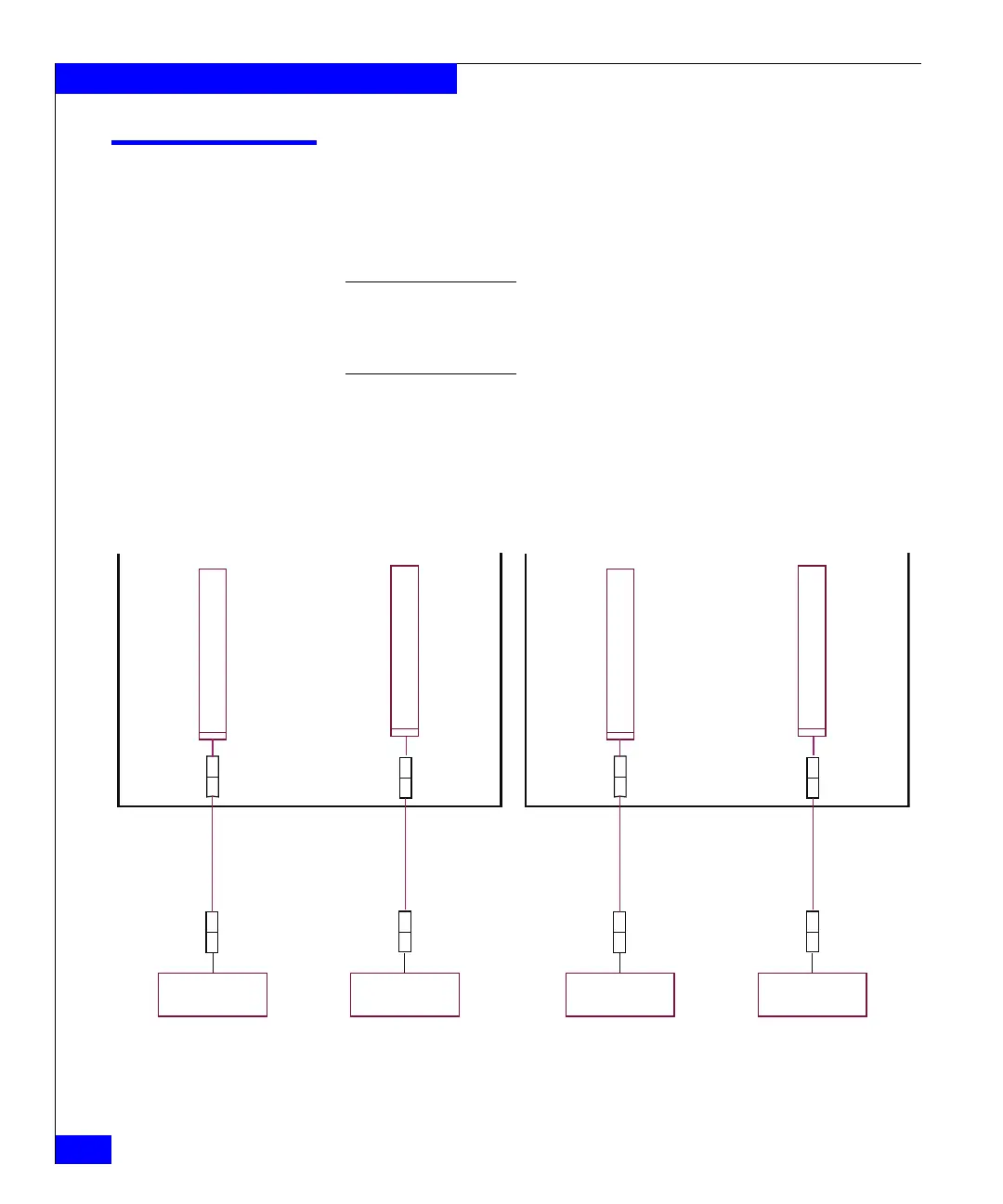

Figure 69 DMX-3 system bay and storage bay to customer
PDU power cabling
Zone B
AC input
cable B
Cable connectors are shown as
they exit the bottom rear of the
DMX bays.
This cabling is internal
to the DMX bays.
The customer’s AC power feeds
are connected to these two
three-phase connectors.
DMX storage bay
rear view
Zone A
AC input
cable A
Zone B PDP
(left)
Zone A PDP
(right)
15 ft.
Extension cord
15 ft.
Extension cord
Customer’s power
distribution unit
number B
Customer’s power
distribution unit
number A
Zone B
AC input
cable B
Cable connectors are shown as
they exit the bottom rear of the
DMX bays.
This cabling is internal
to the DMX bays.
The customer’s AC power feeds
are connected to these two
three-phase connectors.
DMX system bay
rear view
Zone A
AC input
cable A
Zone B PDP
(left)
Zone A PDP
(right)
15 ft.
Extension cord
15 ft.
Extension cord
Customer’s power
distribution unit
number B
Customer’s power
distribution unit
number A
