Emerson Process Management GmbH & Co. OHG 3-25
X-STREAM Non-Incendive
Instruction Manual
HASXENE-IM-EX
12/2014
3
Startup
3.9 Checking the Settings
Press LEFT until SETUP is displayed, then
open ALARMS - CONCENTRATION
3.9.5 Setting Concentration Alarms
Four concentration limits can be set for each
channel:
"Lo" and "Hi" enframe the expected gas
concentration,
"LoLo" equals or is below "Lo",
"HiHi" equals or is above "Hi".
See the fi gure to the left for an explanation.
If you enter values for any threshold, the
above given order has to be considered. A
message is displayed, if an entered value
does no comply with this condition.
Note!
If concentration alarms are not being used,
continue with
3-26.
Should the measured concentration go bey-
ond one of the threshold levels (areas B, C, D
& E in the fi gure), a message is displayed in
the message line of the measurement display,
the NAMUR pictogram appears (bell) and a
corresponding digital output is activated, if
assigned.
A hysteresis avoids oscillating alarms in
case the concentration is fl uctuating around
a threshold.

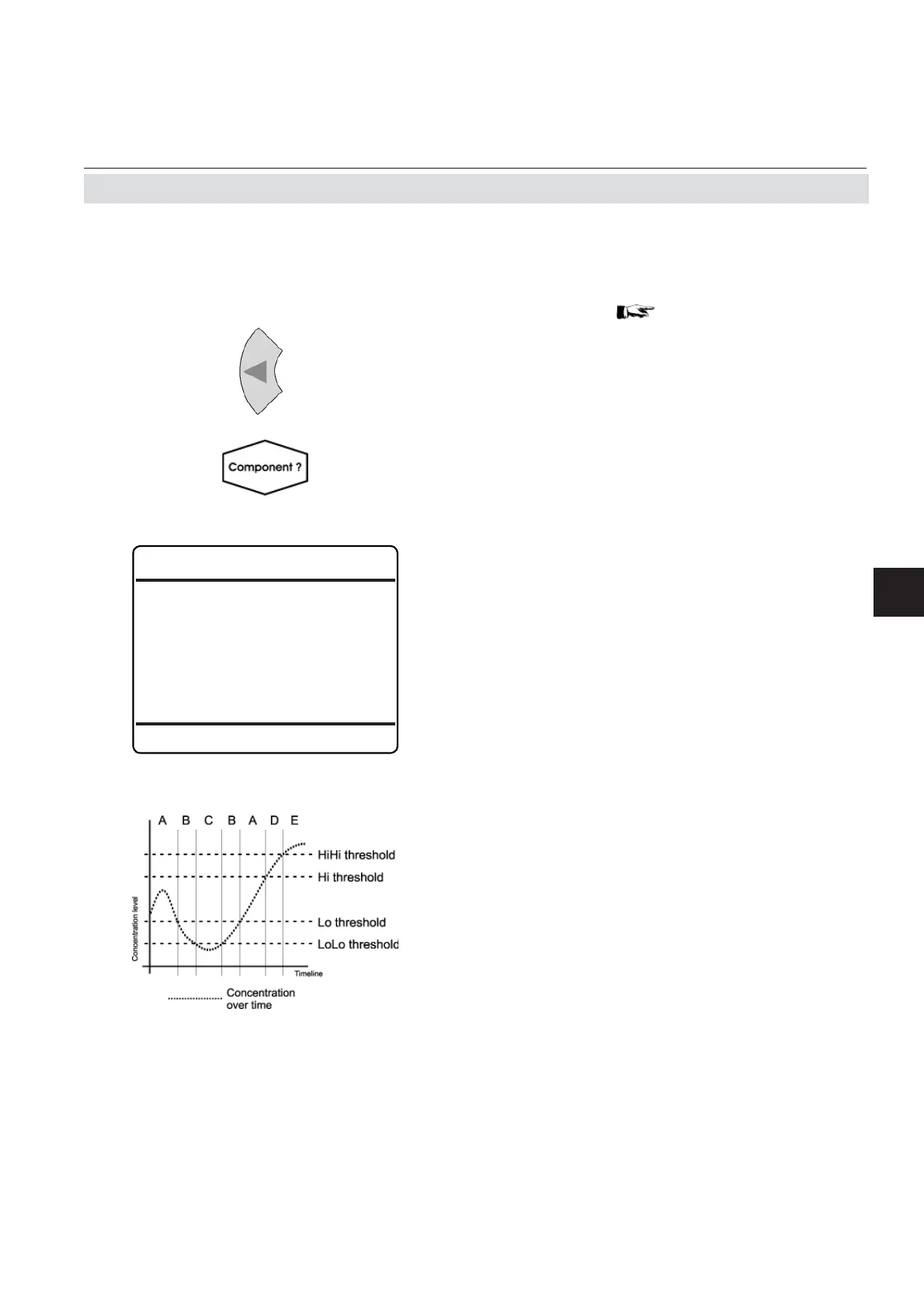

Fig. 3-5: Arrangement of Concentration Thresholds
Multi-channel unit:
Select the channel to be setup in SELECT
COMPONENT.
Ch1
Concentration
Alarm Monitor: On
LoLo Level: 50.000 ppm
Lo Level: 100.000 ppm
Hi Level: 400.000 ppm
HiHi Level: 600.000 ppm
Hysteresis: 10.000 ppm
States..
Note!
HiHi and LoLo designate pre-alarms,
Hi and Lo designate main alarms.
To Next Page
