6.7 INTERFACE BOARDS

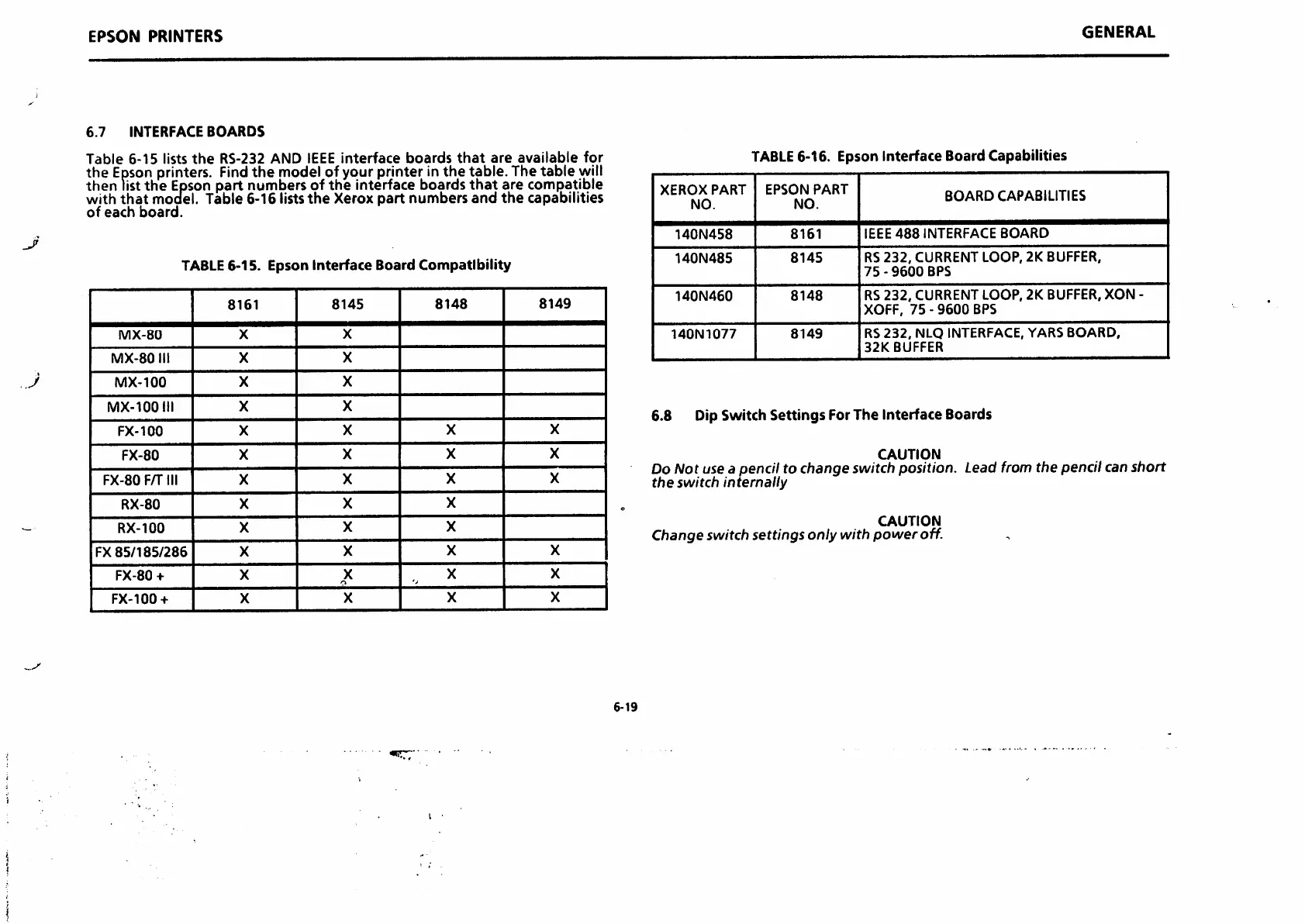

Table 6-15 lists the RS-232 AND IEEE interface boards that are available for
the Epson printers. Find the model of your printer inthe table. The table will
then listthe Epson part numbers of the interface boards that are compatible
with that model. Table 6-16 lists the Xerox part numbers and the capabilities
of each board.
TABLE 6-15. Epson Interface Board Compatibility
8161
8145
8148
8149
MX-80
X
X
MX-80 III
X
X
MX-100
X
X
MX-100III
X
X
FX-100
X
X
X
X
FX-80
X
X
X
X
FX-80 FA*III
X
X
X
X
RX-80
X
X
X
RX-100
X
X
X
FX 85/185/286
X
X
X X
FX-80 +
X
X
o
X
X
FX-100 +
X
X
X
X
6-19
GENERAL
TABLE 6-16. Epson Interface Board Capabilities
XEROX PART
NO.
EPSON PART
NO.
BOARD CAPABILITIES
140N458
8161
IEEE 488 INTERFACE BOARD
140N485
8145
RS 232, CURRENT LOOP. 2K BUFFER.
75-9600 BPS
140N460
8148
RS 232, CURRENT LOOP. 2K BUFFER,XON -
XOFF, 75 - 9600 BPS
140N1077 8149
RS 232, NLQ INTERFACE, YARS BOARD,
32K BUFFER
6.8 Dip Switch Settings ForThe Interface Boards
CAUTION
Do Not use a pencil to change switch position. Lead from the pencil can short
CAUTION
i pencil r(
the switch internally
Changeswitch settings only with power off.
