Epson TM-L90 series User Manual

Appendix A-6 General Specifications Rev.B
Confidential
Electrical Specifications
Dimensions and Mass
Operating voltage: +24 VDC
±
7% (optional power supply: EPSON PS-170
or PS-180)
Pin assignments for the power
connector:
Height: Approx. 203 mm {7.99"}
Width: Approx. 140 mm {5.51"}
Depth: Approx. 148 mm {5.83"}
Weight: Approx. 1.9 kg {4.19 lb} (not including paper)

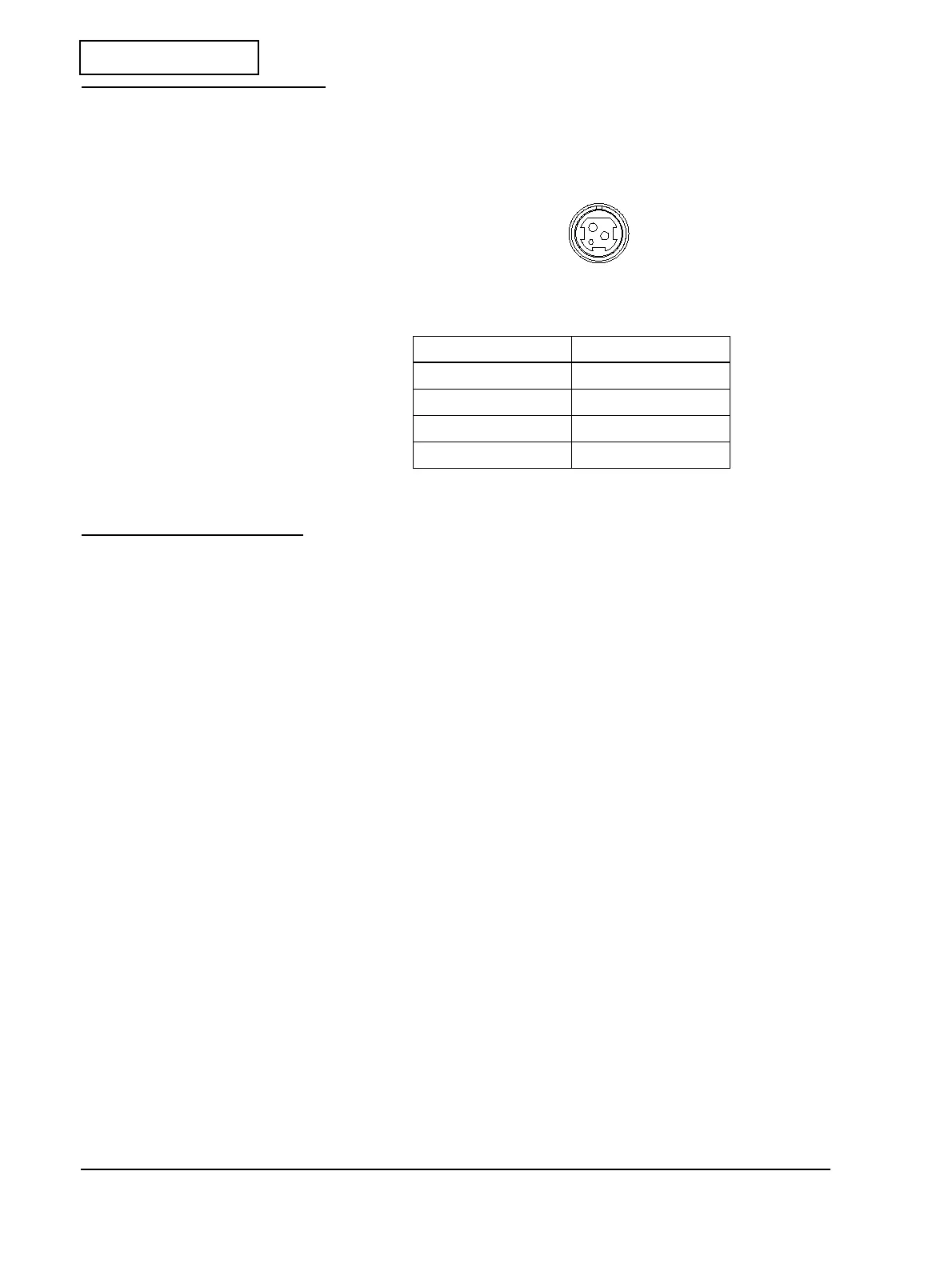

Table A-2 Pin assignment for the power connector
Pin # Function
1 +24V
2GND
3N.C.
SHELL F.G.
1
2
3
