Rev.C Disassembly and Assembly 3-15
TM-L90 Service Manual
Confidential
Disassembly and Assembly of the Printer Mechanism
Note:
The term “printer mechanism” is used only for convenience in this document; there are no parts in the
actual product that use this name.
First Level

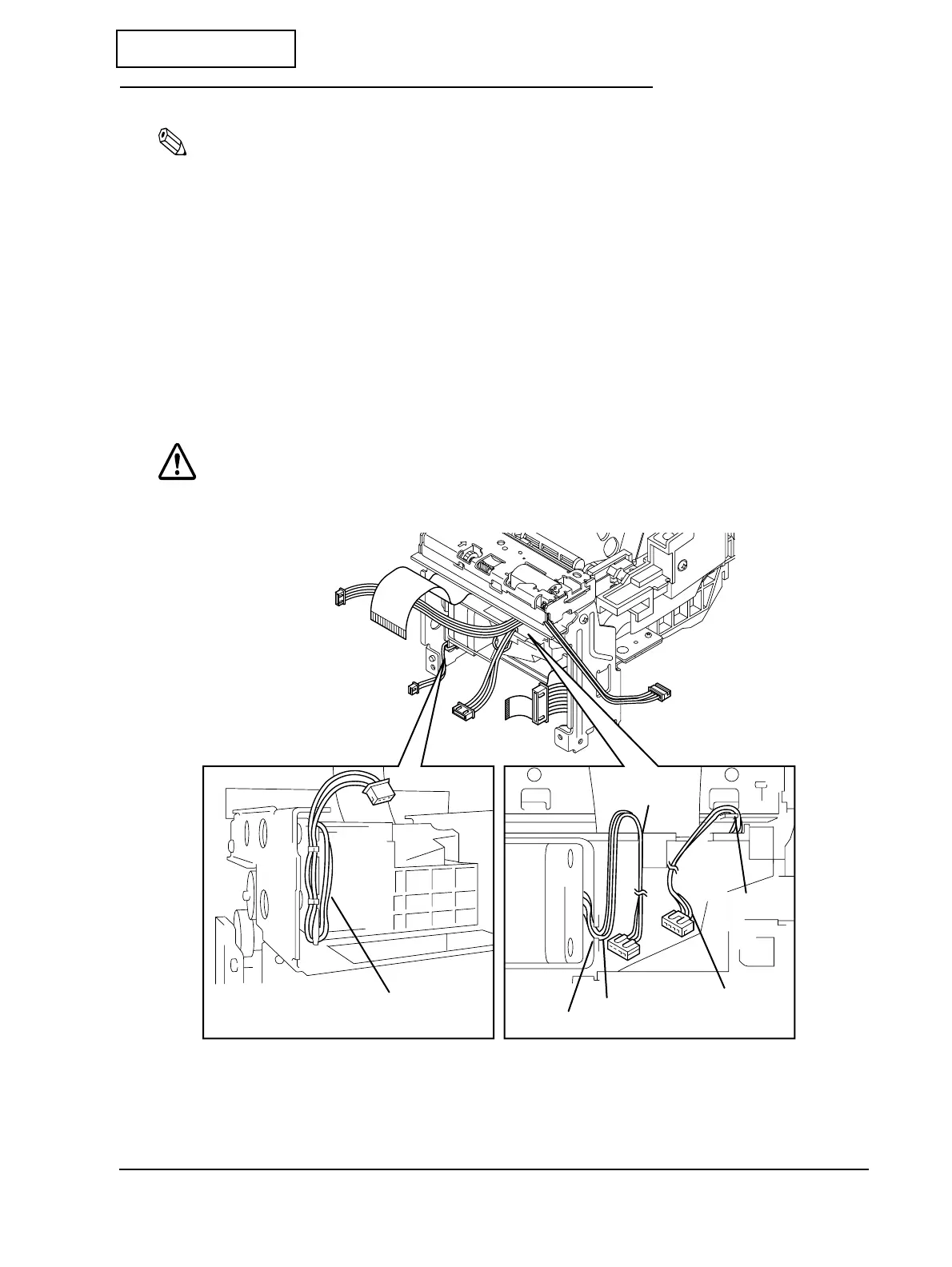

Cable Wiring
1. Remove the lead wire of the LED holder assembly from one hook.
2. Remove the lead wire of the paper feed motor from two hooks.
3. Remove the NE detector lead wire from the hook on the frame L assembly. When installing,
see the figure below and hook the NE detector lead wire onto the frame L assembly by
wrapping around it twice.
CAUTION:
When removing the lead wire, take precautions against damaging the cable.
Install in the reverse sequence of removal.
NE detector lead wire
Hook
Hook
Hook
Lead wire of the
Lead wire of the
LED holder assembly
paper feed motor
To Next Page
