Epson TM-L90 series User Manual

Rev.C Disassembly and Assembly 3-47
TM-L90 Service Manual
Confidential
Third Level
Platen Holder

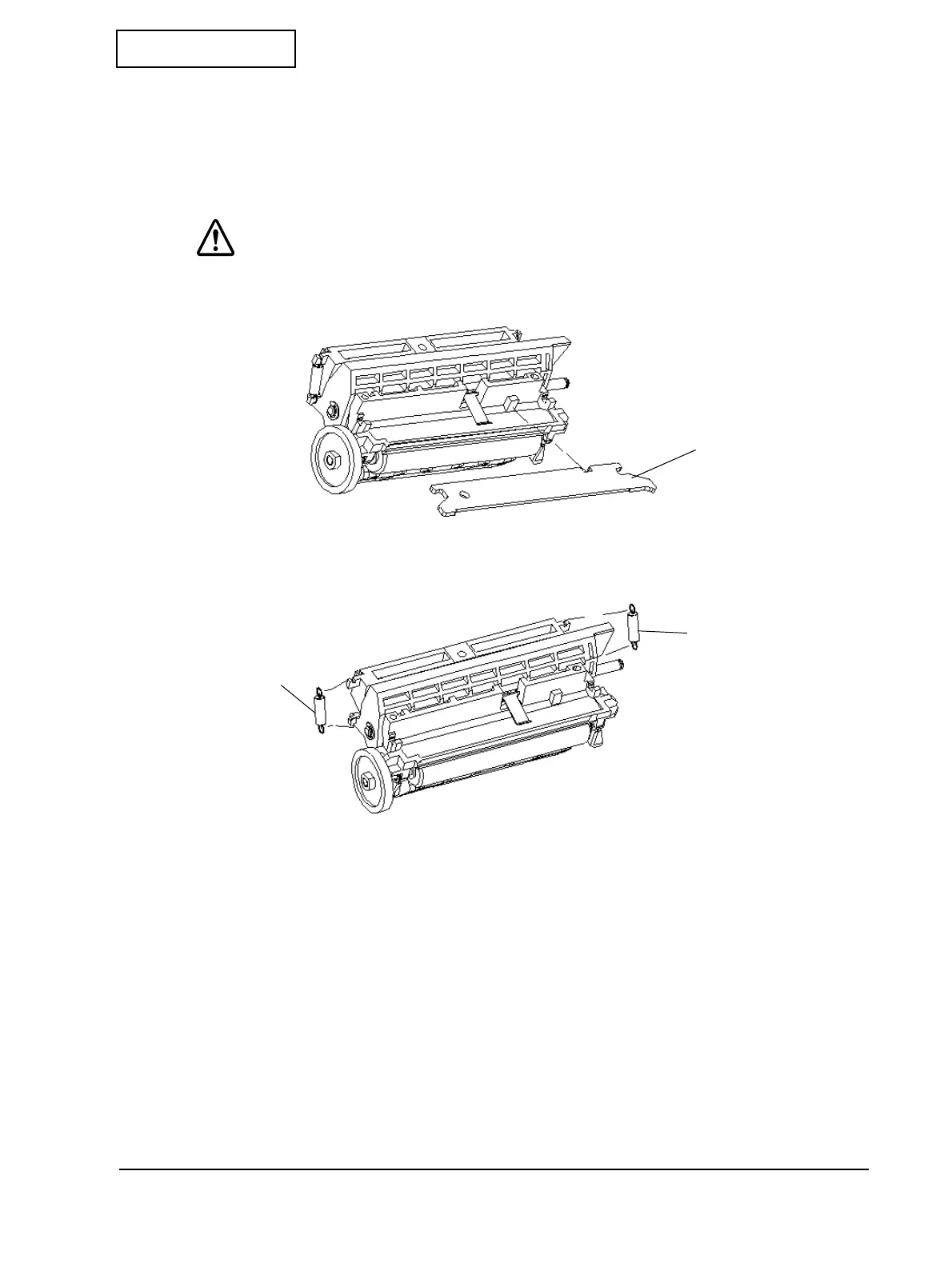

1. Remove the fixed blade from the platen holder by raising the blade. When installing the
fixed blade, see the drawing below to check the installation direction.
CAUTION:
The fixed blade is sharp. Handle it with care.
2. Remove the two tension plate springs.
Fixed blade
Tension plate spring
Tension plate spring
