E045 12 732786 - Rev.C
BUS-2EASY
J10
ENGLISH

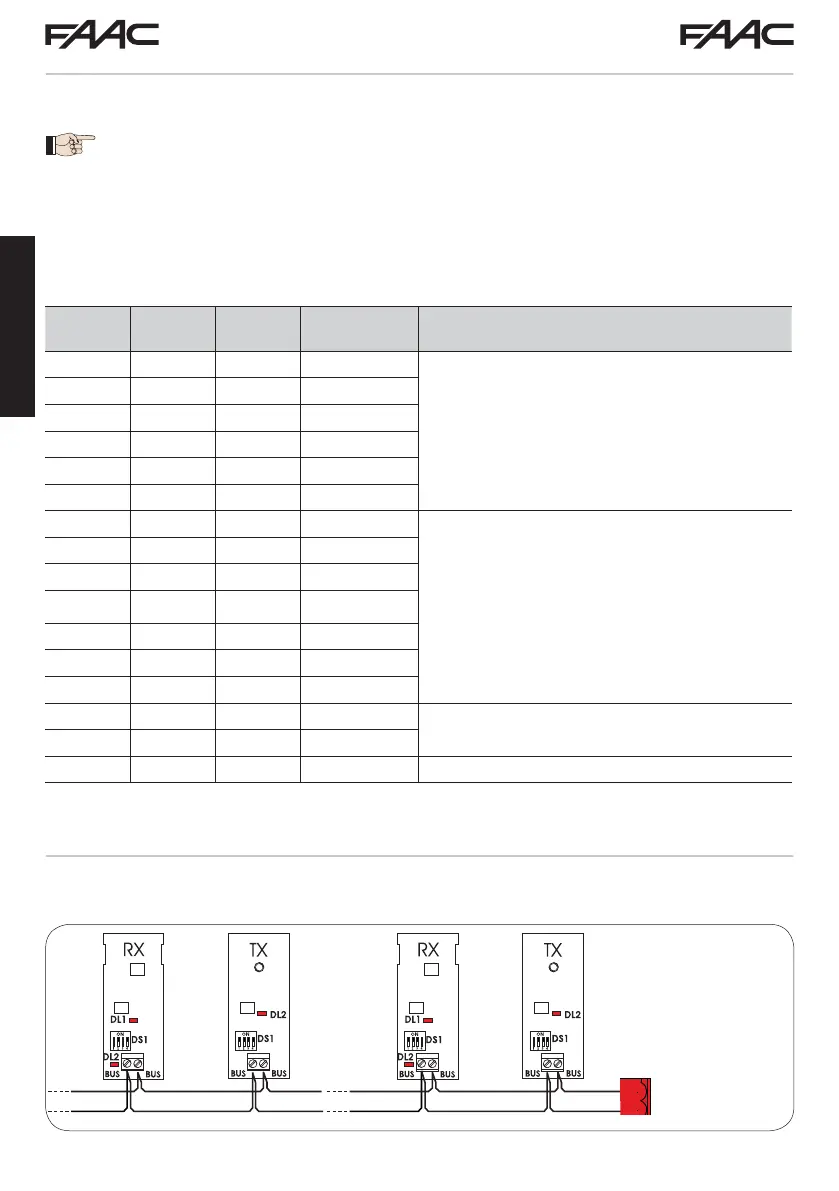

Address assignment of BUS-2EASY photocells
To assign the address to each pair of photocells, you must set the Dip-Switches (DS1) located on the
transmitter and corresponding receiver.
The transmitter and receiver of a pair of photocells must have the same
DIP-SWITCH setting.
Two or more pairs of photocells must not have the same DIP-SWITCH setting.
Dip1 Dip2 Dip3 Dip4 TYPE OF PHOTOCELLS
OFF OFF OFF OFF
OPENING (max 6 pairs)
OFF OFF OFF ON
OFF OFF ON OFF
OFF OFF ON ON
OFF ON ON OFF
OFF ON ON ON
ON OFF OFF OFF
CLOSING (max 7 pairs)
ON OFF OFF ON
ON OFF ON OFF
ON OFF ON ON
ON ON OFF OFF
ON ON OFF ON
ON ON ON OFF
OFF ON OFF OFF
OPENING and CLOSING (max 2 pairs)
OFF ON OFF ON
ON ON ON ON
OPEN PULSE (1 pair)
Connection of BUS-2EASY photocells
For connecting you have to use two cables without polarity (see the specific device instructions).
DL1
= Alignment
DL2
= BUS-2EASY status/
Power supply
DS1
= Programming
Dip-switches
