ENGLISH

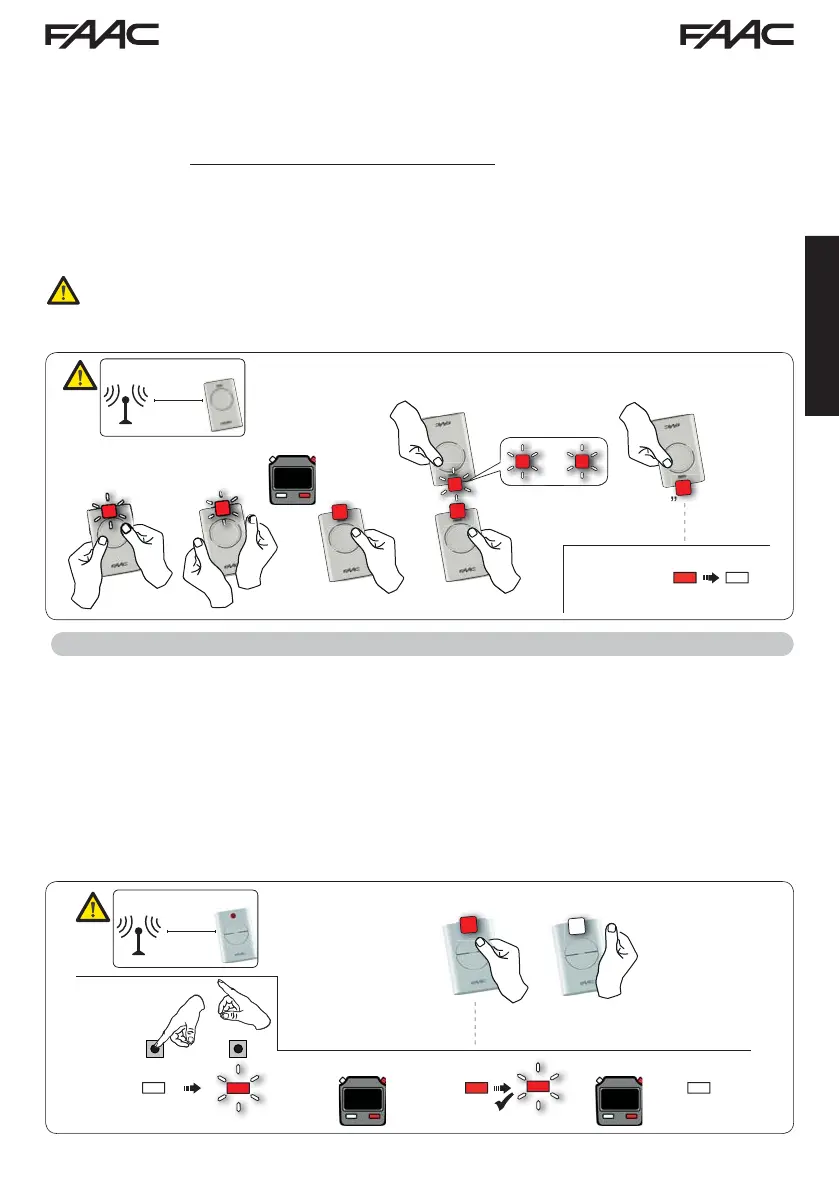

To enable other radio controls with the same system code, you must transfer the system code of
the memorised radio control button to the button corresponding to the radio control you wish to add:
1. Simultaneously press and hold P1 and P2 on the memorised radio control.
• The radio control LED will begin to flash.
2. Release both buttons.
3. Press and hold, while the radio control LED is still flashing, the memorised button (the radio control
LED will go on steady).
4. Bring the radio controls close together, press and hold the corresponding button of the radio control
you wish to add, and release only after the radio control LED flashes twice, indicating that memo-
risation has been completed.
5. Press the button of the memorised radio control twice in succession.
• The automated system will perform an opening cycle.
Ensure that there are no obstacles (by people or things) during the automated system
movement.
6.2 MEMORISING LC/RC RADIO CONTROLS (ONLY 433 MHZ)
1. Press and hold +/R1 - SW1 (OPEN A programming) or -/R2 - SW2 (OPEN B/CLOSE programming).
• After keeping the button pressed for about 5 sec, the corresponding radio LED (DL11 or DL12)
will begin to flash slowly for about 20 sec.
2. Release the button.
3. During radio LED flashing, press the desired button of the
LC/RC radio control.
• The corresponding LED on the board (DL11 or DL12) will go on steady for 1 second, indicating
that memorisation has been completed, and will begin flashing again for another 20 sec during
which you can memorise another radio control.
• When the 20 sec have elapsed, the LED will turn off, indicating that the procedure has been
completed.
4. To add other radio controls, repeat the procedure from point 1.
